Installation Procedure - Rear

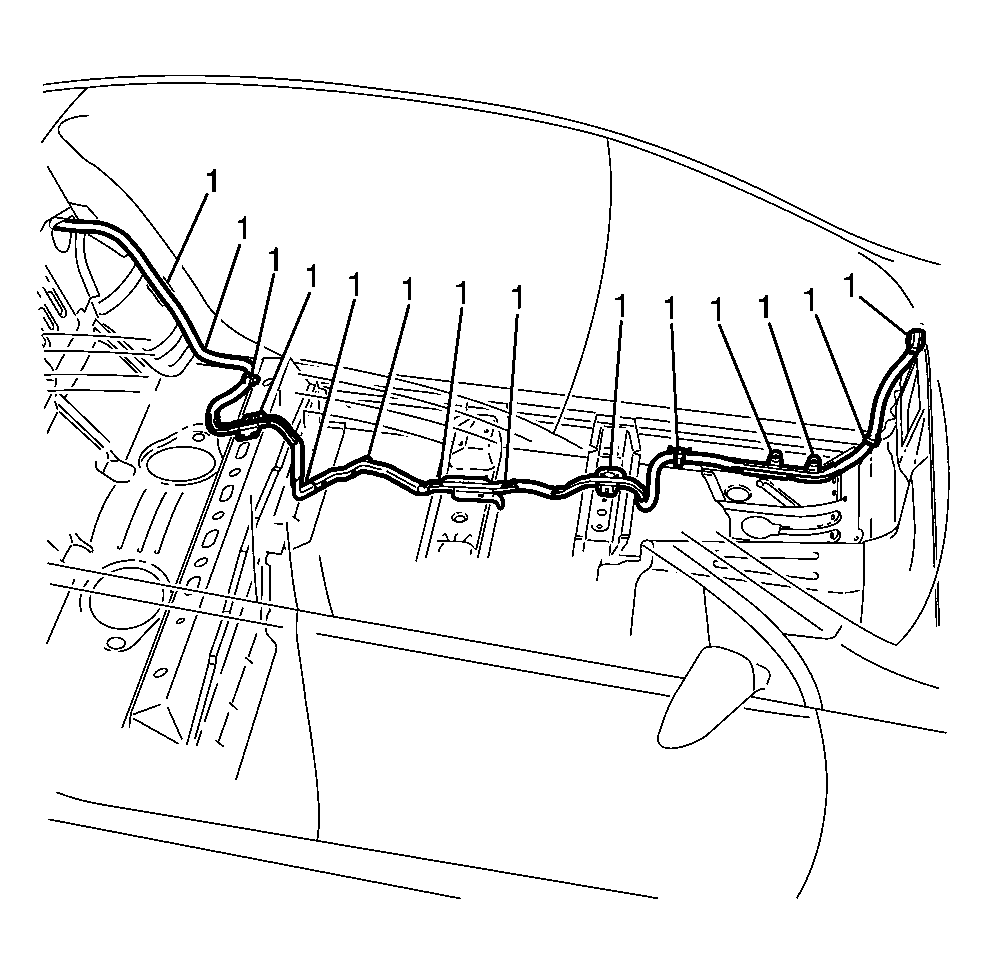

    Fig 1: Identifying Battery Positive Cable To Chassis Retaining Clips
    GM1949826Courtesy of GENERAL MOTORS CORP.
  1. Install the battery positive cable to the vehicle.
  2. Install the battery positive cable to chassis retaining clips (1).
    3. Fig 2: Identifying Battery Post & Protective Covers
    GM1949830Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the battery post retaining bolt (2)

    Tighten:  Tighten the post retaining bolt to 15 N.m (11 lb ft).

  4. Install the battery post protective cover (4).
  5. Attach the battery post cover (3).
    6. Fig 3: Identifying Battery Positive & Negative Cables
    GM1949822Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  6. Connect the battery positive cable (2) to the battery.
  7. Connect the battery negative cable (1). Refer to Battery Negative Cable Disconnection and Connection .
  8. Install the rear floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement
  9. Install the rear quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
  10. Install the left front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
  11. Install the rear seat back. Refer to Rear Seat Back Cushion Replacement .
  12. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
  13. Install the front seat. Refer to Front Seat Replacement - Bucket .
  14. Install the cargo area center carpet. Refer to Rear Compartment Floor Panel Carpet Replacement
  15. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
