Ground Distribution Schematics

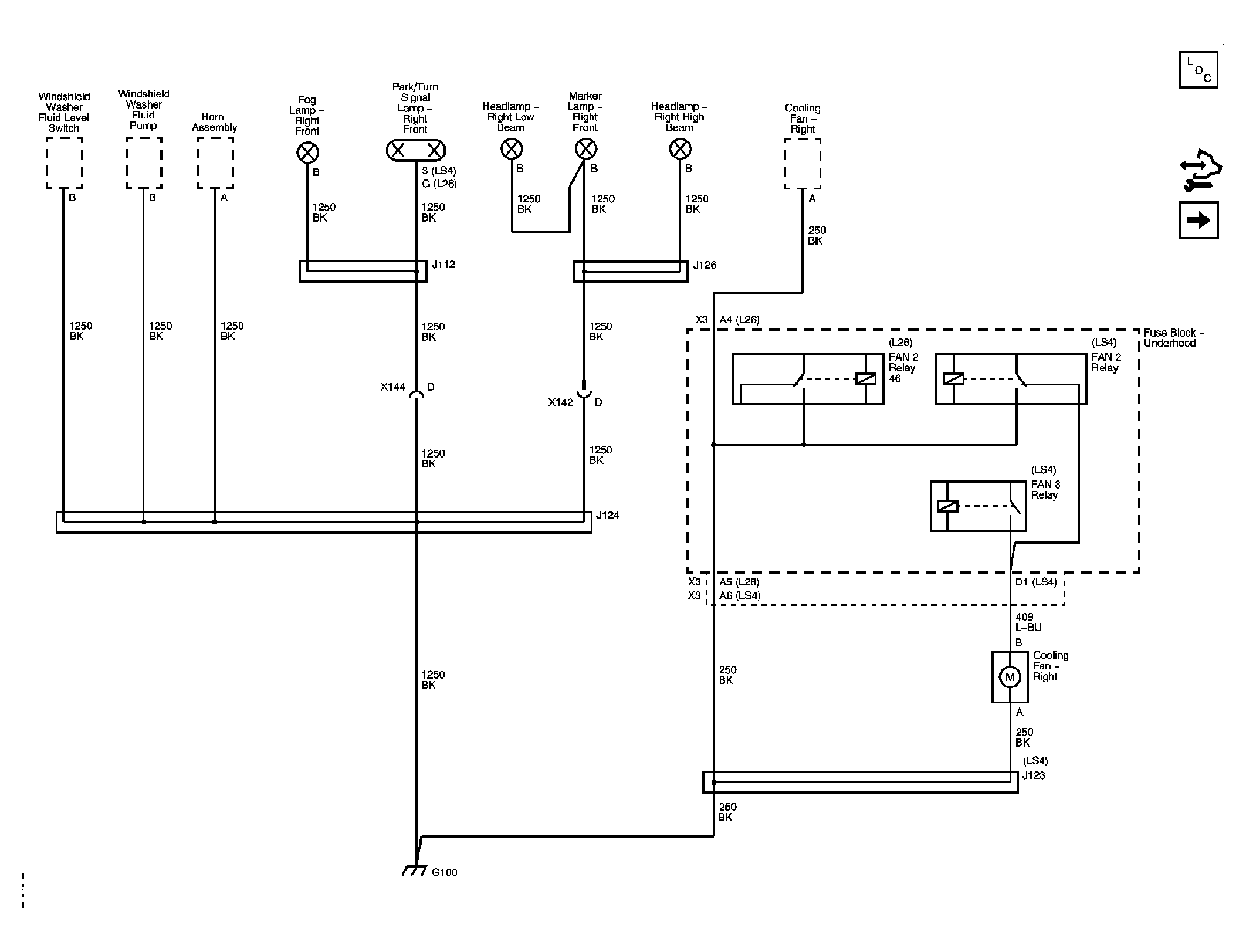

Fig 1: G100

Courtesy of GENERAL MOTORS CORP.

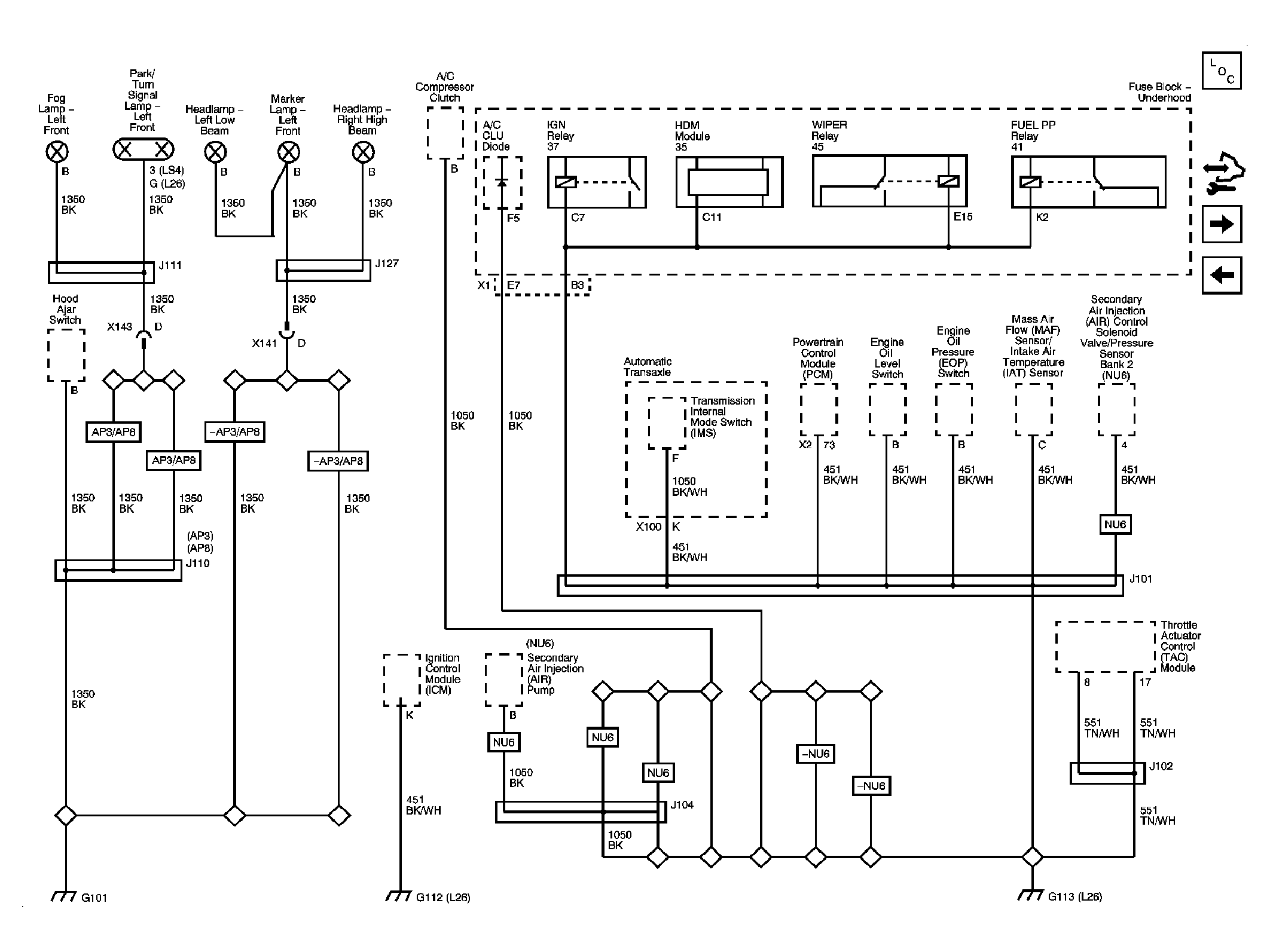

Fig 2: G101, G112 and G113 - L26

Courtesy of GENERAL MOTORS CORP.

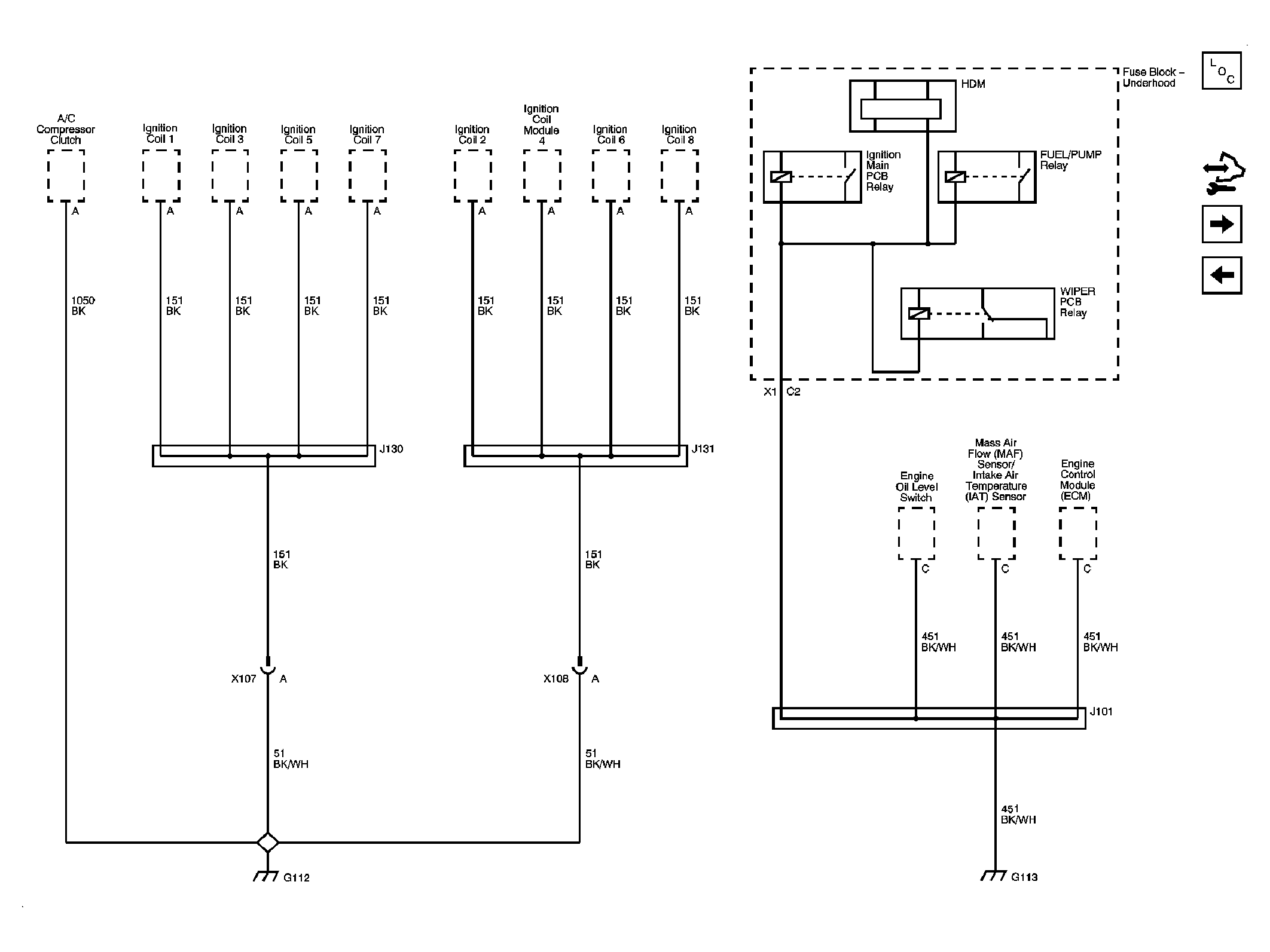

Fig 3: G112 and G113 - LS4

Courtesy of GENERAL MOTORS CORP.

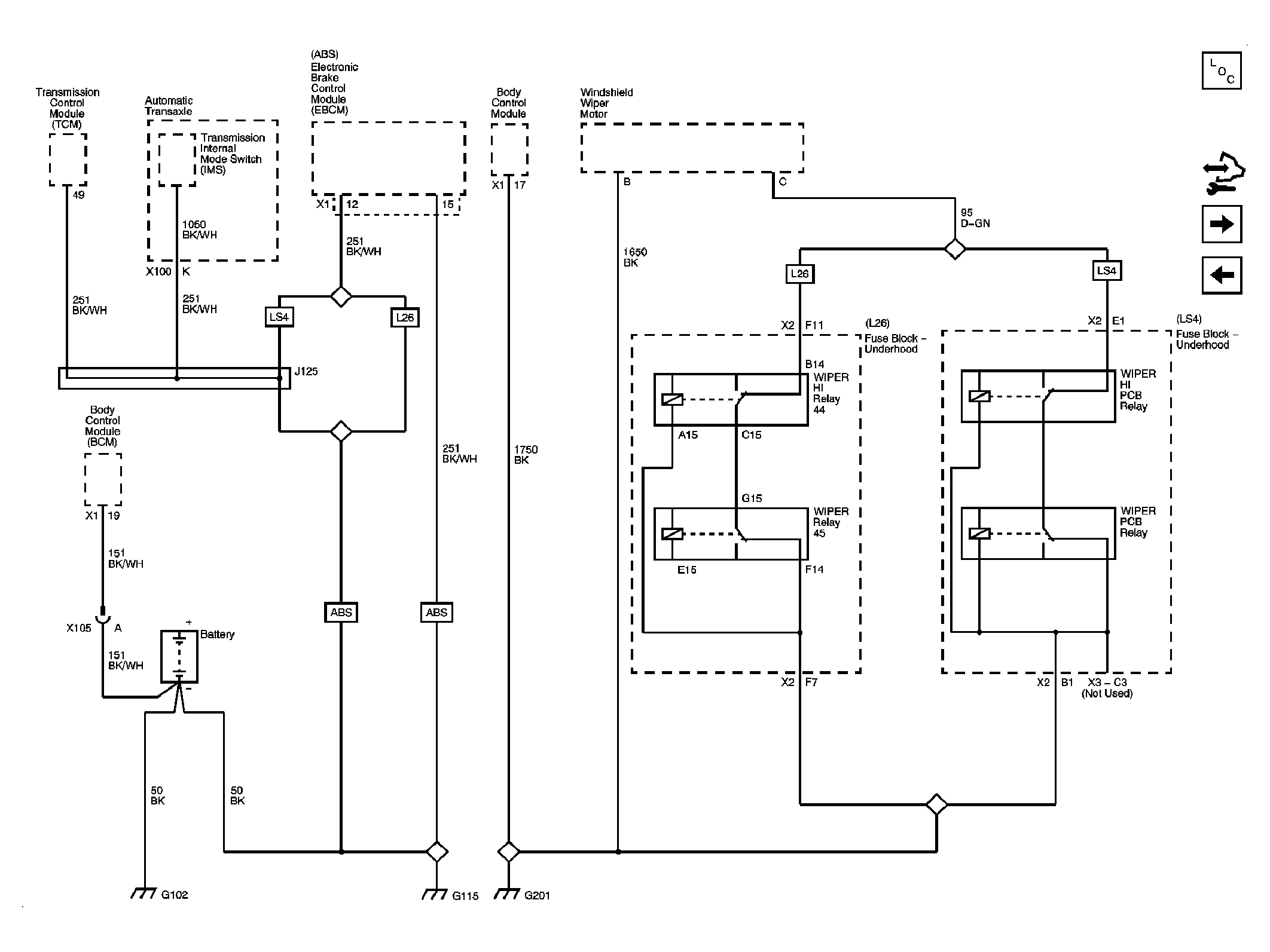

Fig 4: G102, G115 and G201

Courtesy of GENERAL MOTORS CORP.

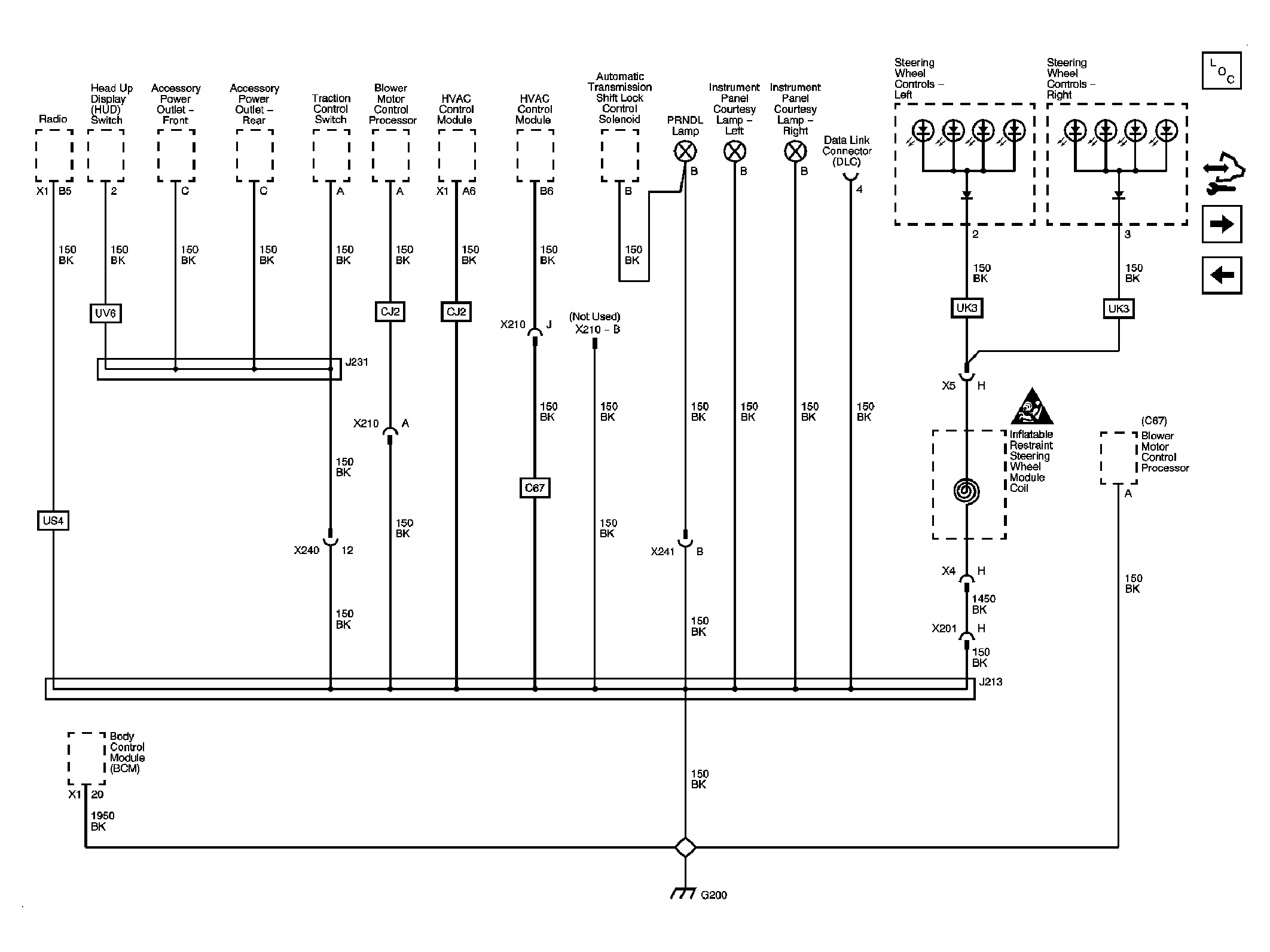

Fig 5: G200

Courtesy of GENERAL MOTORS CORP.

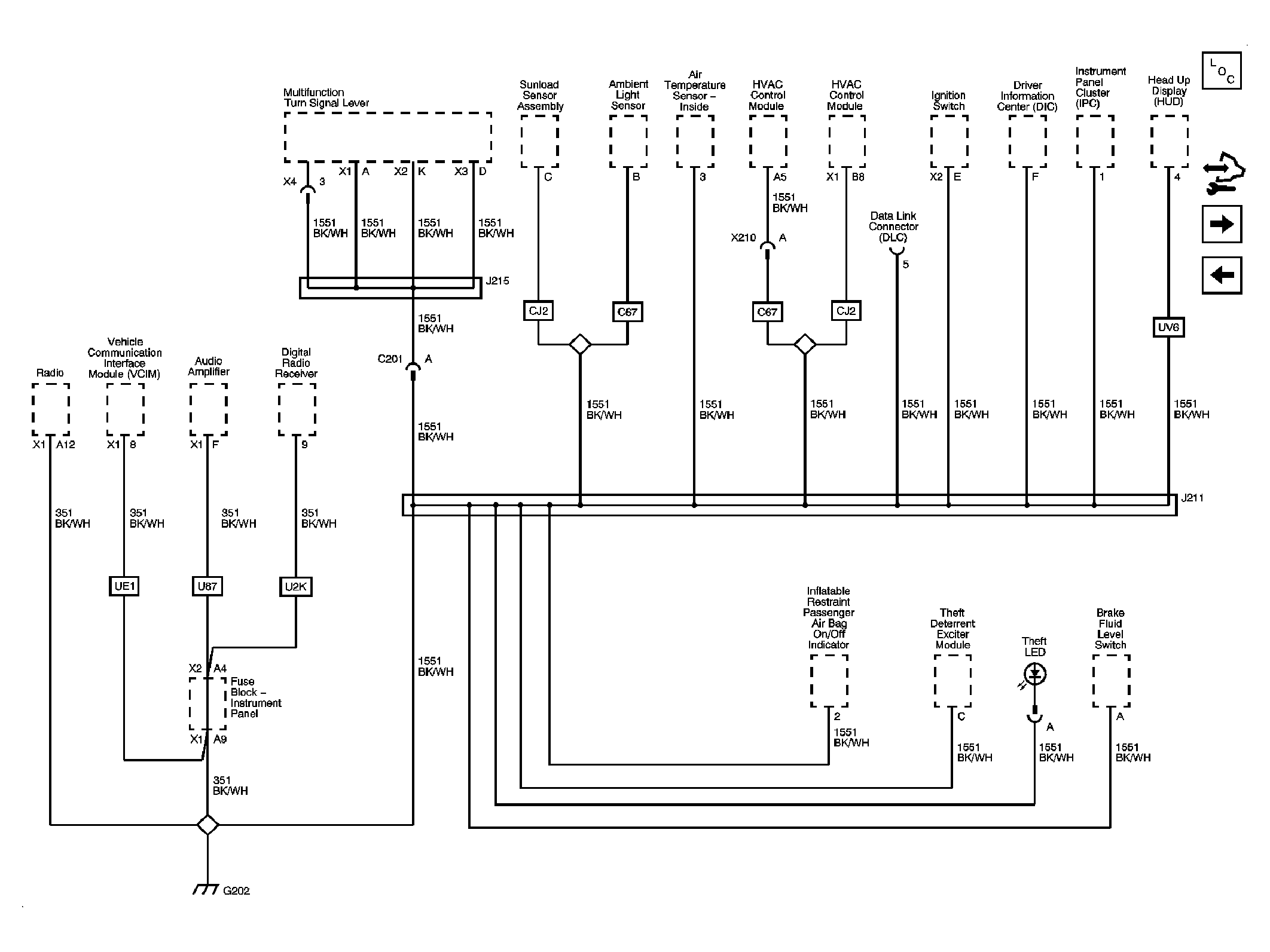

Fig 6: G202

Courtesy of GENERAL MOTORS CORP.

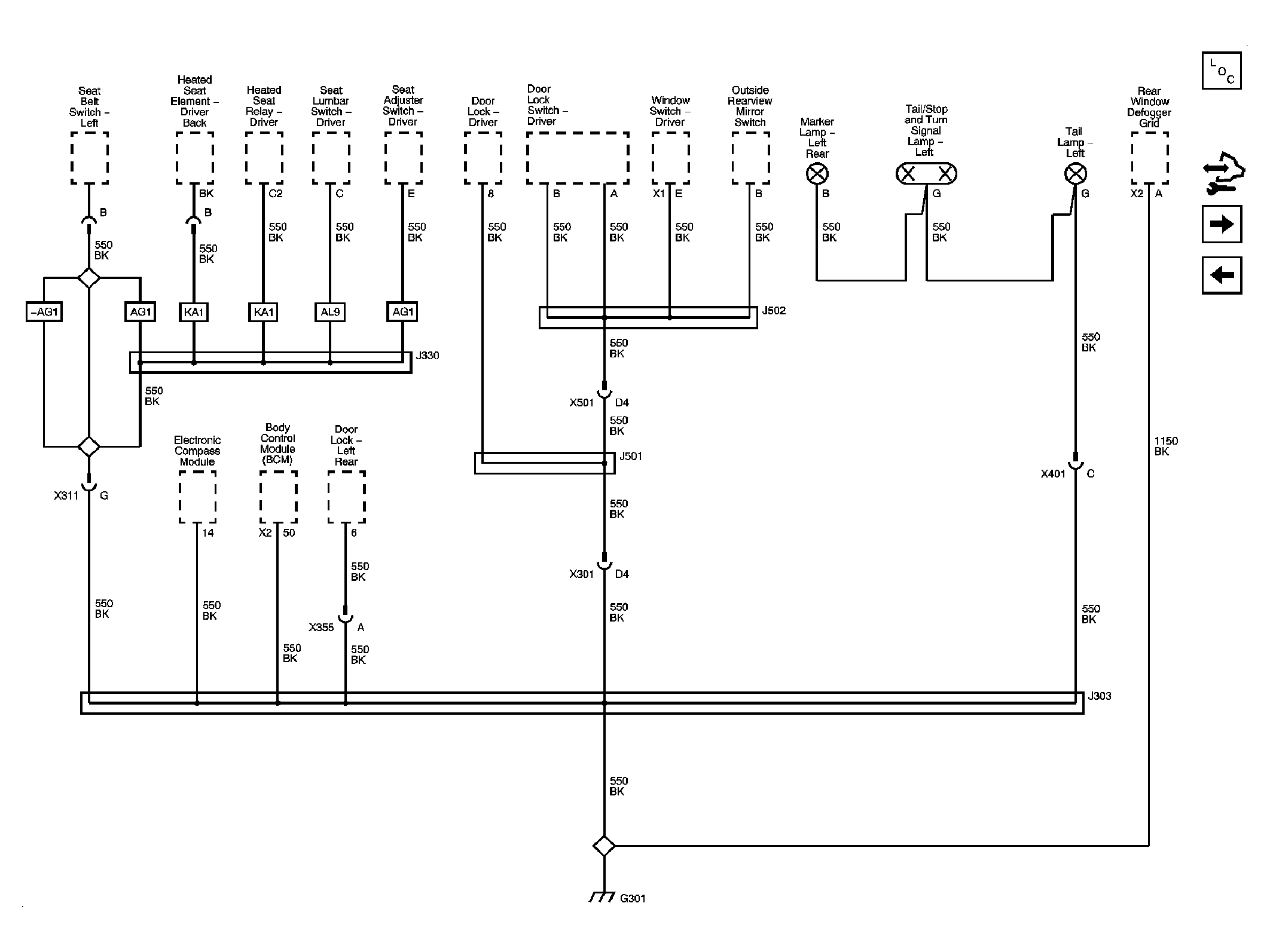

Fig 7: G301

Courtesy of GENERAL MOTORS CORP.

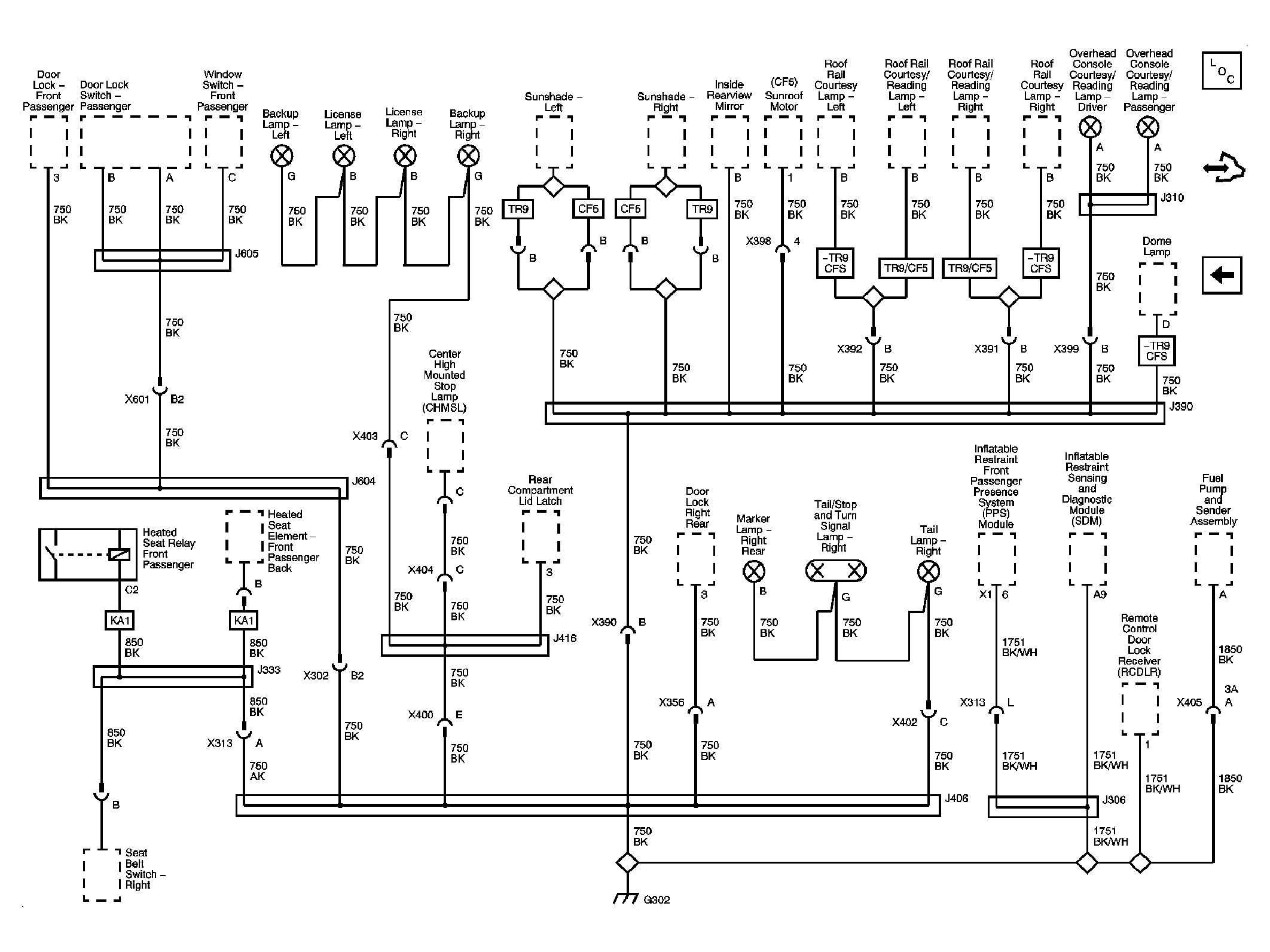

Fig 8: G302

Courtesy of GENERAL MOTORS CORP.
