Instrument Panel Inflatable Restraint Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

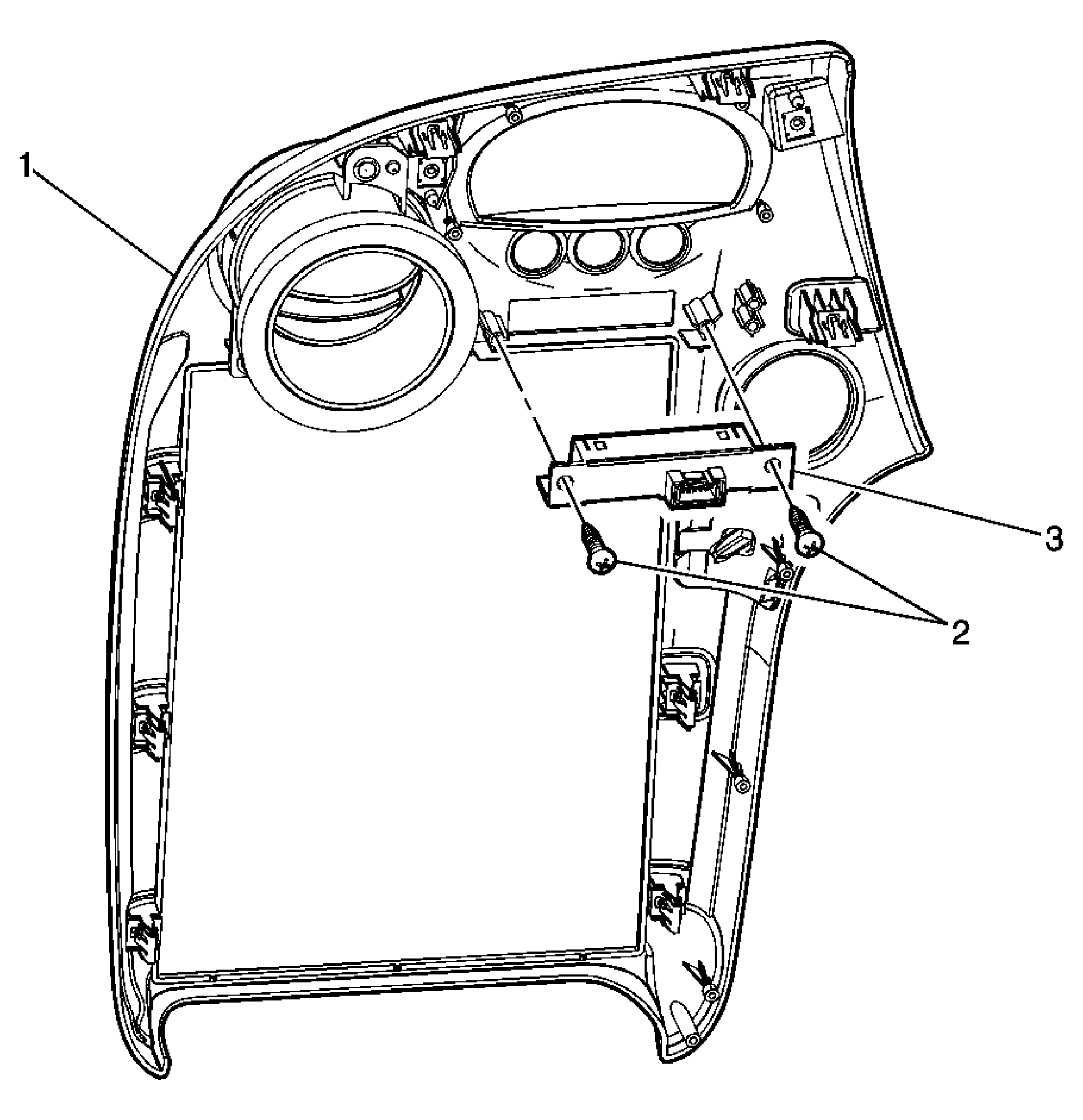

Fig 1: I/P Inflatable Restraint Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Accessory Trim Panel Refer to Instrument Panel Accessory Trim Plate Replacement .
2	Inflatable Restraint Instrument Panel Module Indicator Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Inflatable Restraint Instrument Panel Module Indicator Assembly
