Lighting Systems Component Views

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Ambient Light Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Upper Instrument Panel

Fig 2: Center High Mounted Stop Lamp (CHMSL) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Stop Lamps

Fig 3: Cigar Lighter Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter Rear Retainer
2	Cigar Element Housing
3	Cigar Element

Fig 4: DRL Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DRL Control Module
2	DRL Control Module Label
3	DRL Control Module Connector

Fig 5: Locating Flasher Relay

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Flasher Relay

Fig 6: Hazard Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch

Fig 7: I/P Lamp Dimmer Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Lamp Dimmer

Fig 8: Rear License Plate Lamps Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Plate Lamps
2	Liftgate

Fig 9: Stop Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	Stop Lamp Switch Lock Nut
3	Brake Pedal Bracket

Fig 10: Turn Signal/Headlamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Headlamp Switch
2	Turn Signal Switch Retaining Tab

Fig 11: Backup Lamp Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
2	Park Neutral Position Switch

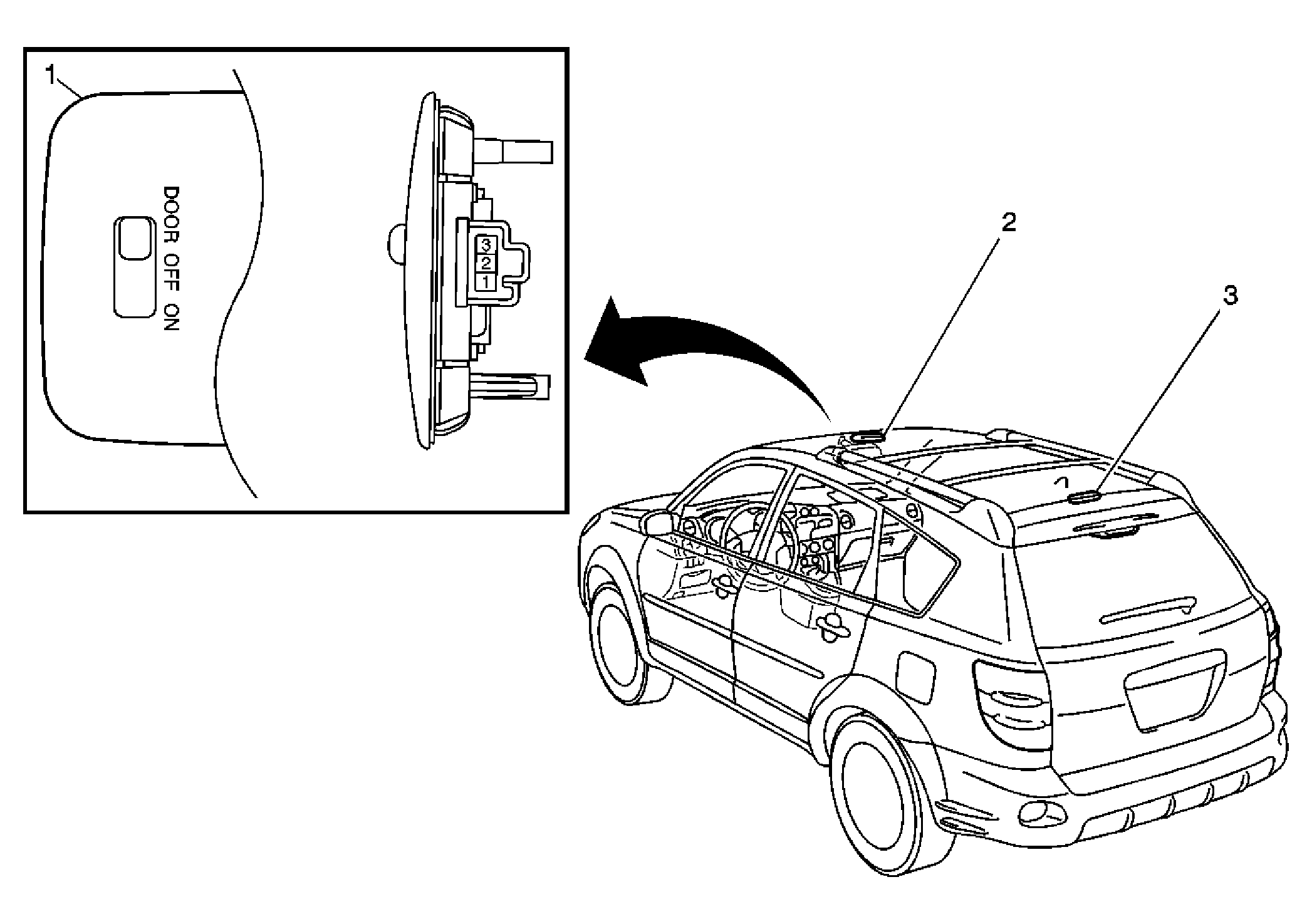

Fig 12: Dome Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Dome Lamp Switch
2	Front Dome Lamp
3	Rear Dome Lamp
