Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

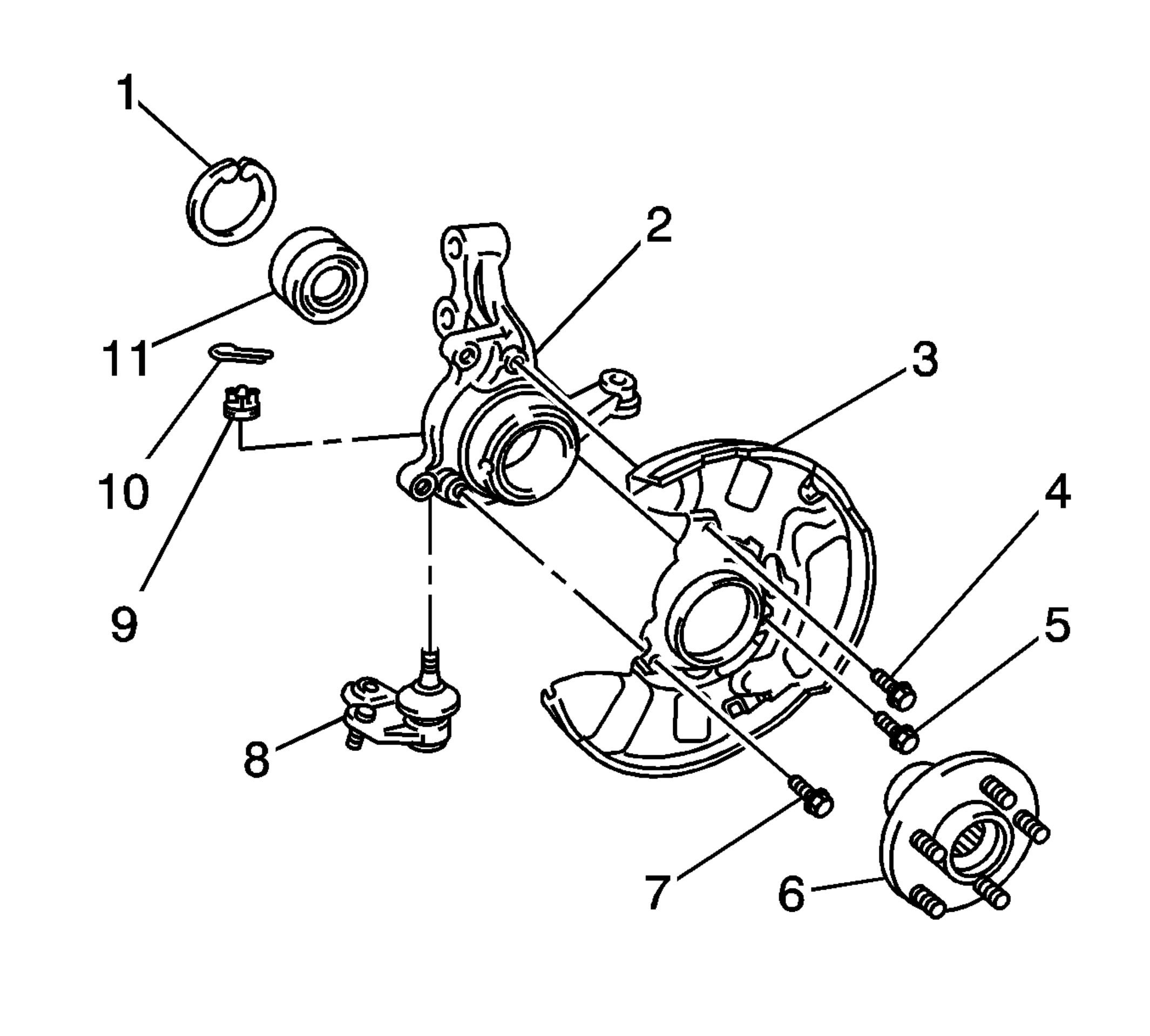

Fig 1: Brake Splash Shield Components

Courtesy of GENERAL MOTORS CORP.

Install the brake shield (3) to the knuckle (2).

NOTE: Refer to Fastener Notice .

Install the 3 bolts (4,5,7).
Tighten: Tighten the bolts to 8.3 N.m (73.46 lb in).
Install the front wheel hub and bearing. Refer to Front Wheel Hub, Bearing, and Seal Replacement .
