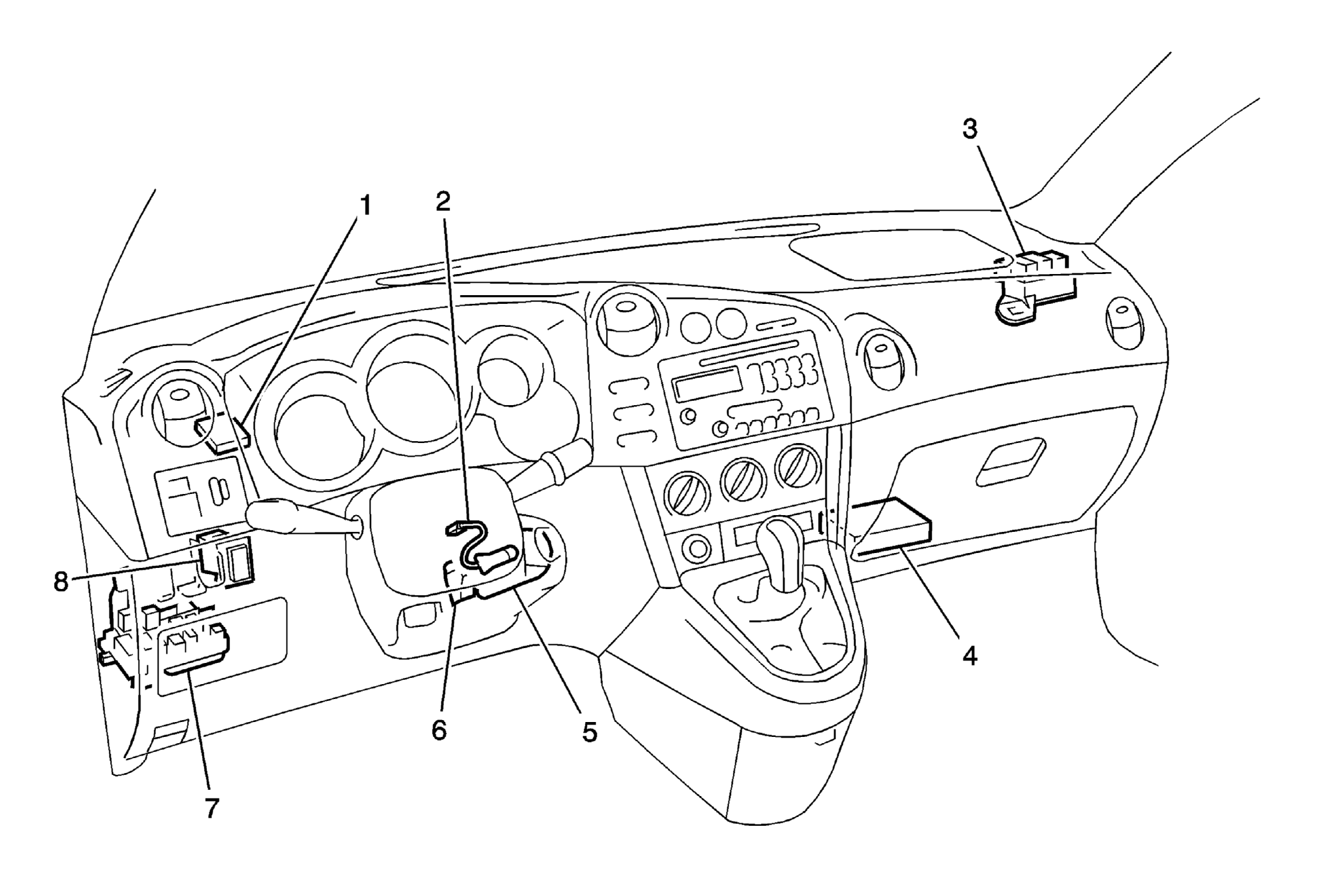

Immobilizer Component Views
WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Immobilizer Module |
| 2 |
Unlock Warning Switch |
| 3 |
Junction Block I/P RH |
| 4 |
Engine Control Module |
| 5 |
Key Transponder |
| 6 |
Ignition Switch |
| 7 |
Fuse Block I/P |
| 8 |
Security Indicator |
