Component Connector End Views: Generator

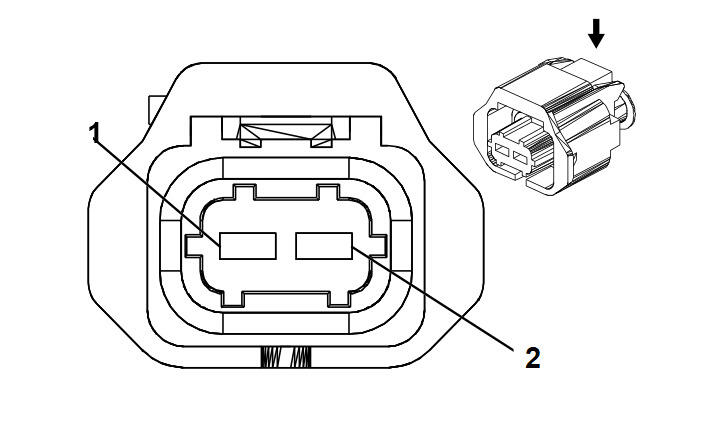

Fig 1: Generator Connector End View

Courtesy of GENERAL MOTORS CORP.

Generator

Pin	Wire Color	Circuit No.	Function
1	0.35 RD	225	Generator Turn On Signal
2	0.35 GY	23	Generator Field Duty Cycle Signal

Connector Part Information  OEM: 15397337 Service: 88988744 Description: 2-Way F Power Timer Series (BK)

Terminal Part Information  Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit
