Radio/Navigation System Schematics

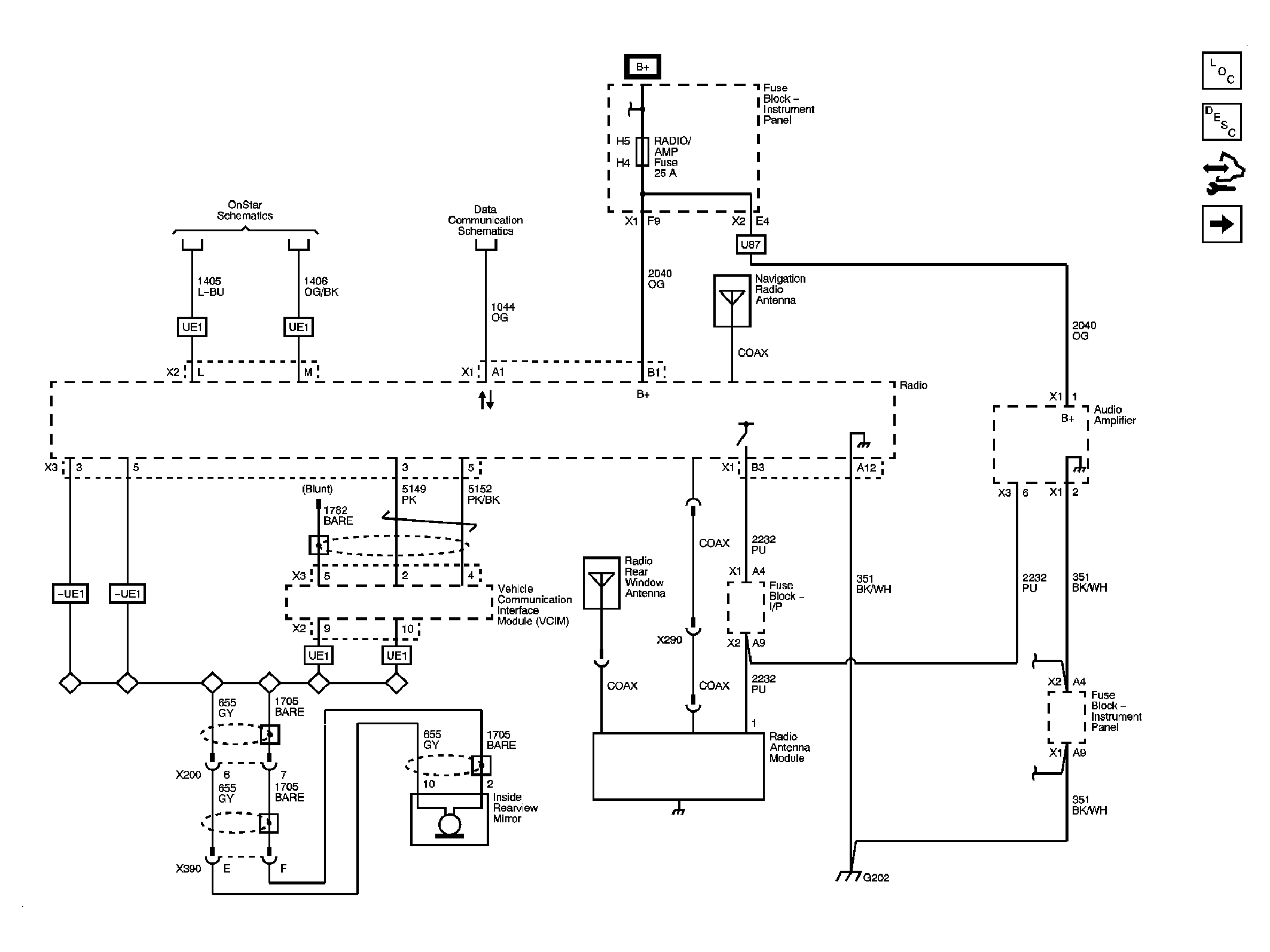

Fig 1: Power, Ground, and References Schematic

Courtesy of GENERAL MOTORS CORP.

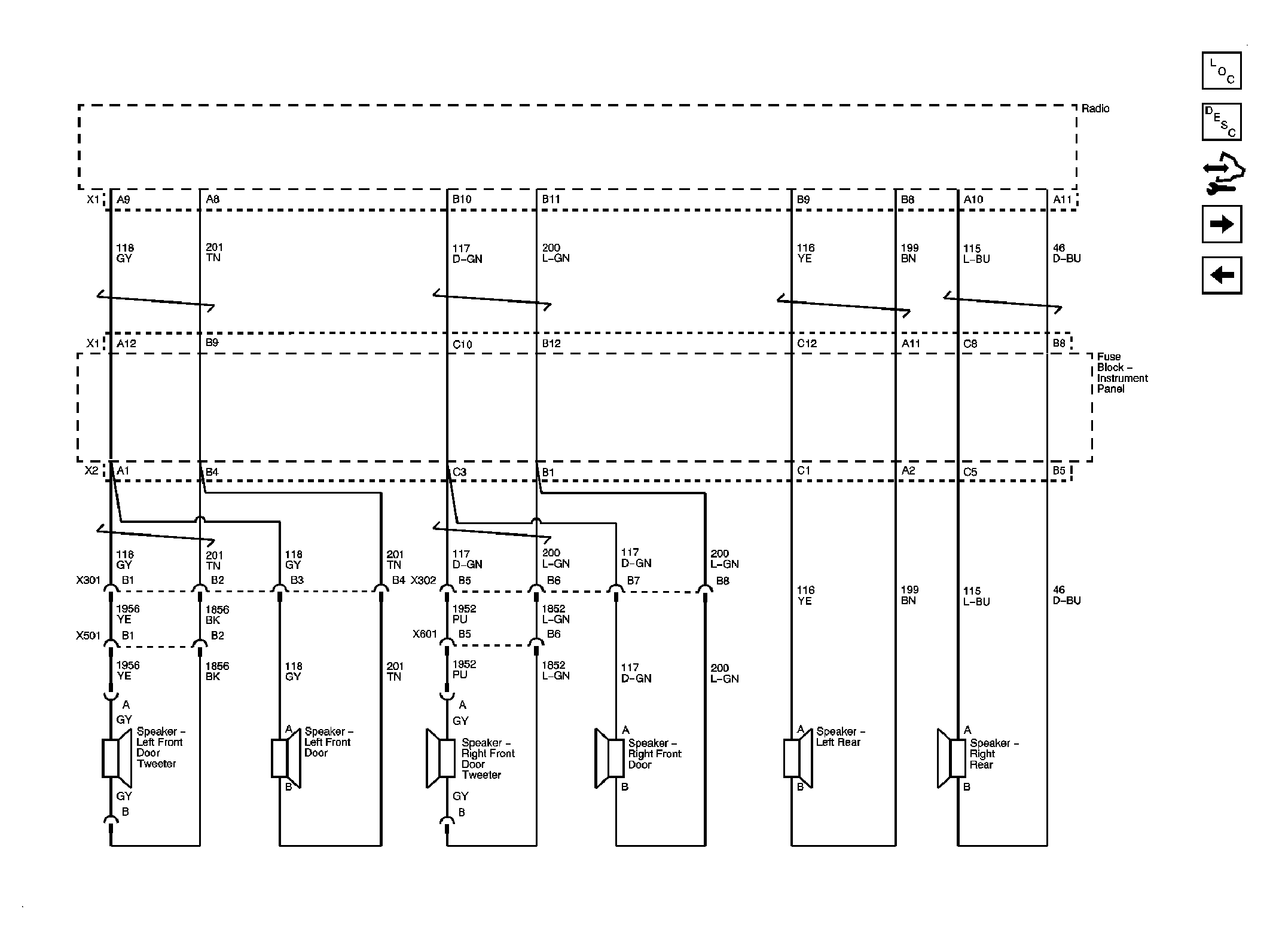

Fig 2: Radio to Speakers Schematic - UW6

Courtesy of GENERAL MOTORS CORP.

Fig 3: Audio Signal Communication Schematic - U87

Courtesy of GENERAL MOTORS CORP.

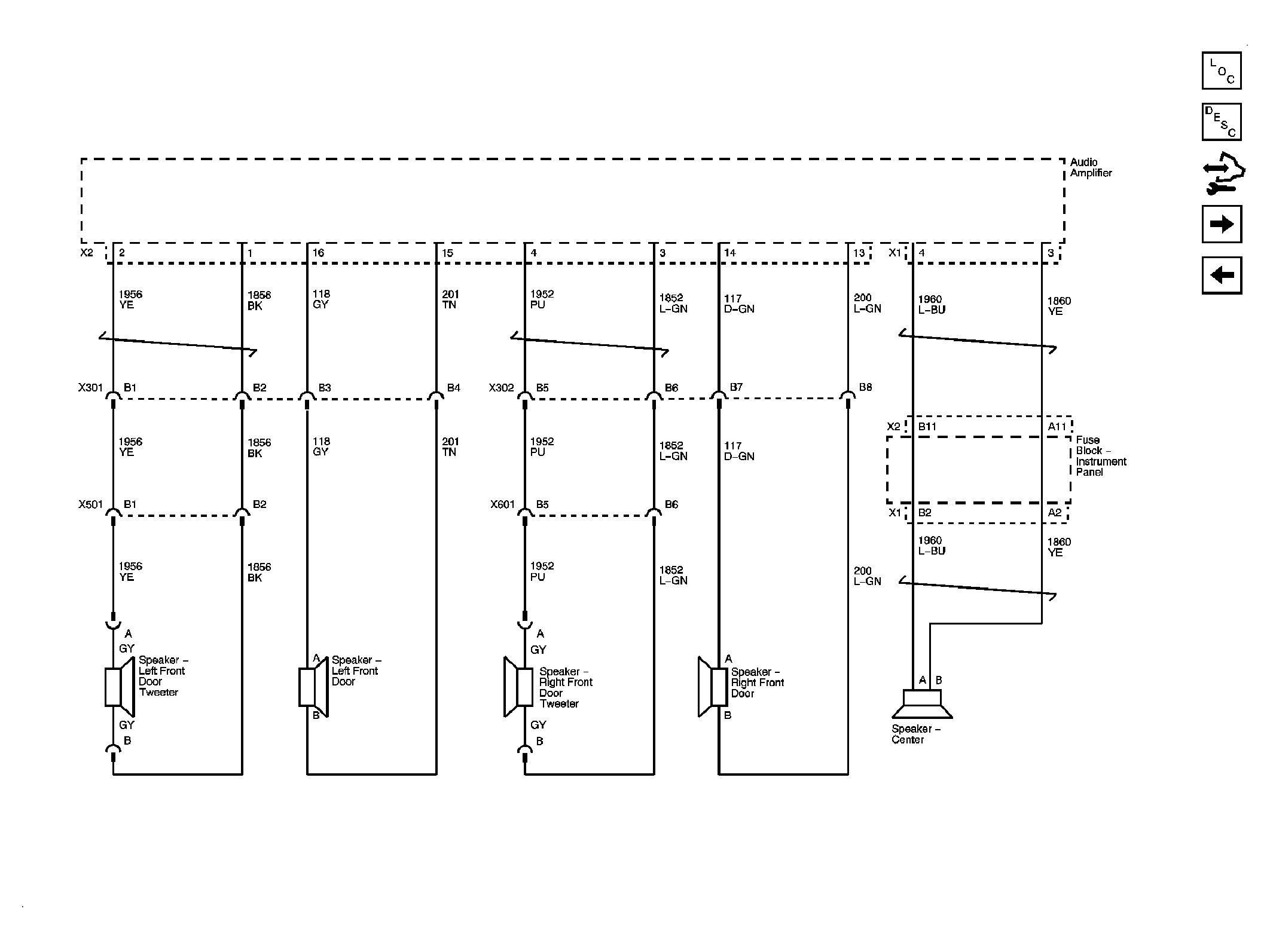

Fig 4: Speakers - Front Schematic - U87

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers - Rear Schematic - U87

Courtesy of GENERAL MOTORS CORP.

Fig 6: Satellite Radio Schematic - U2K

Courtesy of GENERAL MOTORS CORP.
