Steering Wheel Secondary/Configurable Control Schematics

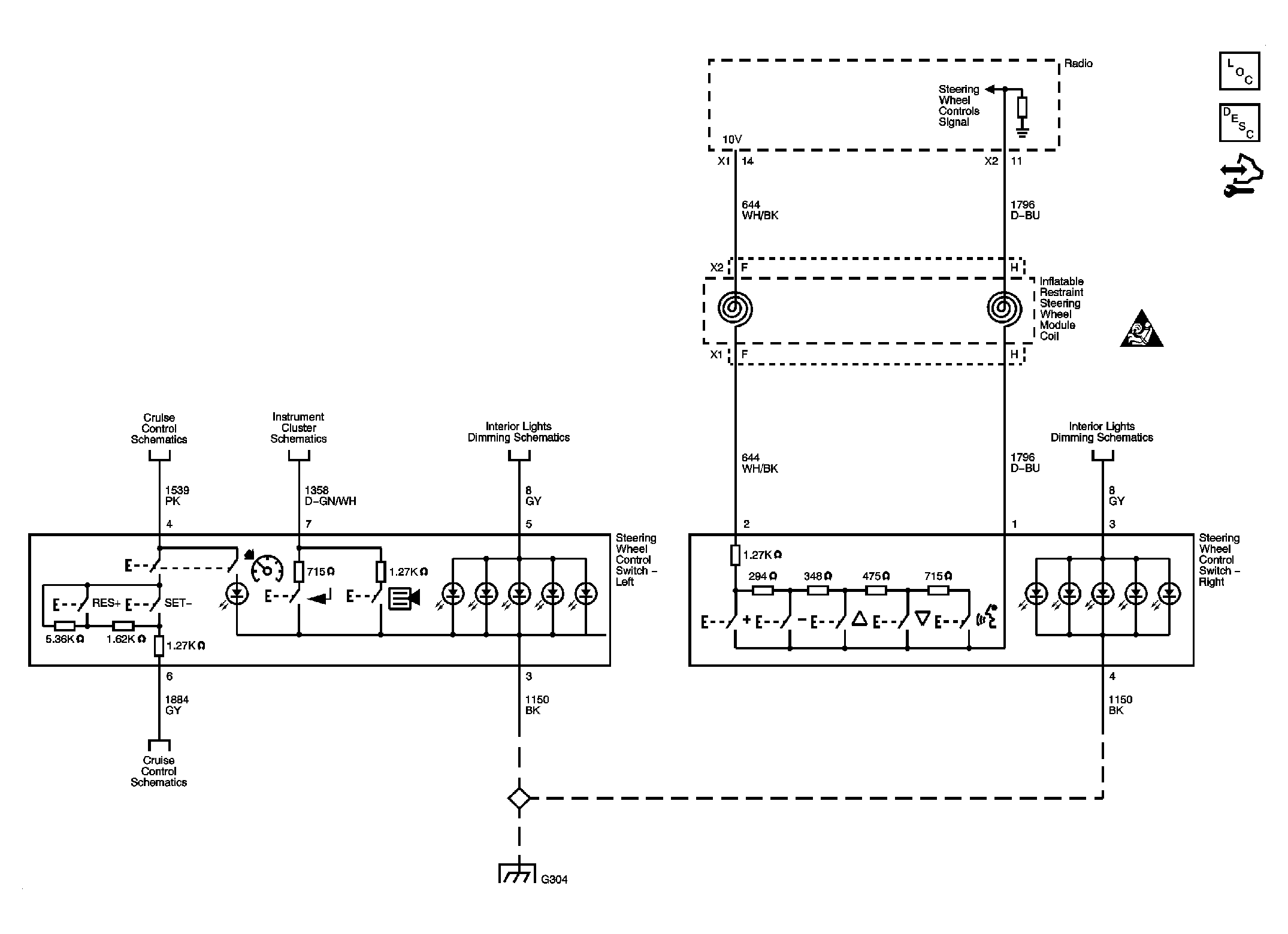

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
GM1914224Courtesy of GENERAL MOTORS CORP.
