Antenna Cable Replacement
WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

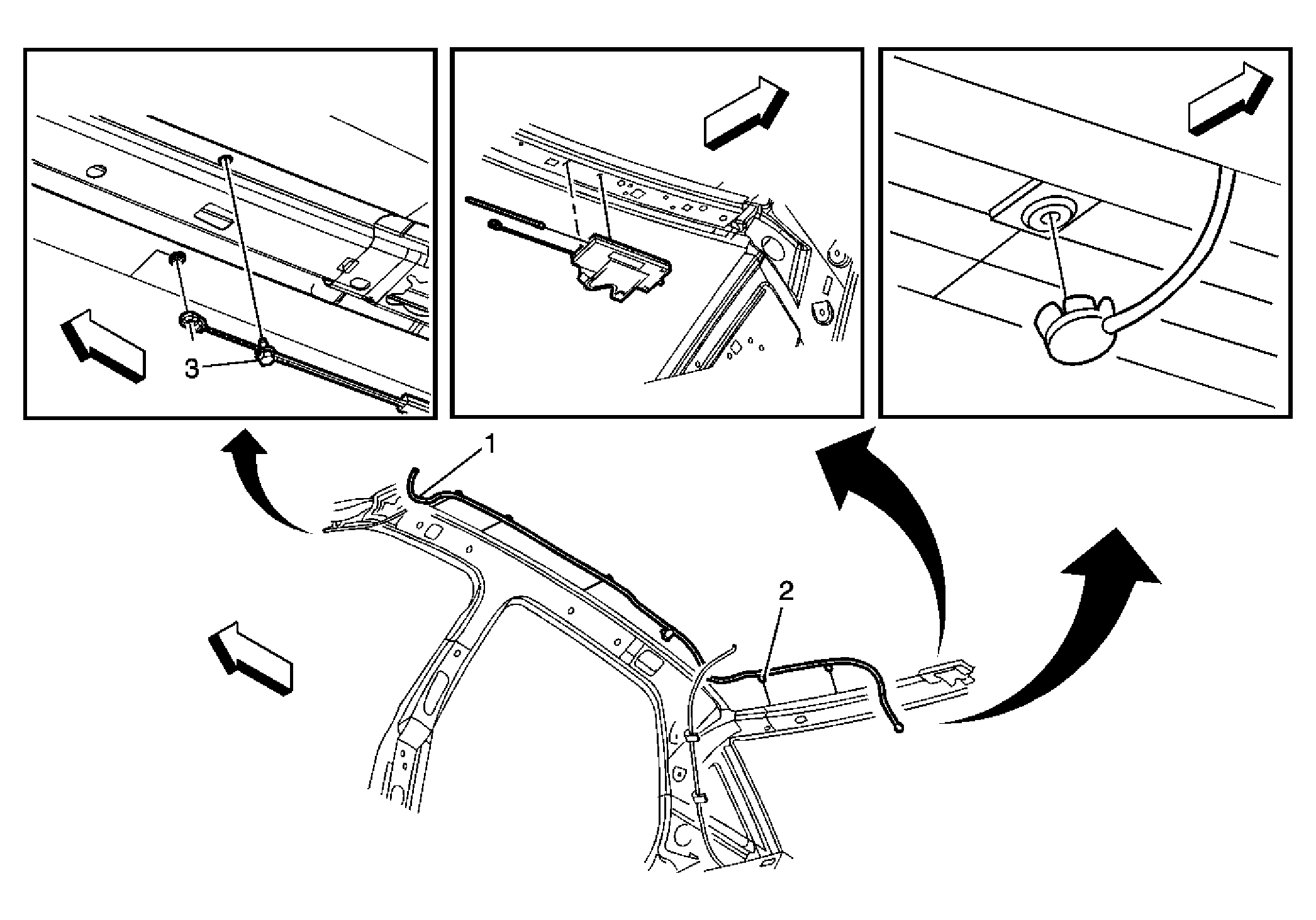

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Cable Assembly |
| 2 | Antenna Cable Clip |
| 3 | Antenna Cable Bolt - Front
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (25 lb in) |
