Power Steering Pump Belt Replacement

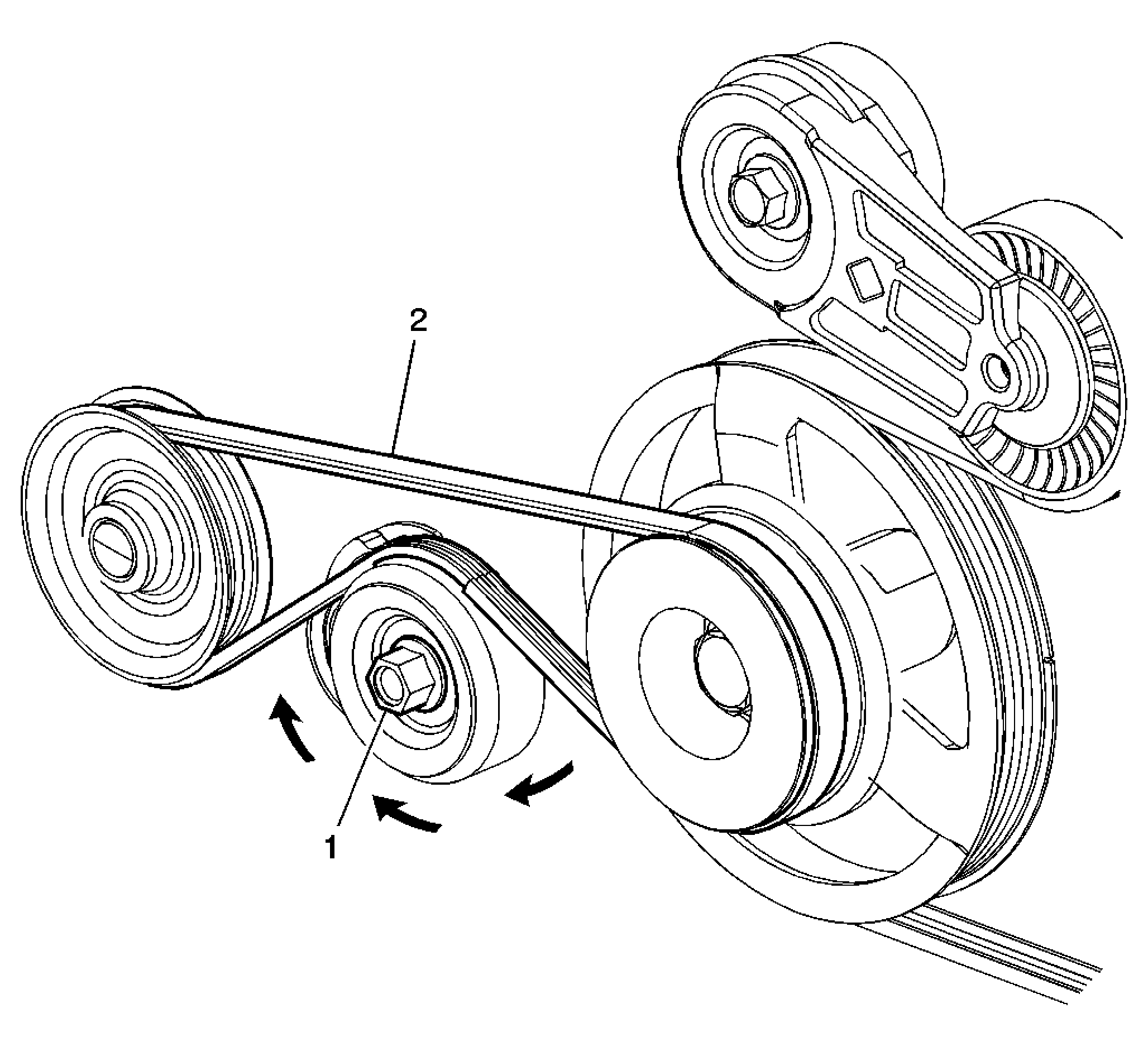

Fig 1: View Of Power Steering Pump Drive Belt & Tensioner Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Power Steering Pump Belt Tensioner Pulley Procedure:  Rotate the power steering pump belt tensioner pulley clockwise to release the tension on the power steering pump drive belt.
2	Power Steering Pump Drive Belt
