Ignition Lock Cylinder Case Replacement

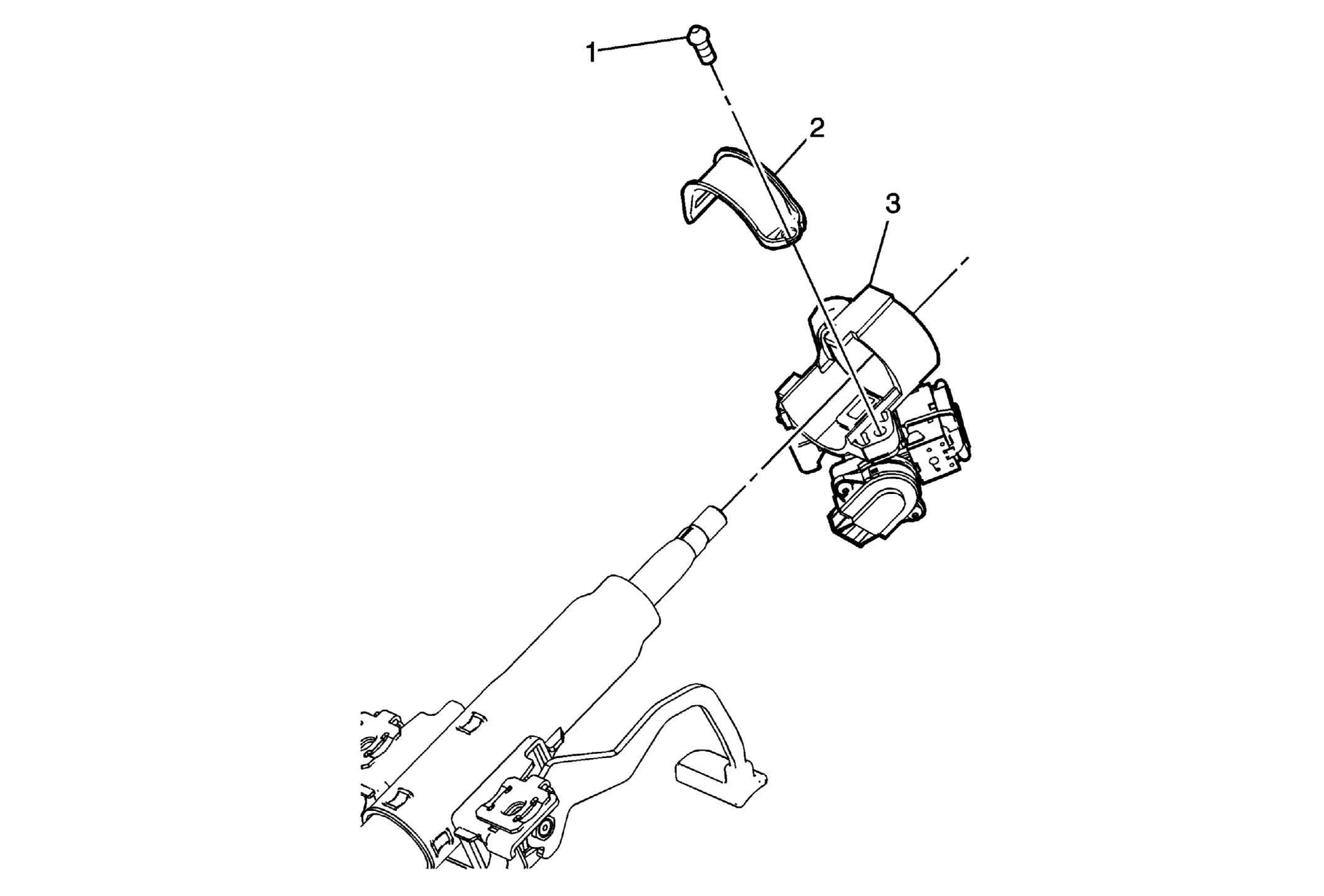

Fig 1: View Of Ignition Lock Cylinder Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the multifunction turn signal switch housing. Refer to Multifunction Turn Signal Switch Housing Replacement .
1	Ignition Lock Cylinder Case Bolt NOTE: Refer to Fastener Notice . Procedure Use a small chisel and hammer to back out the ignition lock cylinder case bolt counterclockwise and remove it. When installing a new ignition lock cylinder case bolt continue to tighten it until the head shears off.
2	Ignition Lock Cylinder Case Strap
3	Ignition Lock Cylinder Case Procedure: Disconnect any electrical connectors as needed. Tip: The ignition lock cylinder must be turned to the run position in order to remove and/or install the ignition lock cylinder case.
