Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

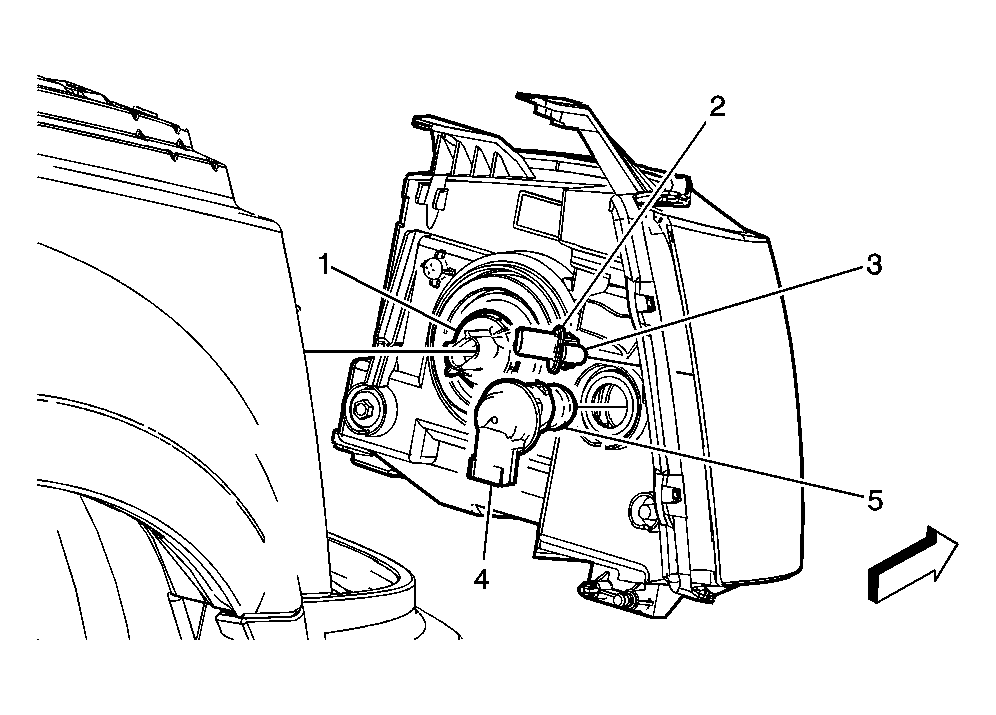

Fig 1: Identifying Headlamp Bulbs

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove either the LF or RF side of the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Equinox) or Fascia Replacement - Front Bumper (Torrent) . Remove headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement (Equinox) or Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement (Torrent) .
1	CAUTION: Refer to Halogen Bulb Caution . Headlamp Bulb Socket (High Lo Beam)Tip: Disconnect the electrical connector and twist the bulb socket counter clockwise to remove the bulb.
2	Side Marker Lamp Socket Tip: Turn the socket counter-clockwise in order to remove.
3	Side Marker Lamp Socket Bulb Tip: Pull the bulb straight from the lamp socket.
4	Park Turn Directional Lamp Socket Tip: Turn the socket counter-clockwise in order to remove.
5	Park Turn Directional Lamp Socket Bulb Tip: Remove the bulb by pulling the bulb straight out of the socket.
