Transmission Floor Shift Control Indicator Lamp Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

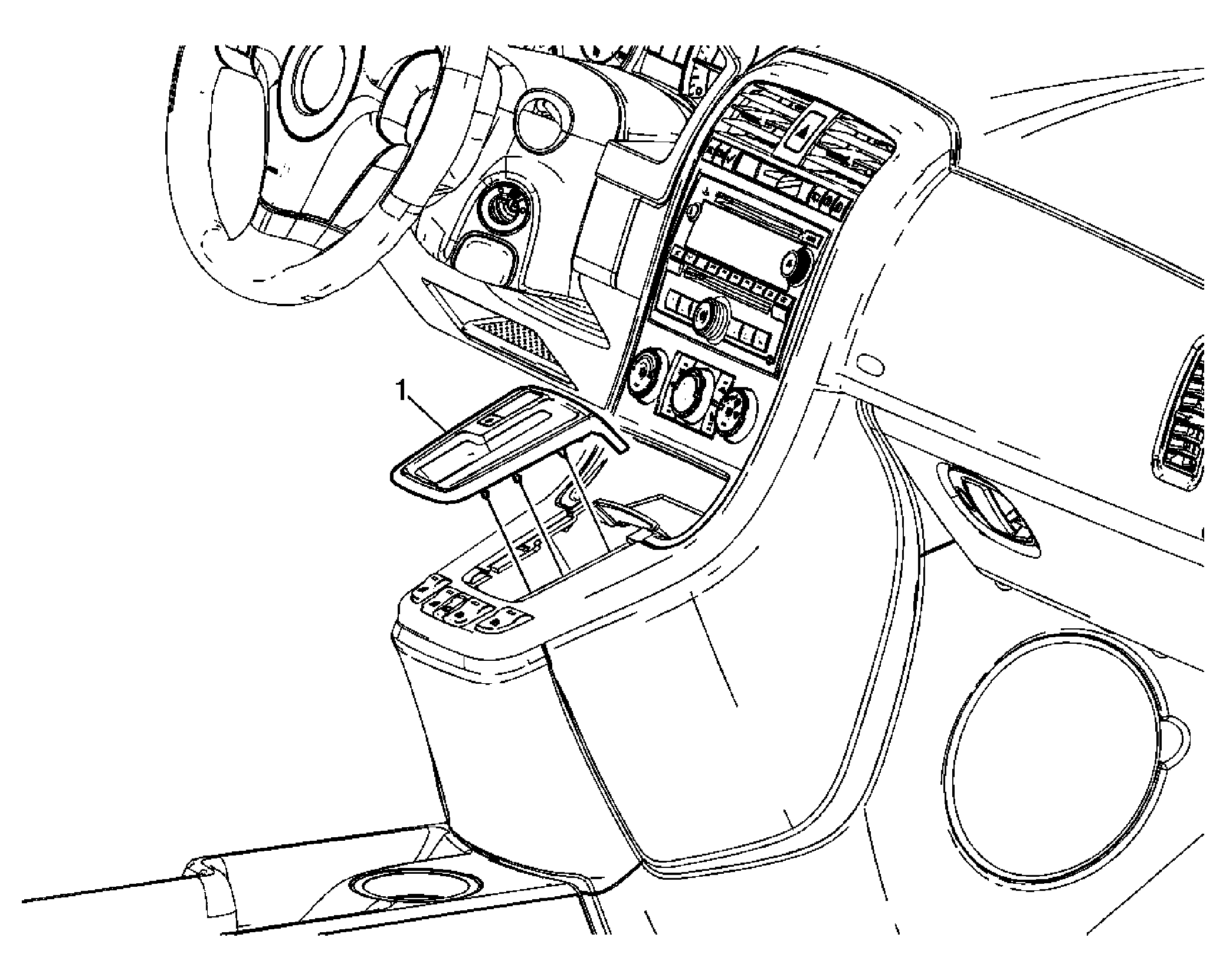

Fig 1: View Of Transmission Floor Shift Control Indicator Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Transmission Shifter Trim Bezel Tip: Disconnect the shift indicator electrical connector. Replace the transmission shift indicator bulb as necessary.
