Rear Seat Belt Replacement

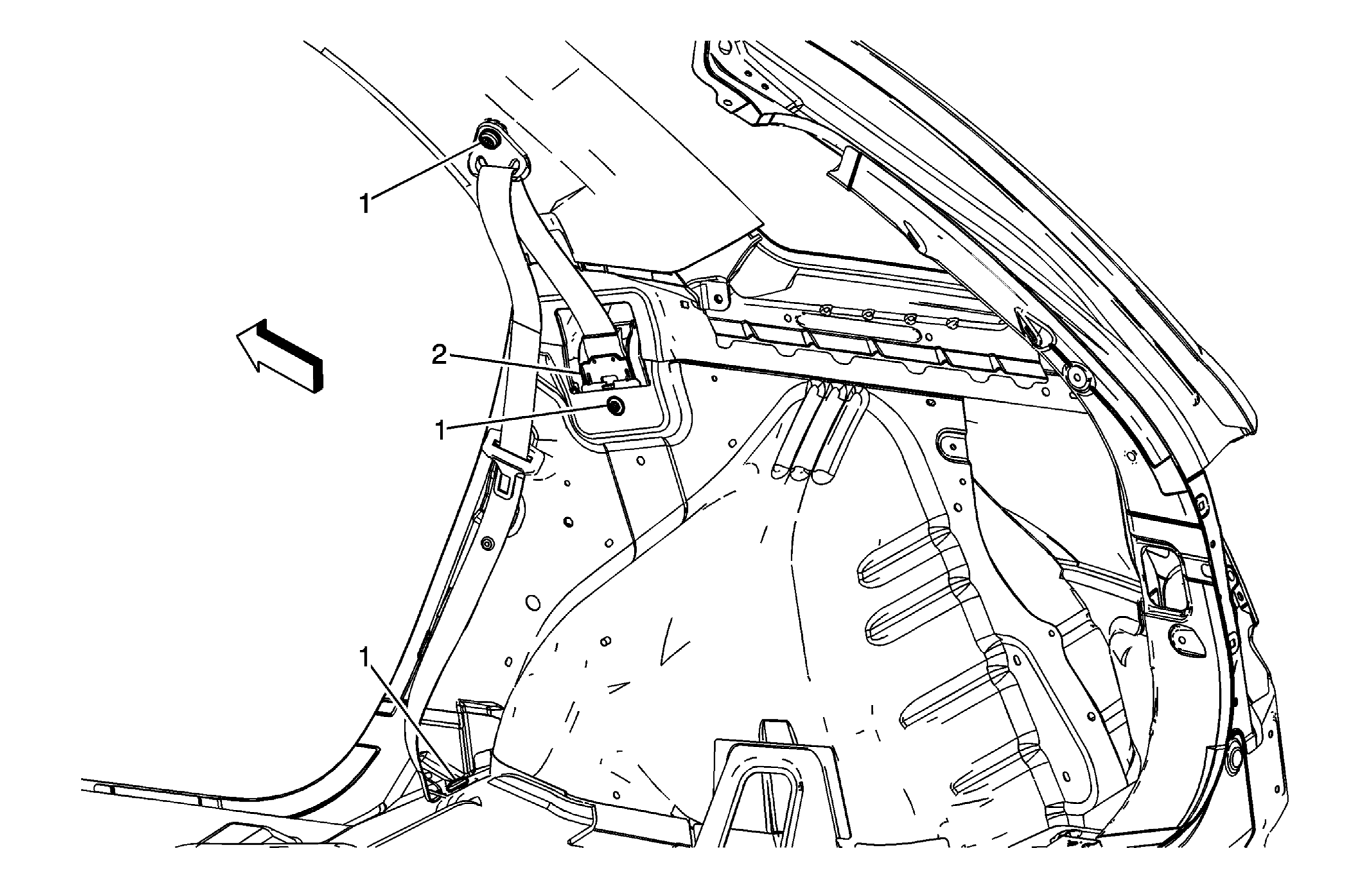

Fig 1: View Of Rear Seat Belt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement . Loosen the retractor anchor bolt cover on the upper rear pillar. Gently unsnap cover or it may break from too much force.
1	Rear Seat Belt Retractor Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tip: Apply Permatex® 24200 or equivalent on all seat belt fasteners prior to installation. Tighten: 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Tip: Make sure alignment slots are aligned correctly on reinstallation.

Callout

Component Name

Preliminary Procedures

Remove the rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement .
Loosen the retractor anchor bolt cover on the upper rear pillar. Gently unsnap cover or it may break from too much force.

Rear Seat Belt Retractor Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip: Apply Permatex® 24200 or equivalent on all seat belt fasteners prior to installation.

Tighten: 45 N.m (33 lb ft)

Rear Seat Belt Retractor
Tip: Make sure alignment slots are aligned correctly on reinstallation.
