Door Lock Switch Replacement

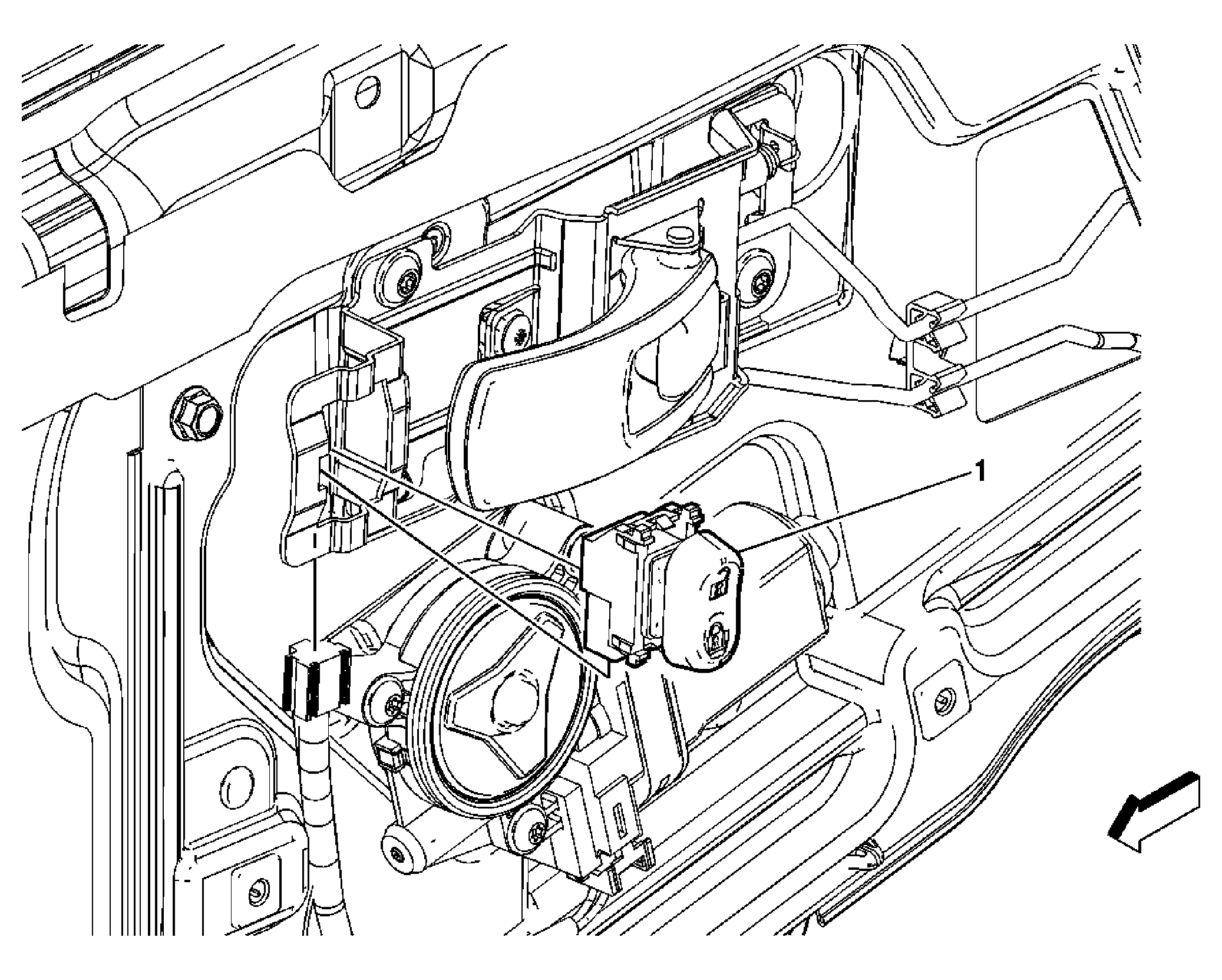

Fig 1: Identifying Power Door Lock Switch
GM1719779Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove front door extension trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) .
  2. Remove front door handle bezel. Refer to Door Handle Bezel Replacement (Rear Side Door) or Door Handle Bezel Replacement (Front Side Door) .
  3. Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Locking System Switch Assembly
Tip:
  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from door handle assembly.
