Liftgate Outside Handle Replacement

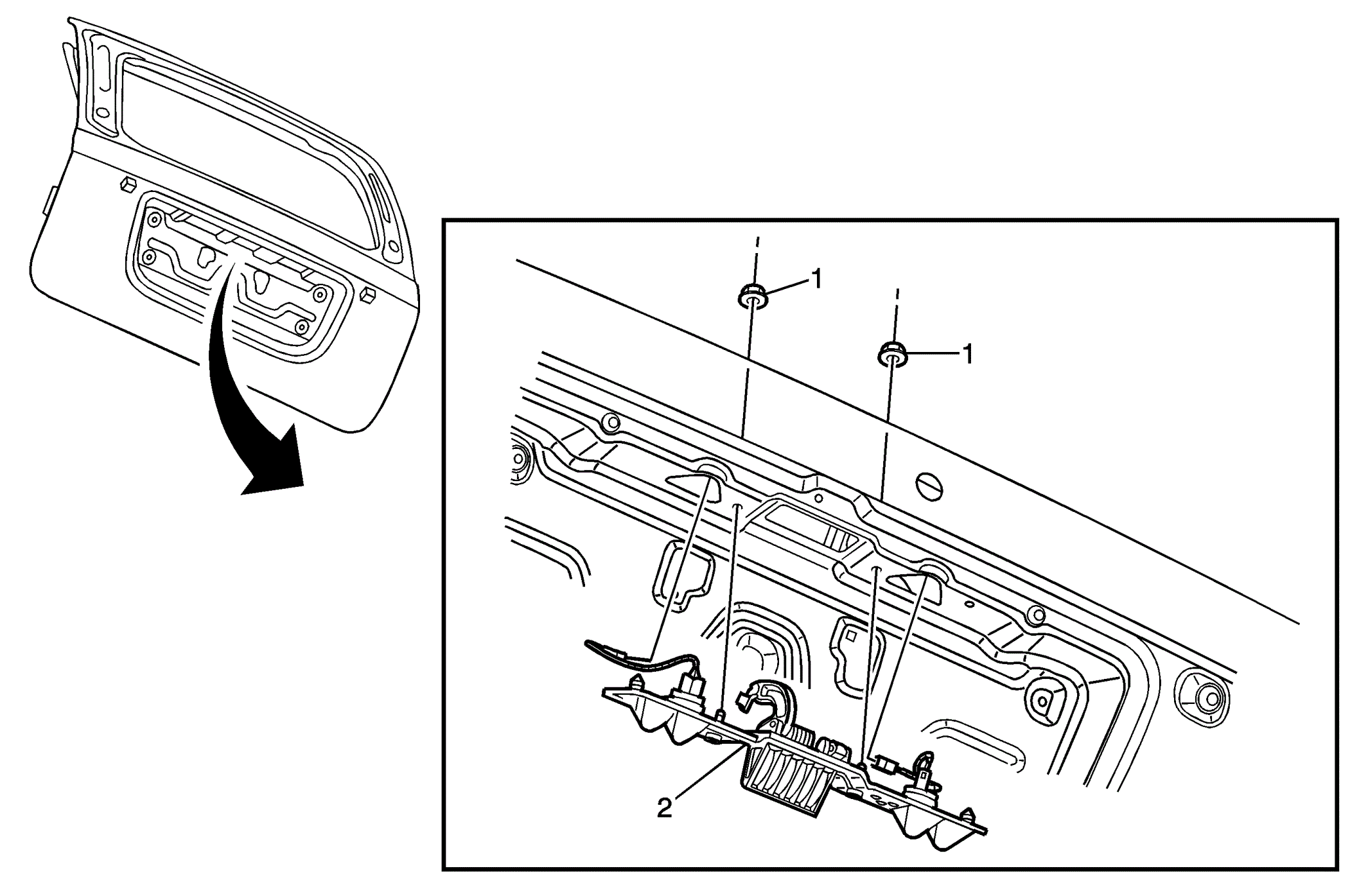

Fig 1: View Of Liftgate Outside Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Handle Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  4 N.m (35 lb in)
2	Liftgate Handle Assembly
