Automatic Transmission Electronic Component Views

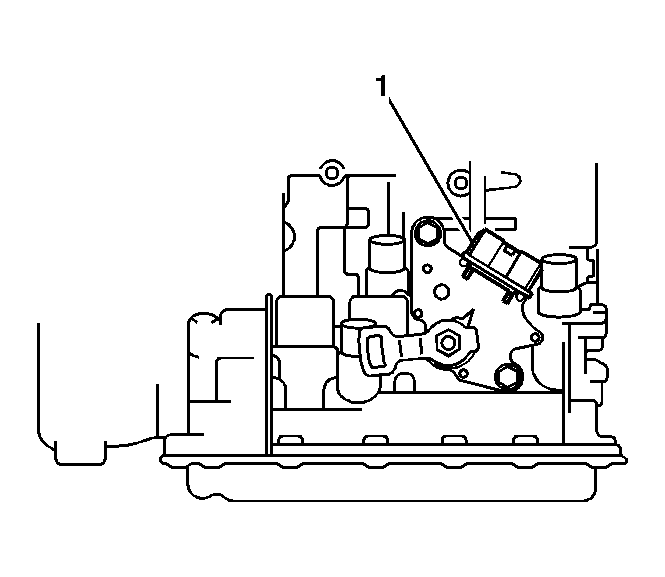

Fig 1: Park/Neutral Position Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Neutral Position Switch

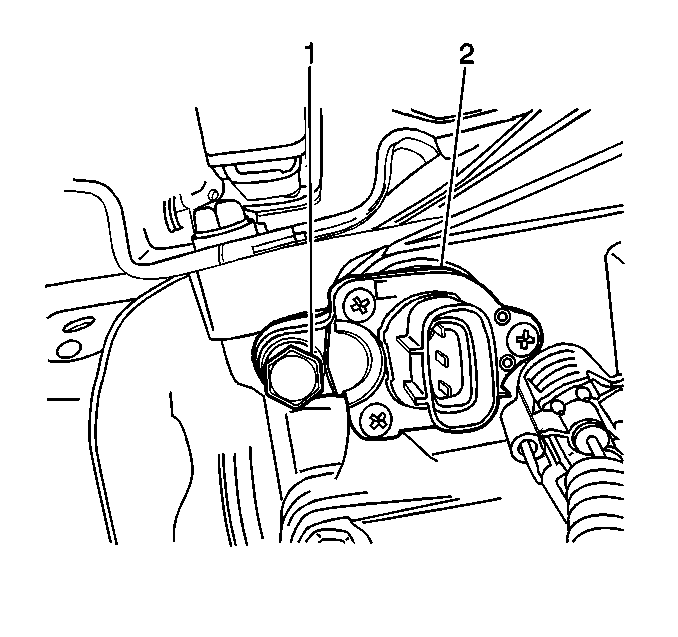

Fig 2: Vehicle Speed Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reatining Bolt
2	Vehicle Speed Sensor (VSS)
