Immobilizer Component Views

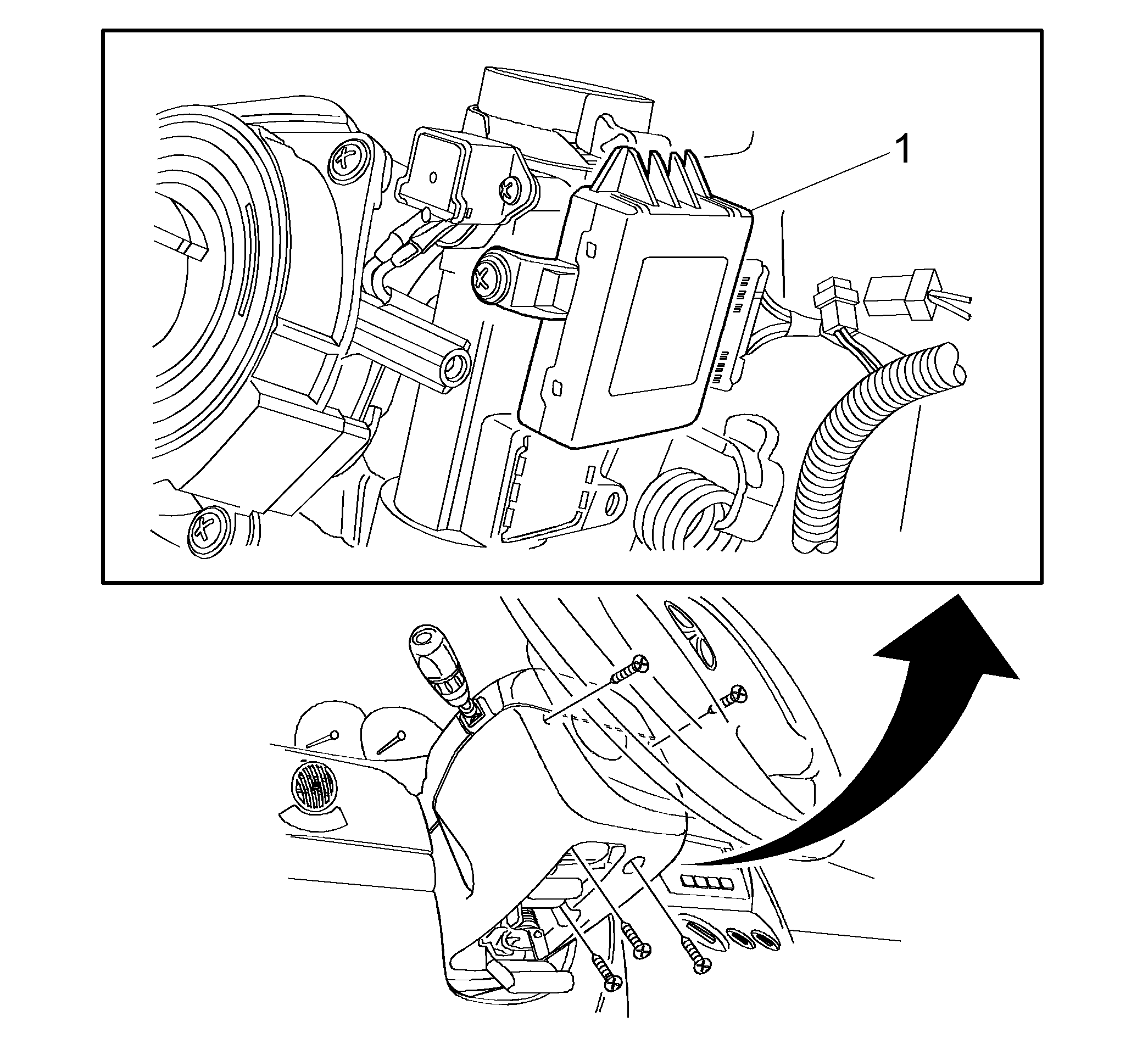

Fig 1: Immobilizer
GM1910608Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Immobilizer
