Installation Procedure

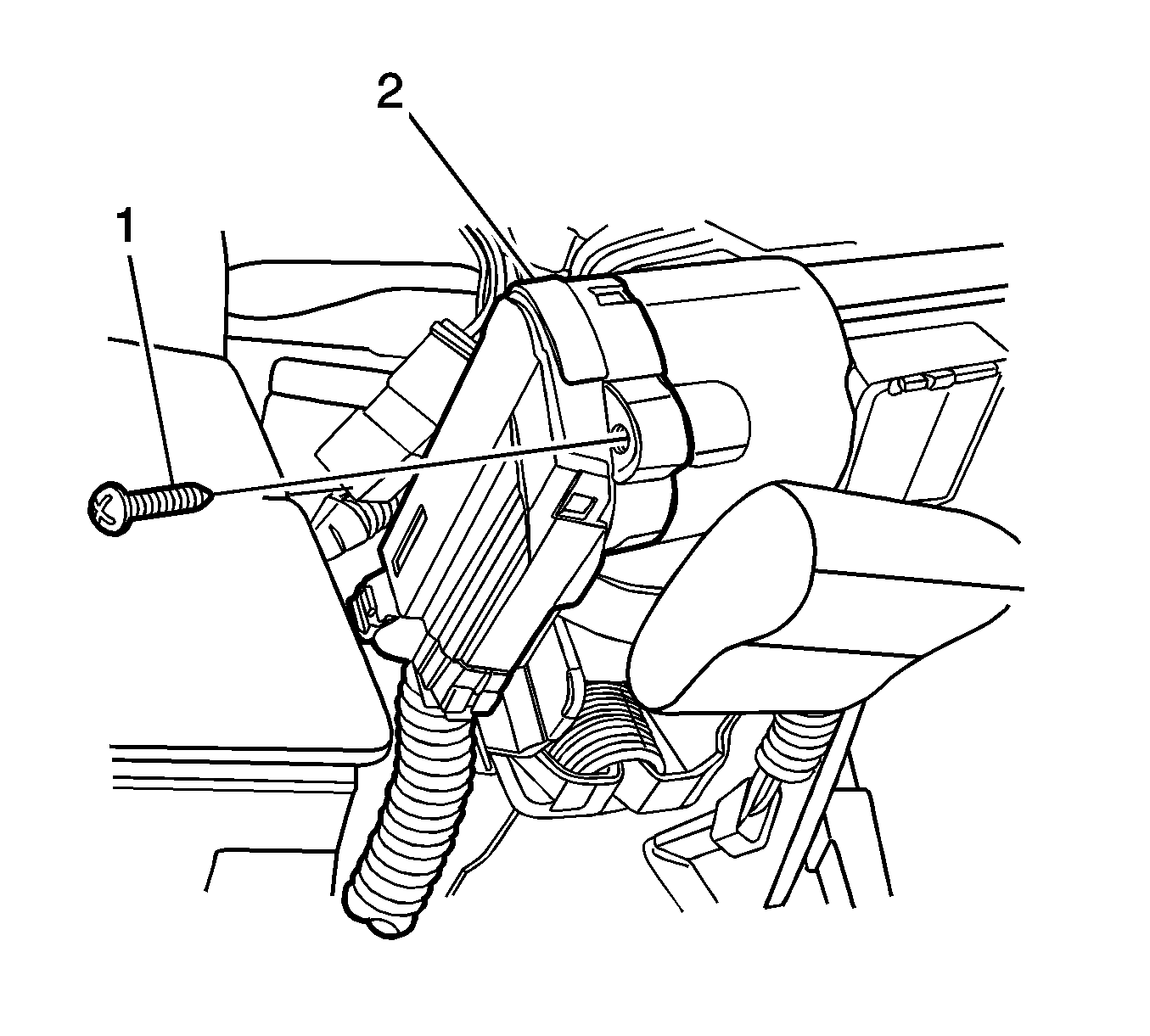

    Fig 1: Ignition Switch
    GM1716033Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition switch (2) and the screw (1).
  2. Connect the ignition switch connector.
    3. Fig 2: Steering Column Panels
    GM1715979Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column cover panel (5) and the screws (6, 7, 8).
  4. Connect the negative battery cable.
