Removal Procedure

    WARNING: Refer to Battery Disconnect Warning .

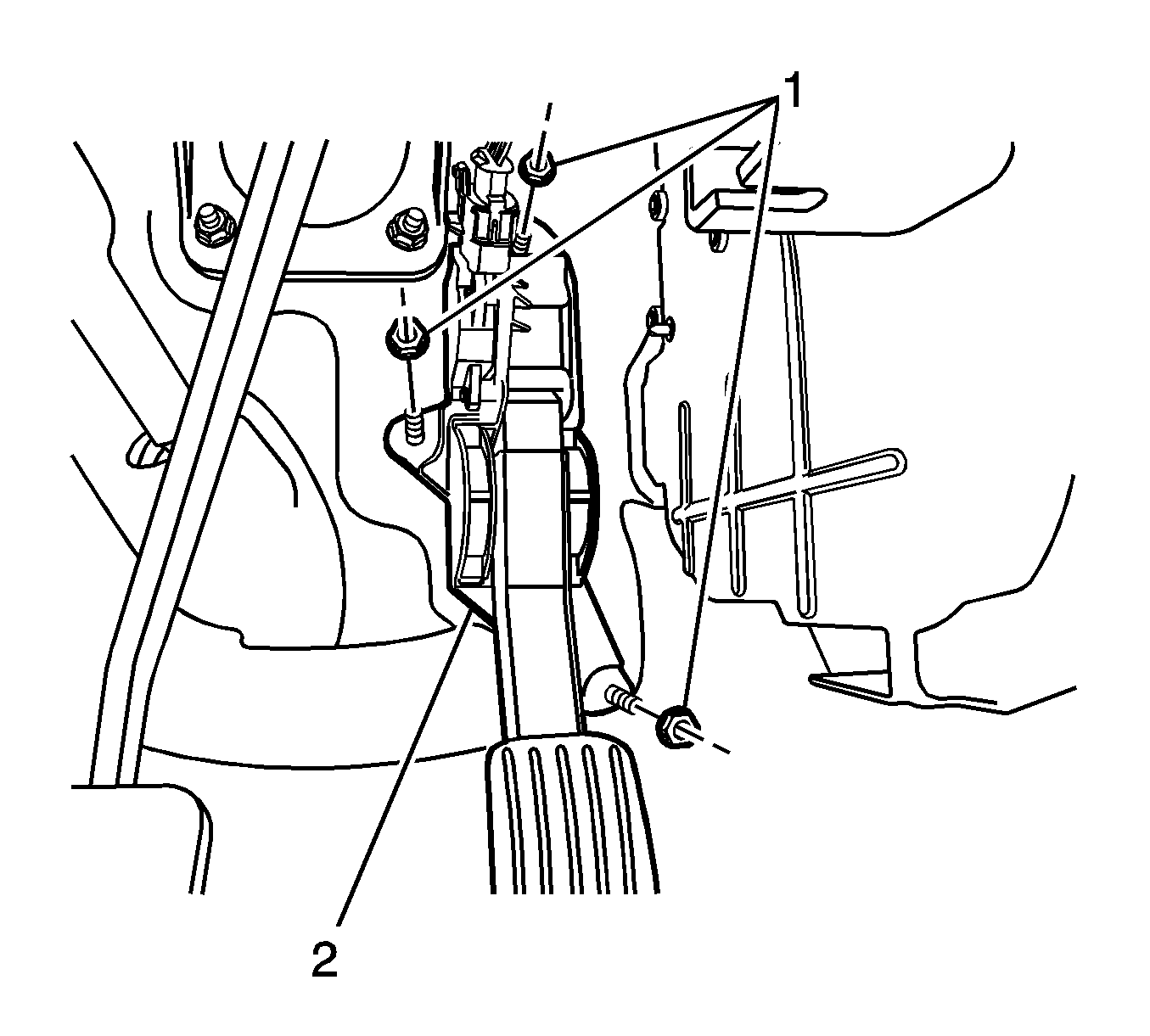

    Fig 1: 3 Accelerator Pedal Retaining Nuts
    GM1670940Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the accelerator pedal position sensor connector.
  3. Remove the 3 accelerator pedal retaining nuts (1).
  4. Remove the accelerator pedal (2).
