Installation Procedure

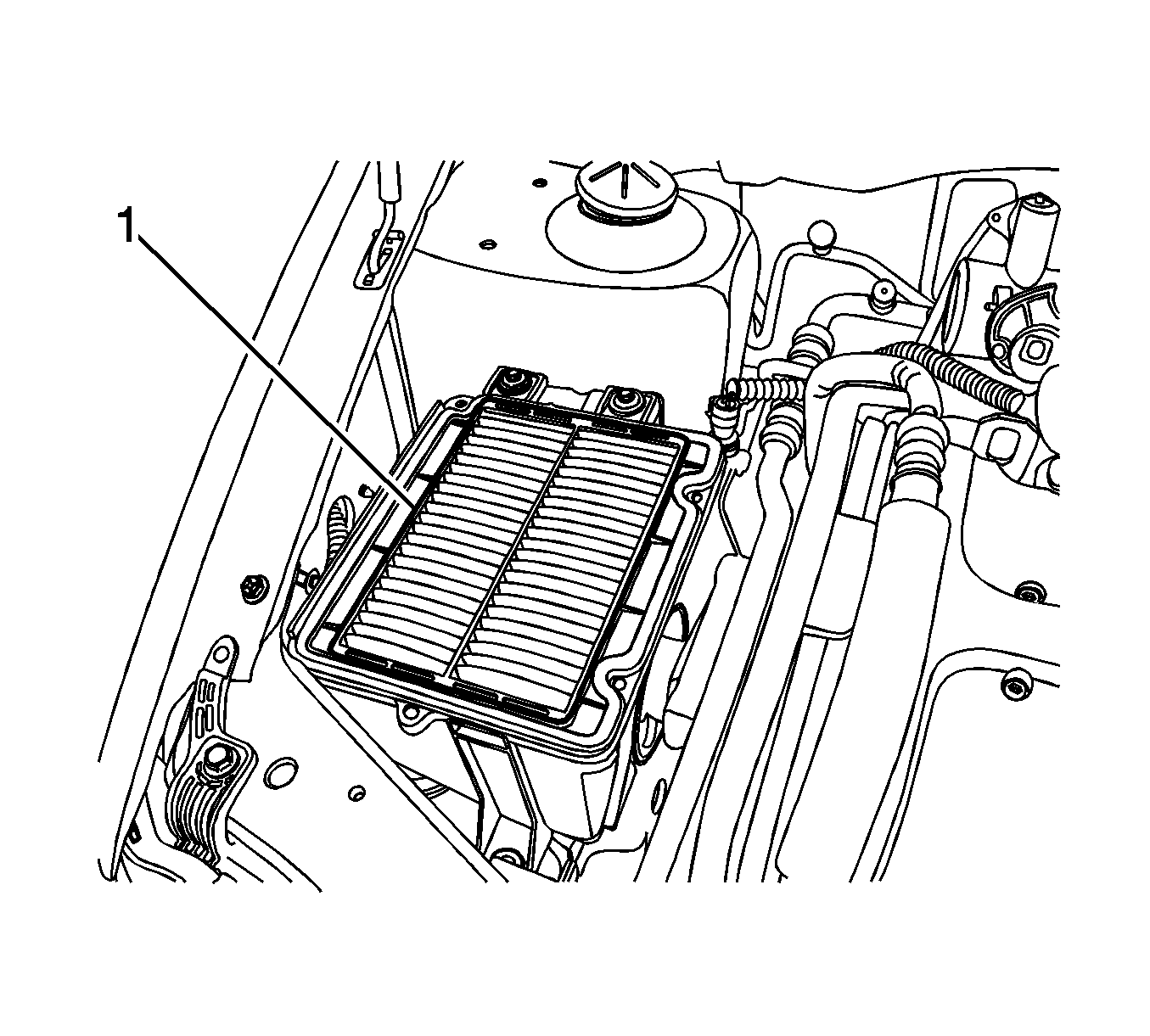

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the air filter element (1).
Install the air filter upper housing.
Tighten: Tighten the air filter upper housing bolts to 2 N.m (1.5 lb ft).
