Installation Procedure

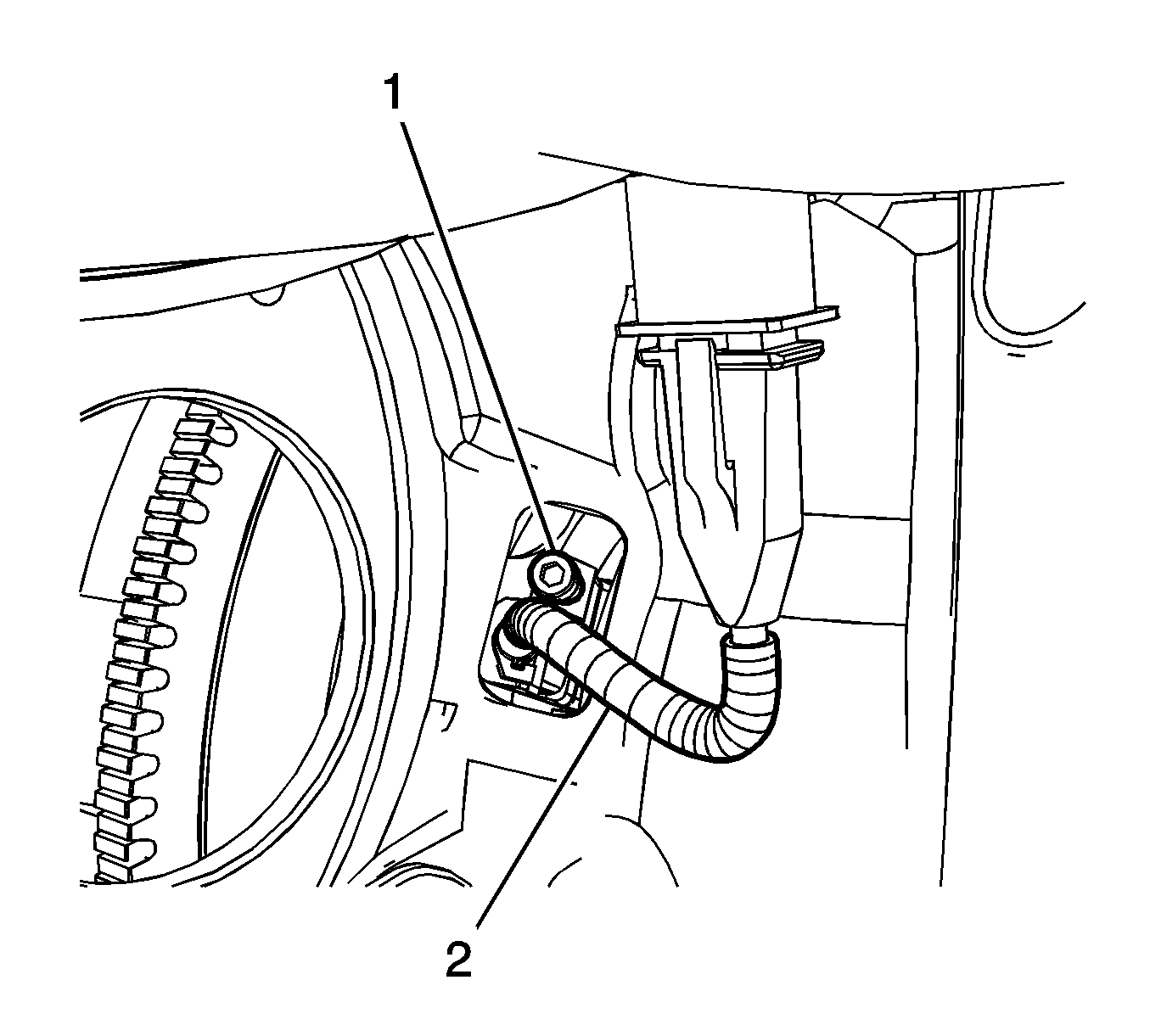

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the CKP sensor bolt (1).
Tighten: Tighten the CKP sensor bolt (1) to 4.5 N.m (39.8 lb in).
Install the starter. Refer to Starter Motor Replacement (1.4L LDT, 1.6 LXV) .
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
