Removal Procedure

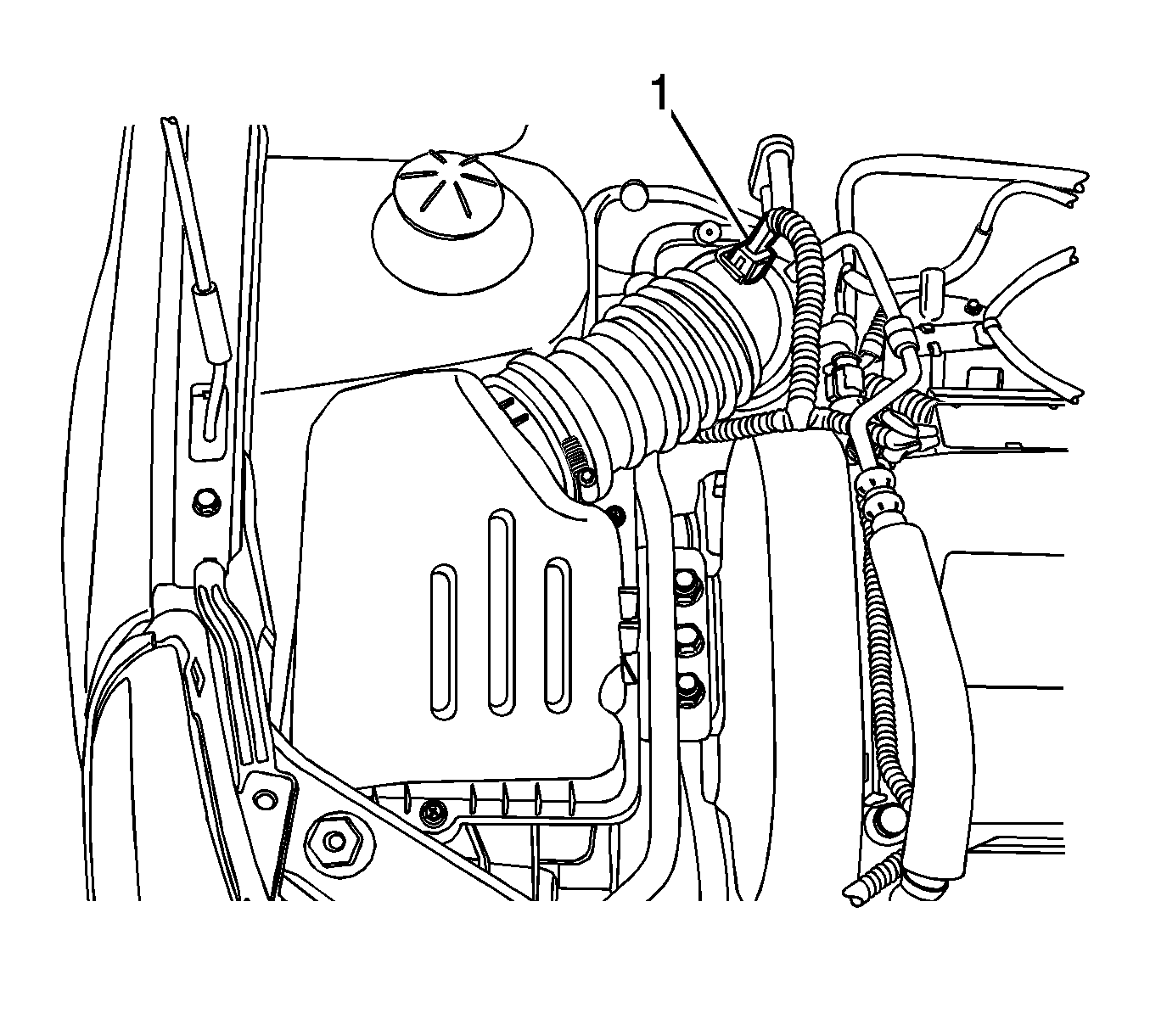

    Fig 1: IAT
    GM2049251Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the intake air temperature (IAT) sensor connector (1).
  3. Remove the IAT sensor.
