Removal Procedure

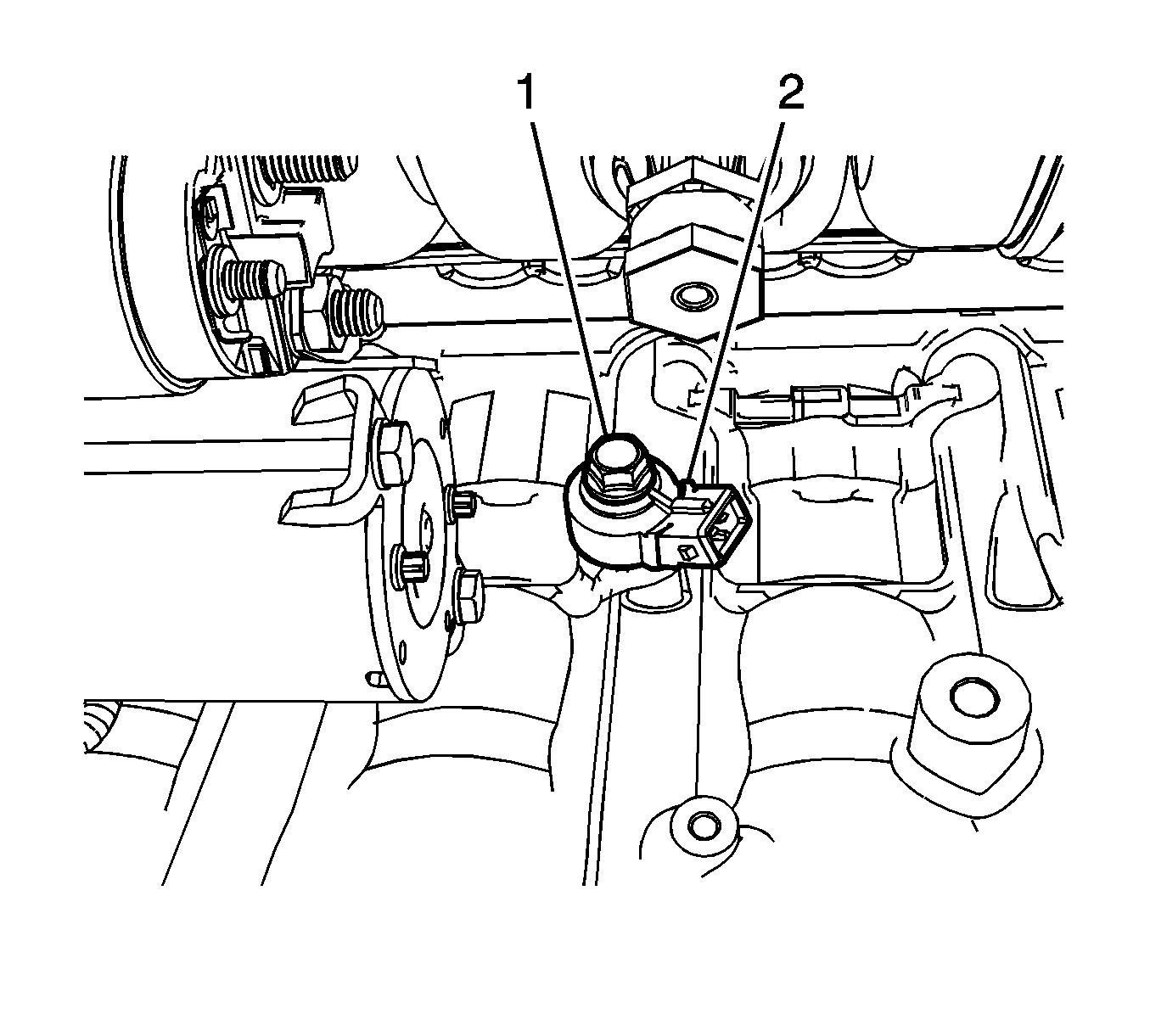

    Fig 1: Knock Sensor
    GM2049256Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the knock sensor bolt (1).
  3. Remove the knock sensor (2).
