Installation Procedure

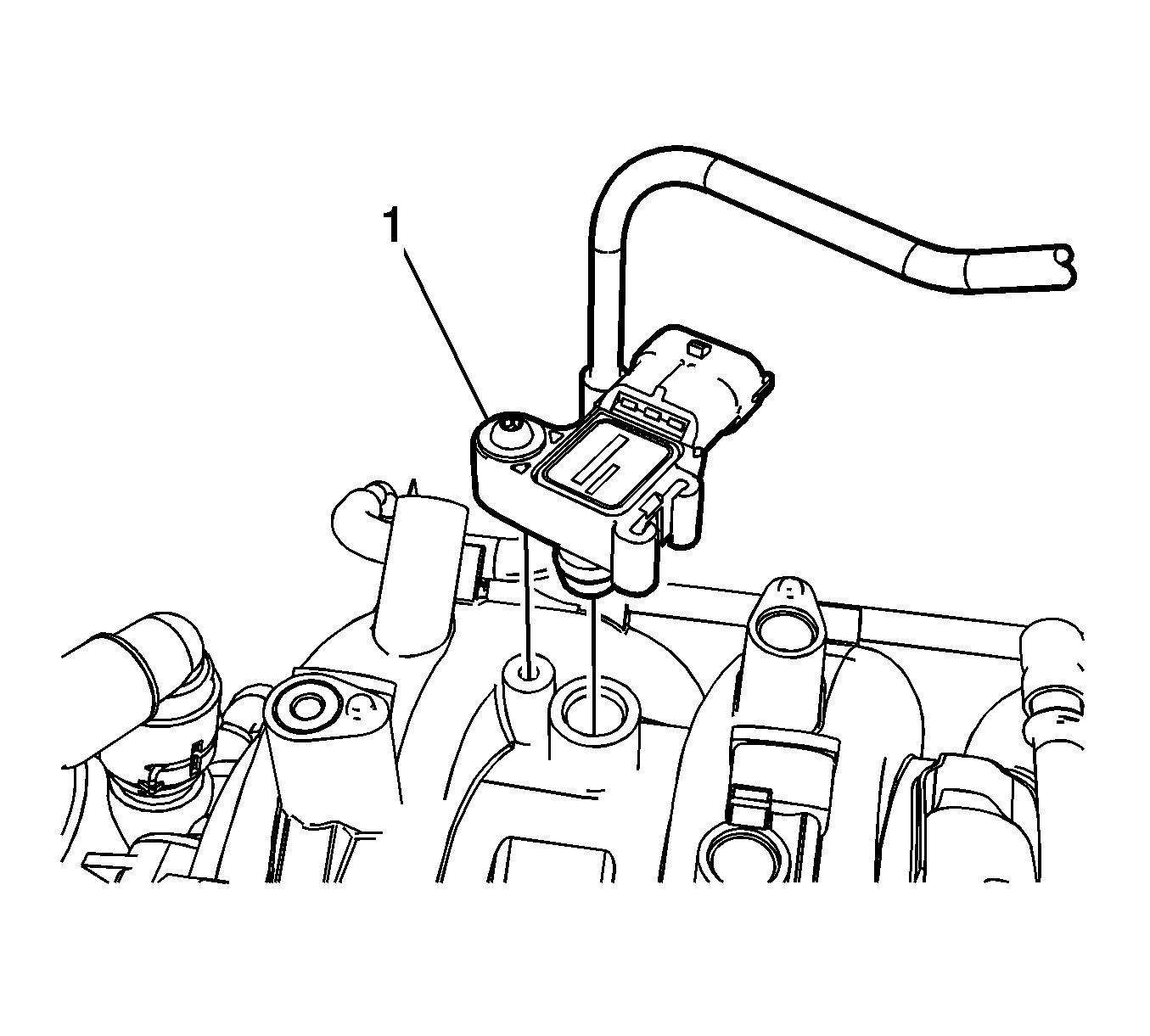

    Fig 1: MAP Sensor
    GM2049250Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1).
  2. Connect the MAP sensor connector.
  3. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
