Installation Procedure

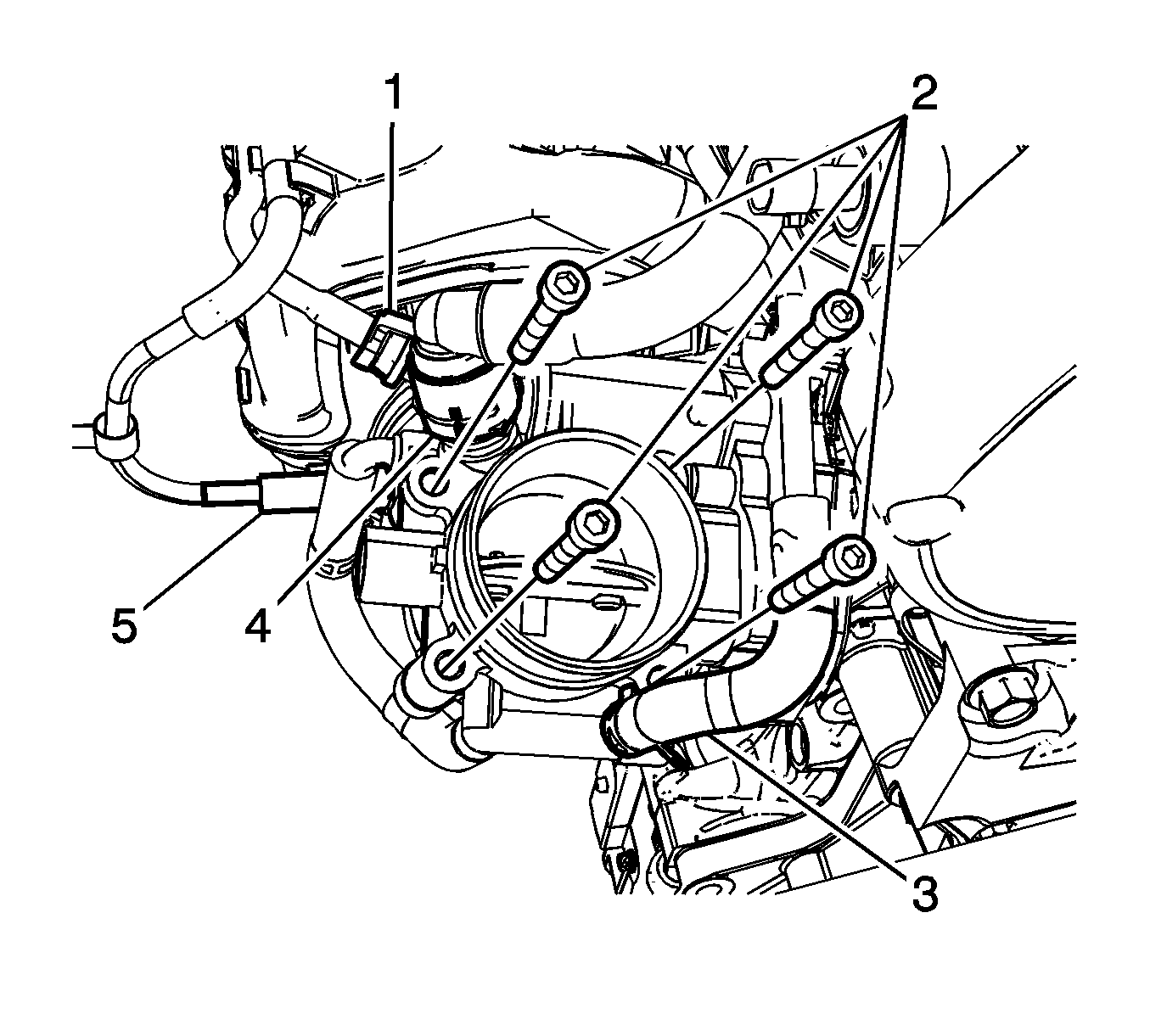

    Fig 1: ETC & Tightening Bolts
    GM2049248Courtesy of GENERAL MOTORS CORP.
  1. Install the ETC with the seal ring.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ETC tightening bolts (2).

    Tighten:  Tighten the ETC tightening bolts to 8 N.m (70.8 lb in).

  3. Connect the coolant inlet hose (3).
  4. Connect the coolant outlet hose (1).
  5. Connect the EVAP hose (5).
  6. Connect the PCV hose (4).
  7. Connect the ETC connector.
  8. Install the air-cleaner assembly. Refer to Air Cleaner Assembly Replacement
  9. Refill the engine coolant. Refer to Cooling System Draining and Filling
  10. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
