Engine Controls Schematics

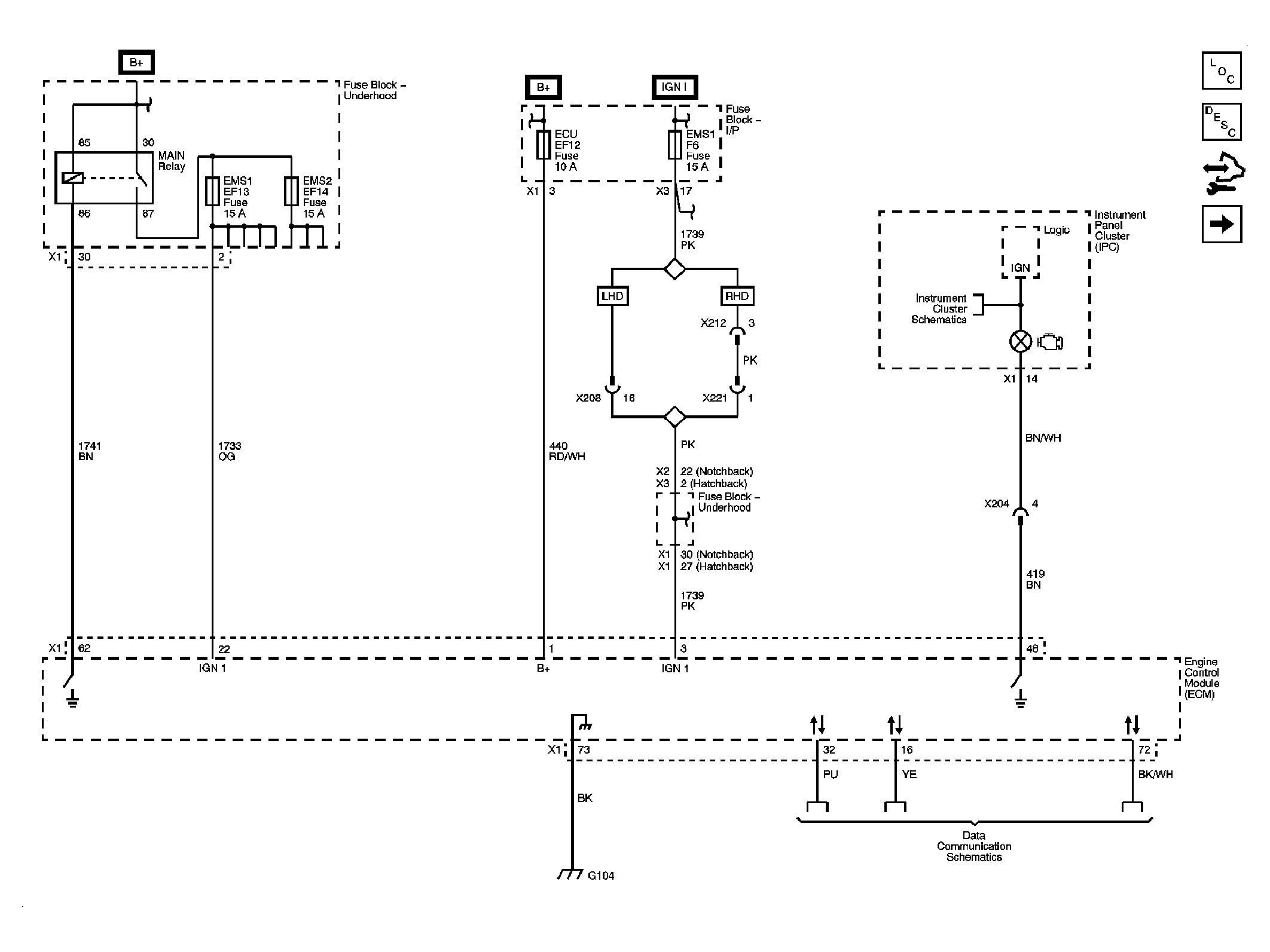

Fig 1: Power, Ground, MIL, Serial Data

Courtesy of GENERAL MOTORS CORP.

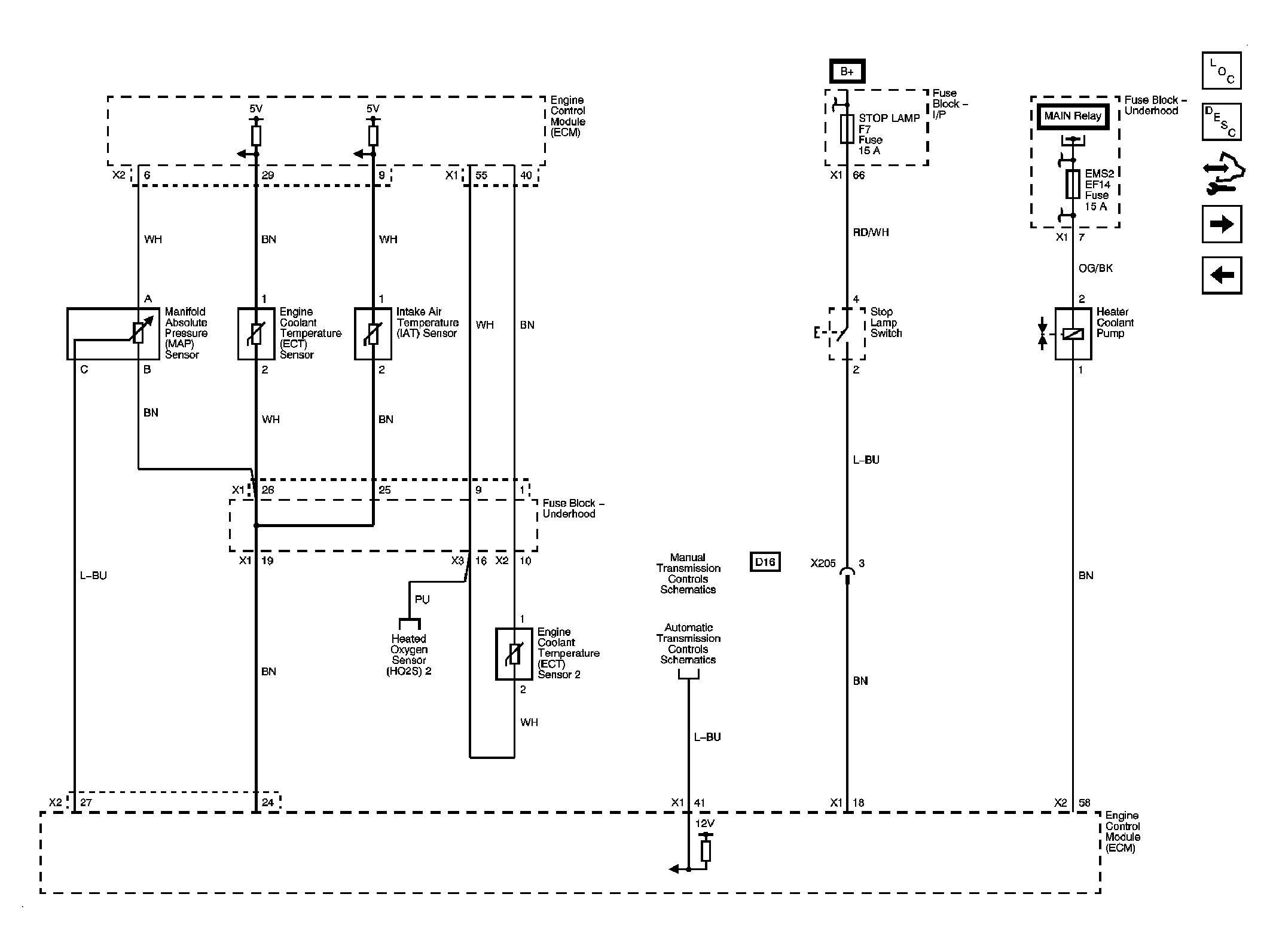

Fig 2: Engine Data Sensors - Pressure and Temperature, Stop Lamp, VSS

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Controls System, CMP Solenoid Vavles

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

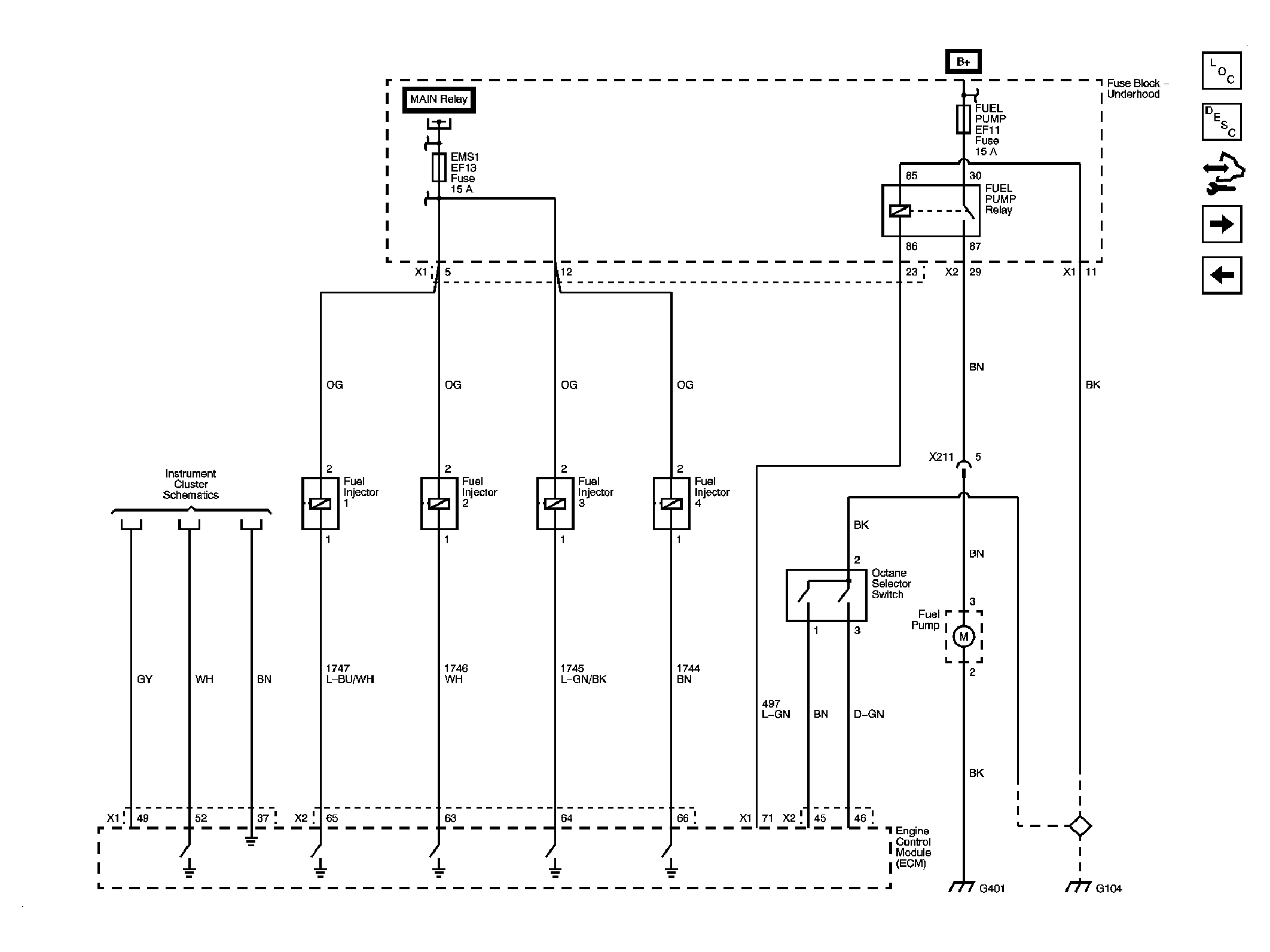

Fig 7: Fuel Pump Controls, Injectors

Courtesy of GENERAL MOTORS CORP.

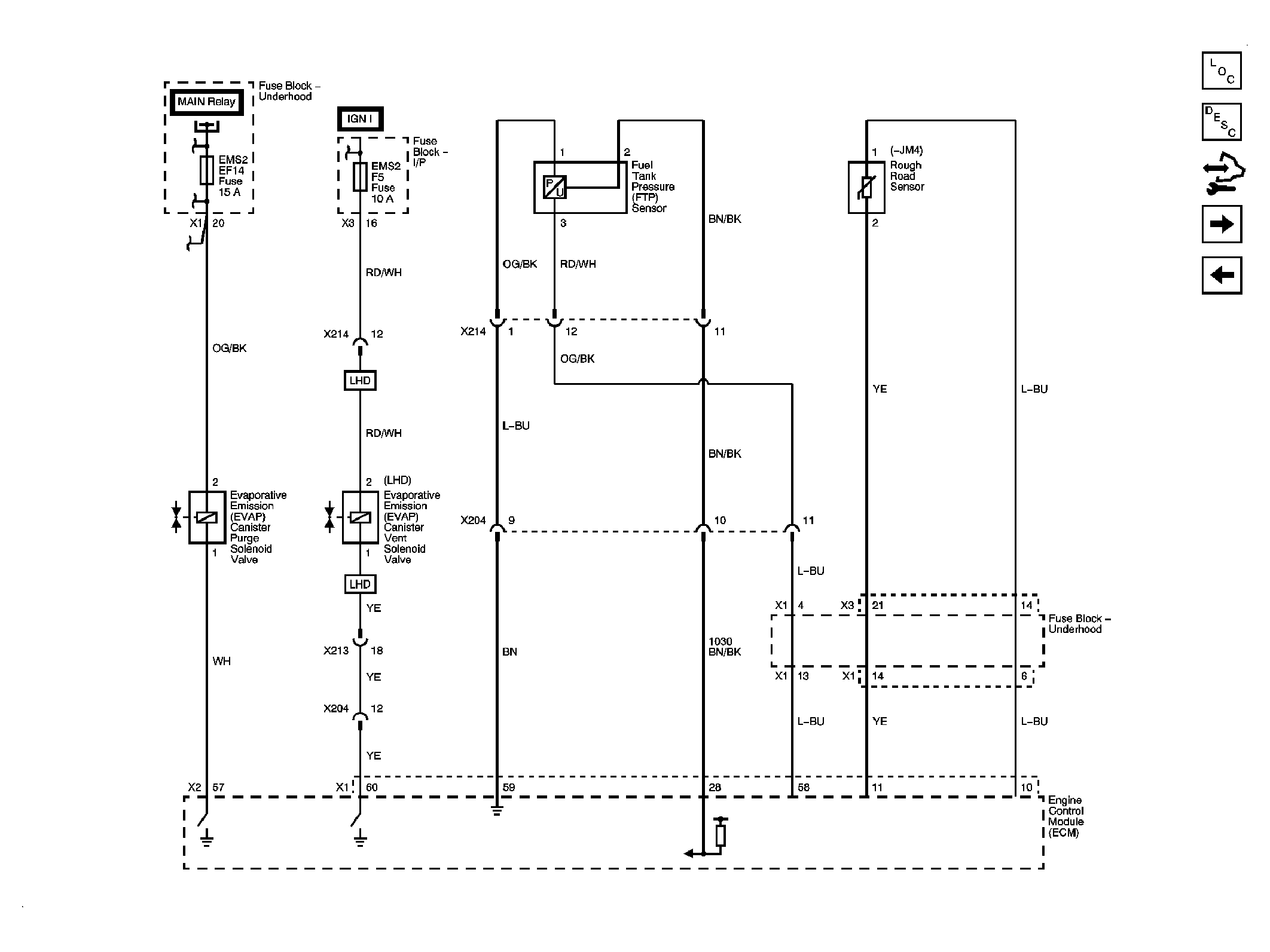

Fig 8: Fuel EVAP Controls and Rough Road Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
