Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

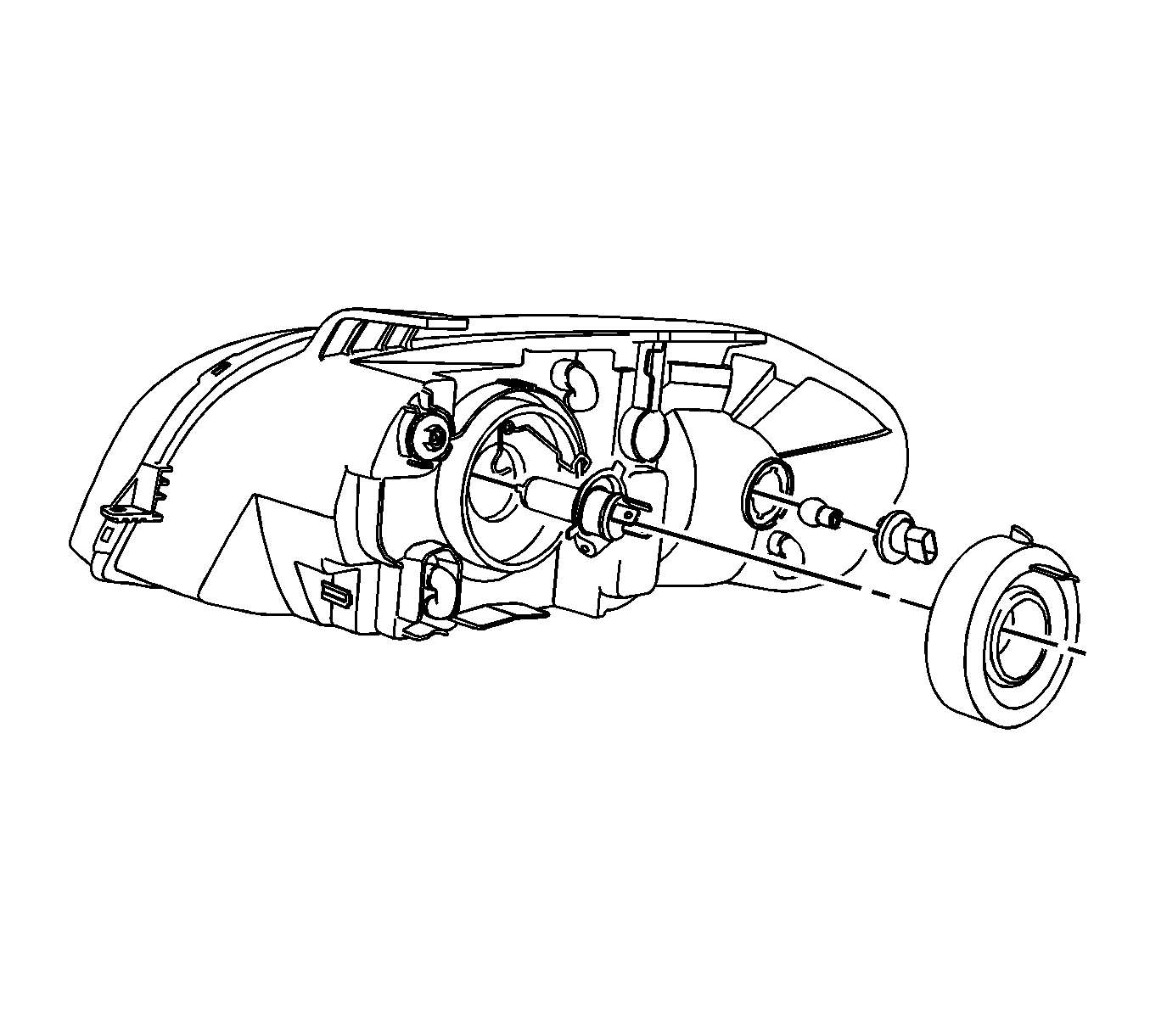

    Fig 1: Headlamp Assembly
    GM1722976Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp bulb.
  2. Install the retaining wire.
  3. Connect the headlamp bulb electrical connector.
  4. Install the cap concealing the headlamp bulb.

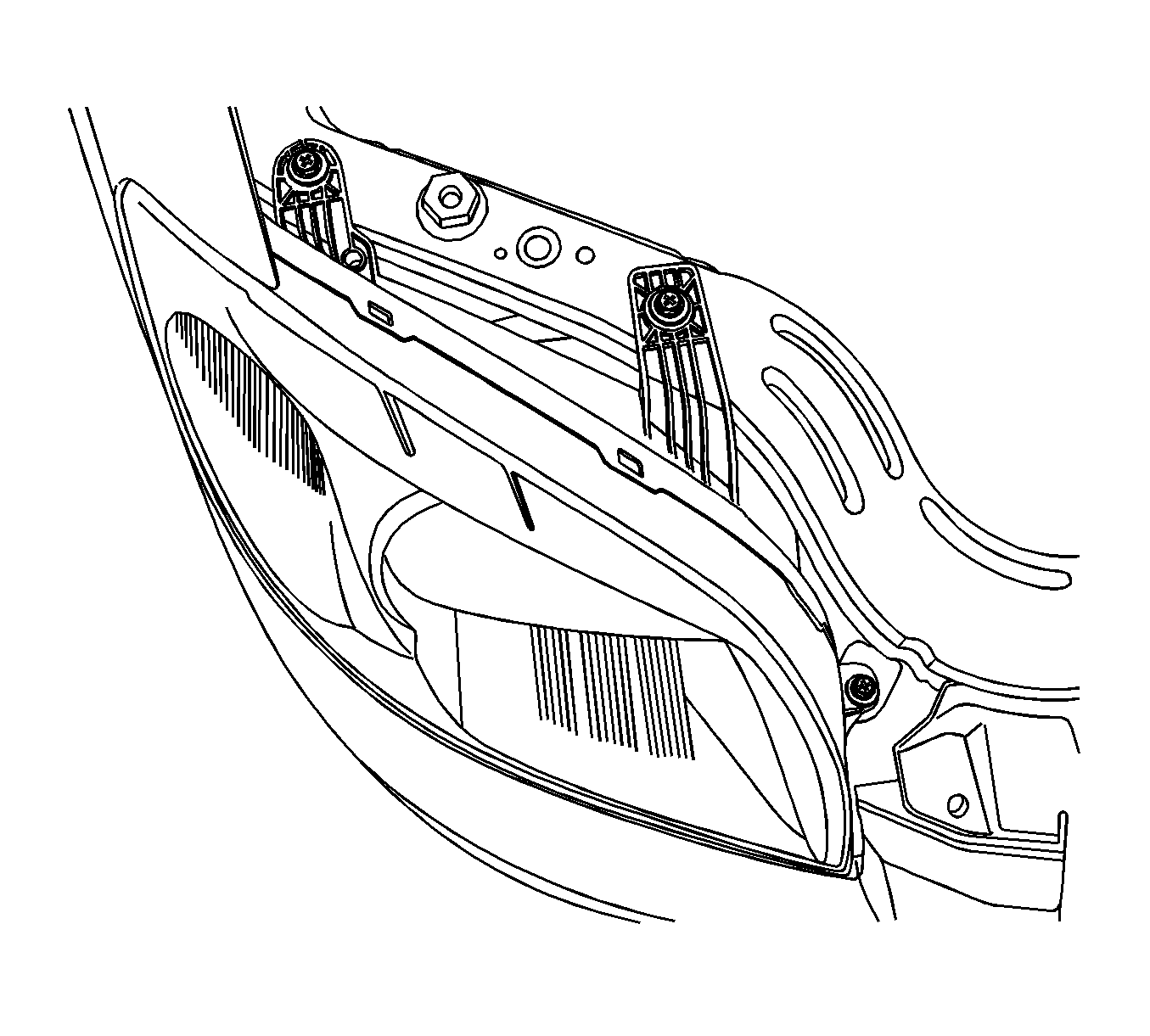

    5. Fig 2: Headlamp Fascia Grille
    GM1722974Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connectors.
    6. CAUTION: Refer to Fastener Caution .
  6. Install the headlamp assembly with the bolts and tighten to 6 N.m (53 lb in).
