Moveable Window Schematics

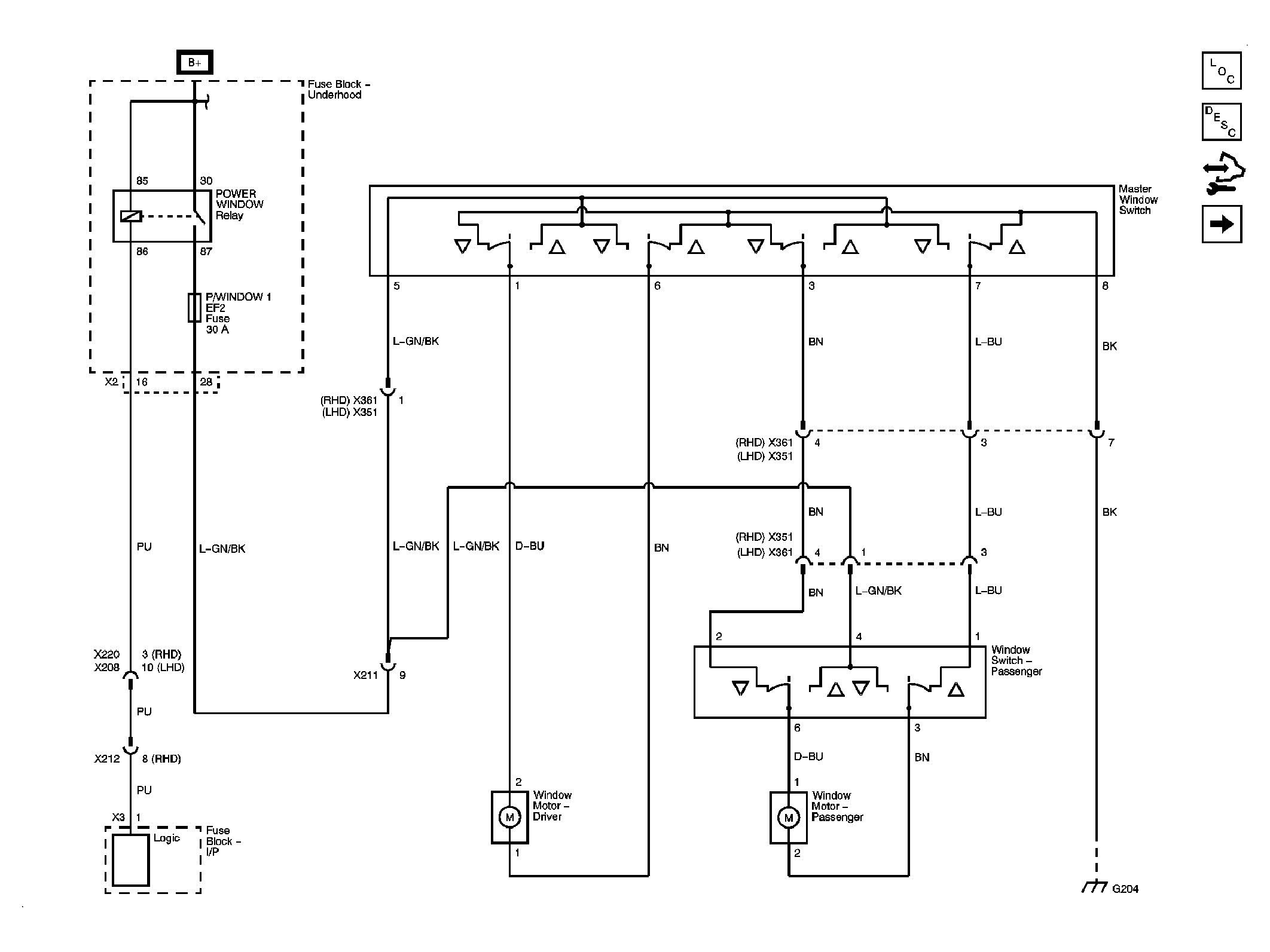

Fig 1: Front Power Windows Schematic
GM2049615Courtesy of GENERAL MOTORS CORP.

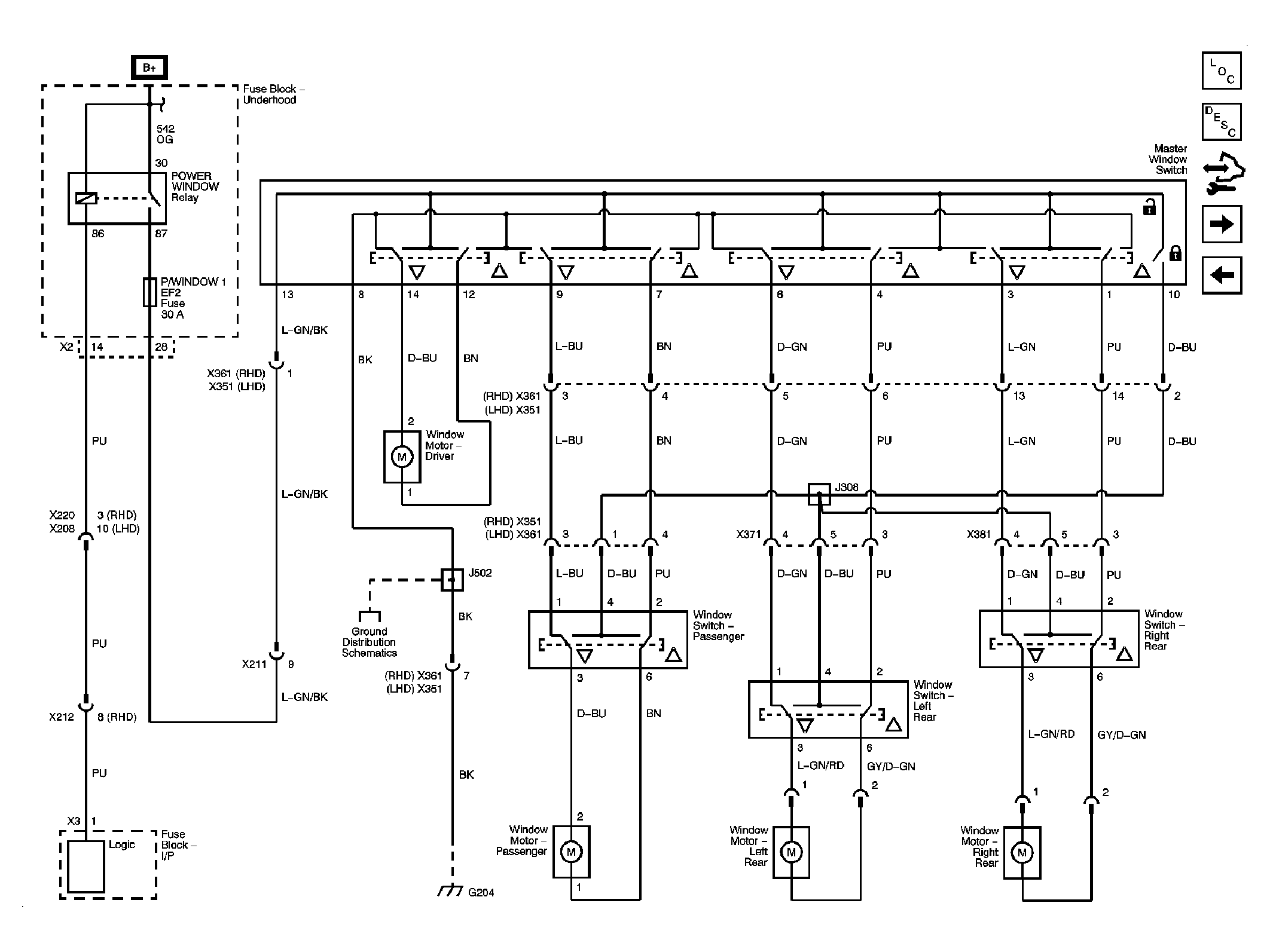

Fig 2: Front and Rear Power Windows Schematic
GM2049616Courtesy of GENERAL MOTORS CORP.

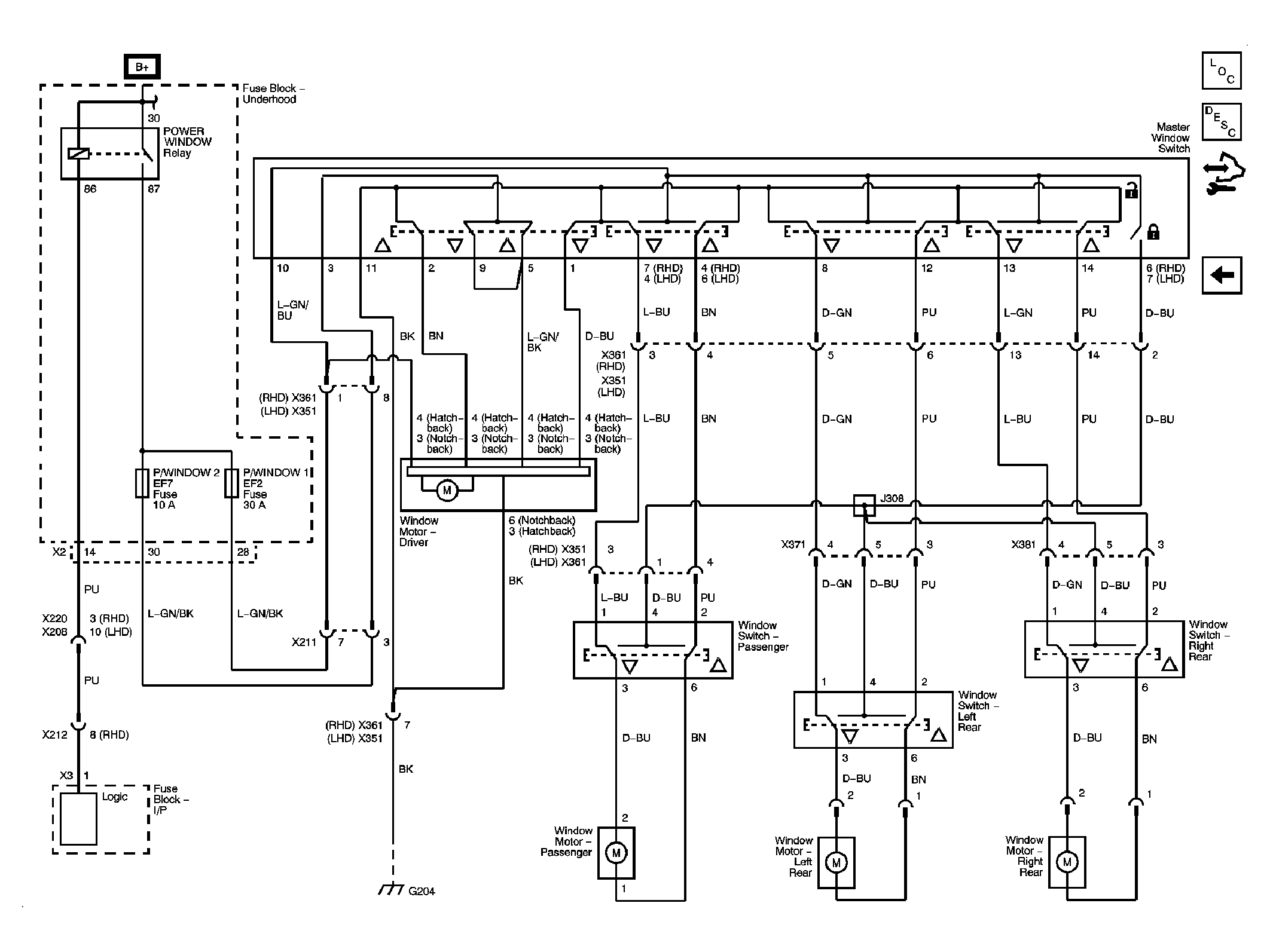

Fig 3: Safety Power Windows Schematic
GM2049617Courtesy of GENERAL MOTORS CORP.
