Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

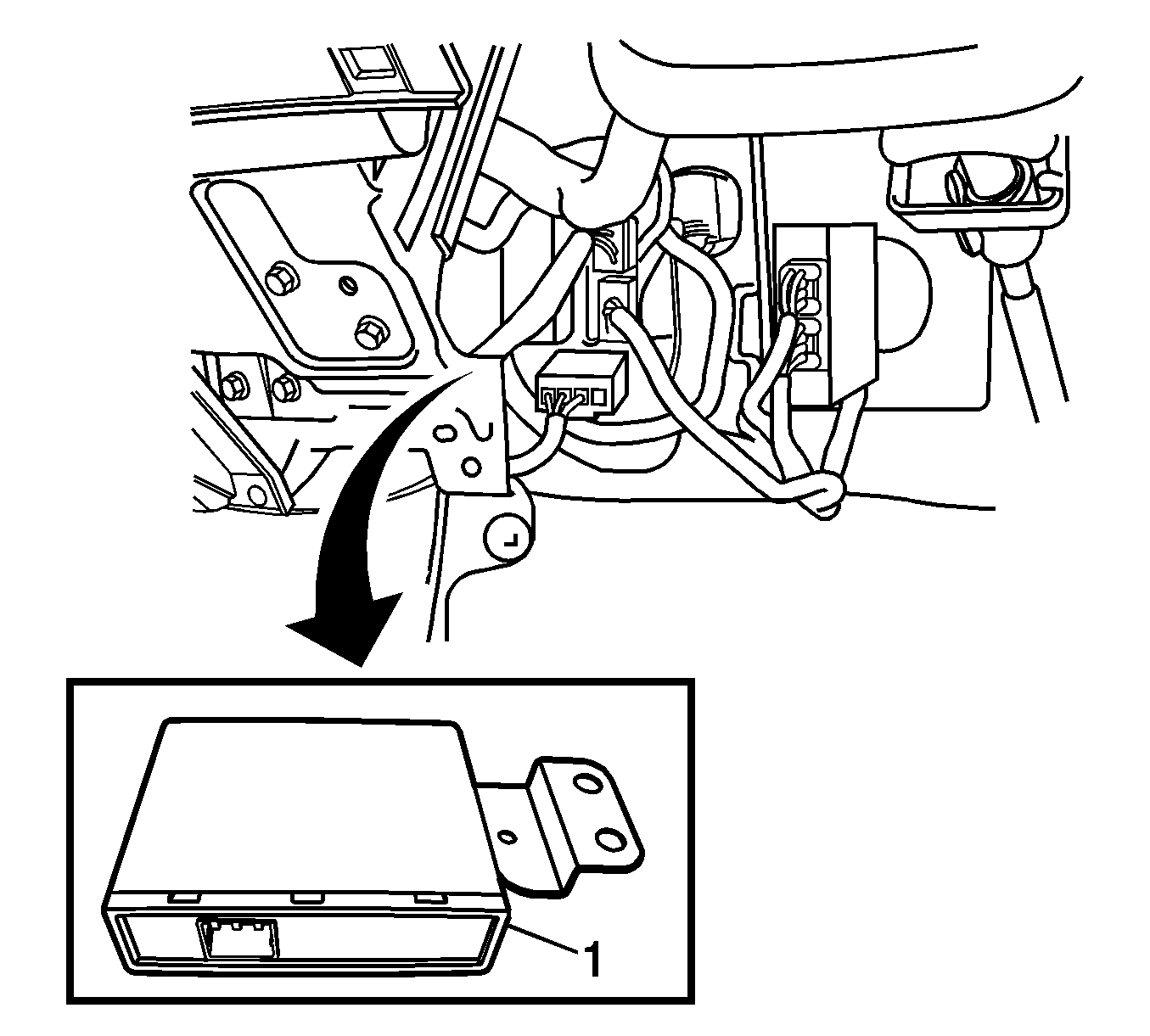

Fig 1: Tire Pressure Module Retaining Screws And Module

Courtesy of GENERAL MOTORS CORP.

Install the tire pressure module (1). Secure with retaining screws.
Connect the tire pressure module connector.

CAUTION: Refer to Fastener Caution .

Install the driver side knee bolster and tighten to 10 N.m (89 lb in).
Install the I/P undercover.
Connect the hood release cable to the hood latch release handle.
