Data Communication Schematics

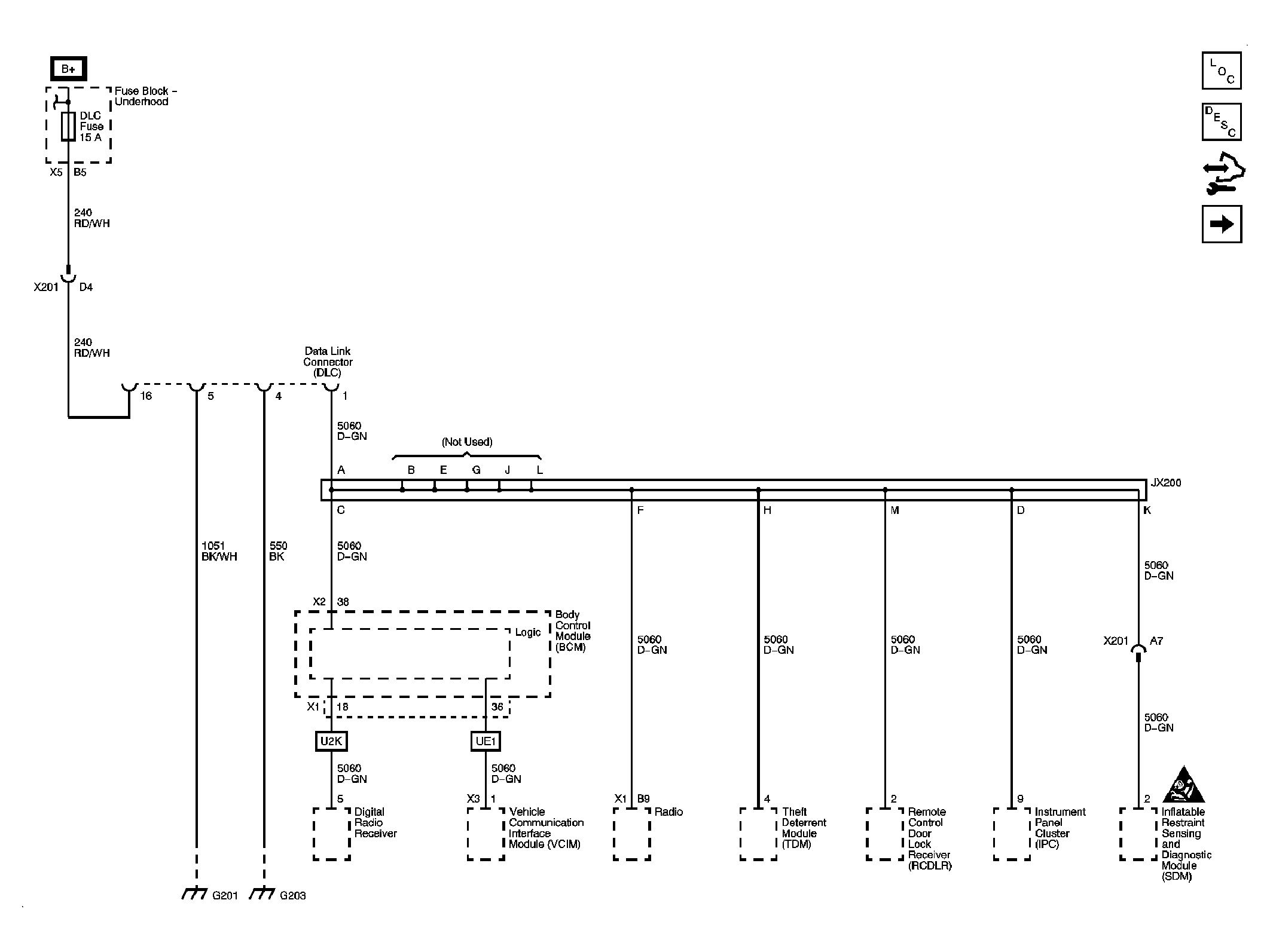

Fig 1: Power, Ground, Low Speed GMLAN Schematic
GM2077603Courtesy of GENERAL MOTORS CORP.

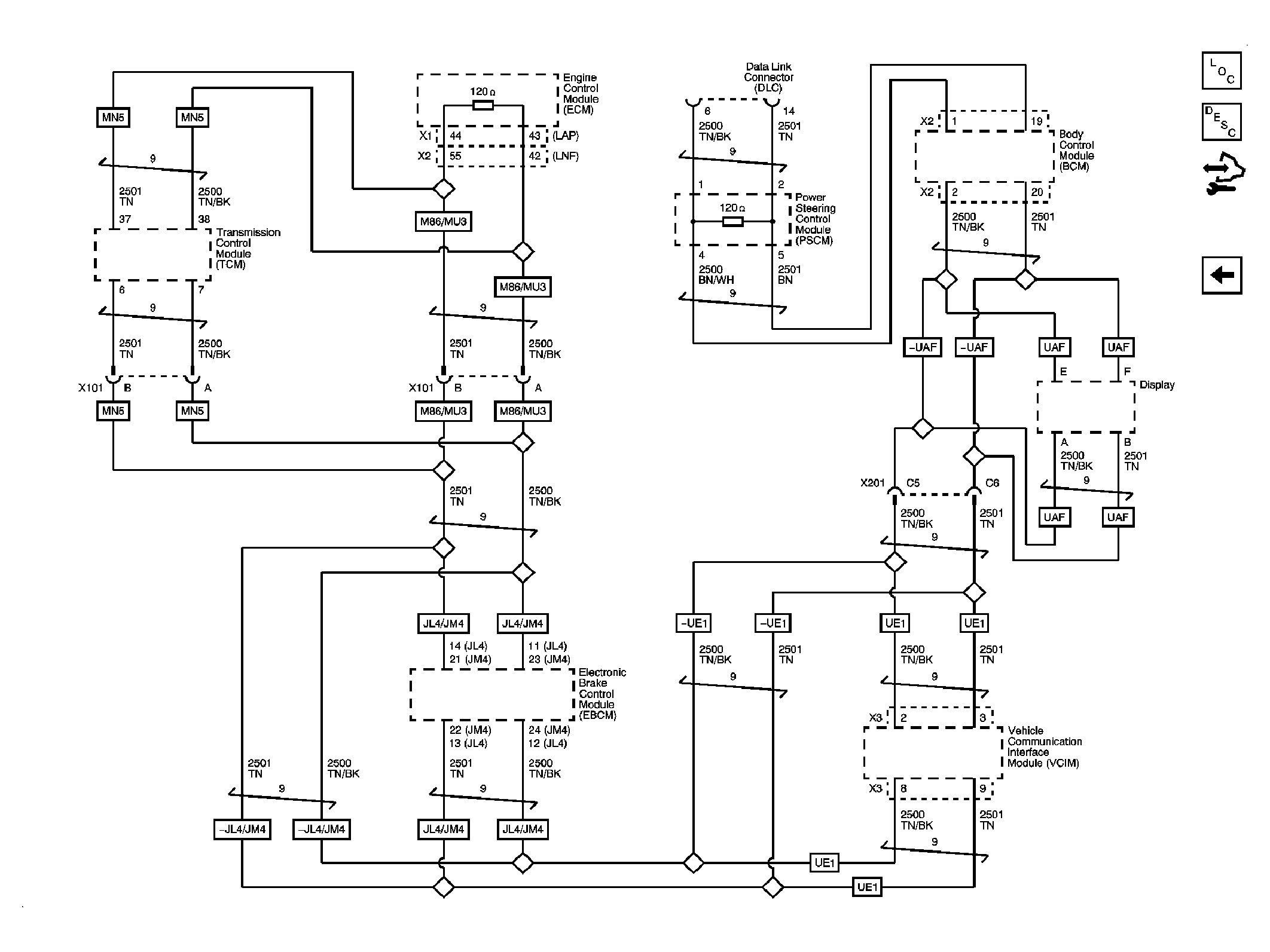

Fig 2: High Speed GMLAN Schematic
GM2077604Courtesy of GENERAL MOTORS CORP.
