Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Rear Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Front Of Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 4: Automatic Transmission (4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 6: Interior
Courtesy of GENERAL MOTORS CORP.
Fig 7: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 9: Top Of Engine (3.5L/3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Exhaust Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 12: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 13: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 14: Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Roof Rail
Courtesy of GENERAL MOTORS CORP.
Fig 16: Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 17: Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 20: HVAC Unit (Manual)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Rear Of Engine Compartment (Except 2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 24: Front Impact Bar
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Door
Courtesy of GENERAL MOTORS CORP.
Fig 26: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 27: Side Impact Modules
Courtesy of GENERAL MOTORS CORP.
Fig 28: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 29: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Side Of Console
Courtesy of GENERAL MOTORS CORP.
Fig 34: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 36: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 38: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Front Pan (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Rear Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Headliner (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 45: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Top Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Front Of Engine Compartment (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Right Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

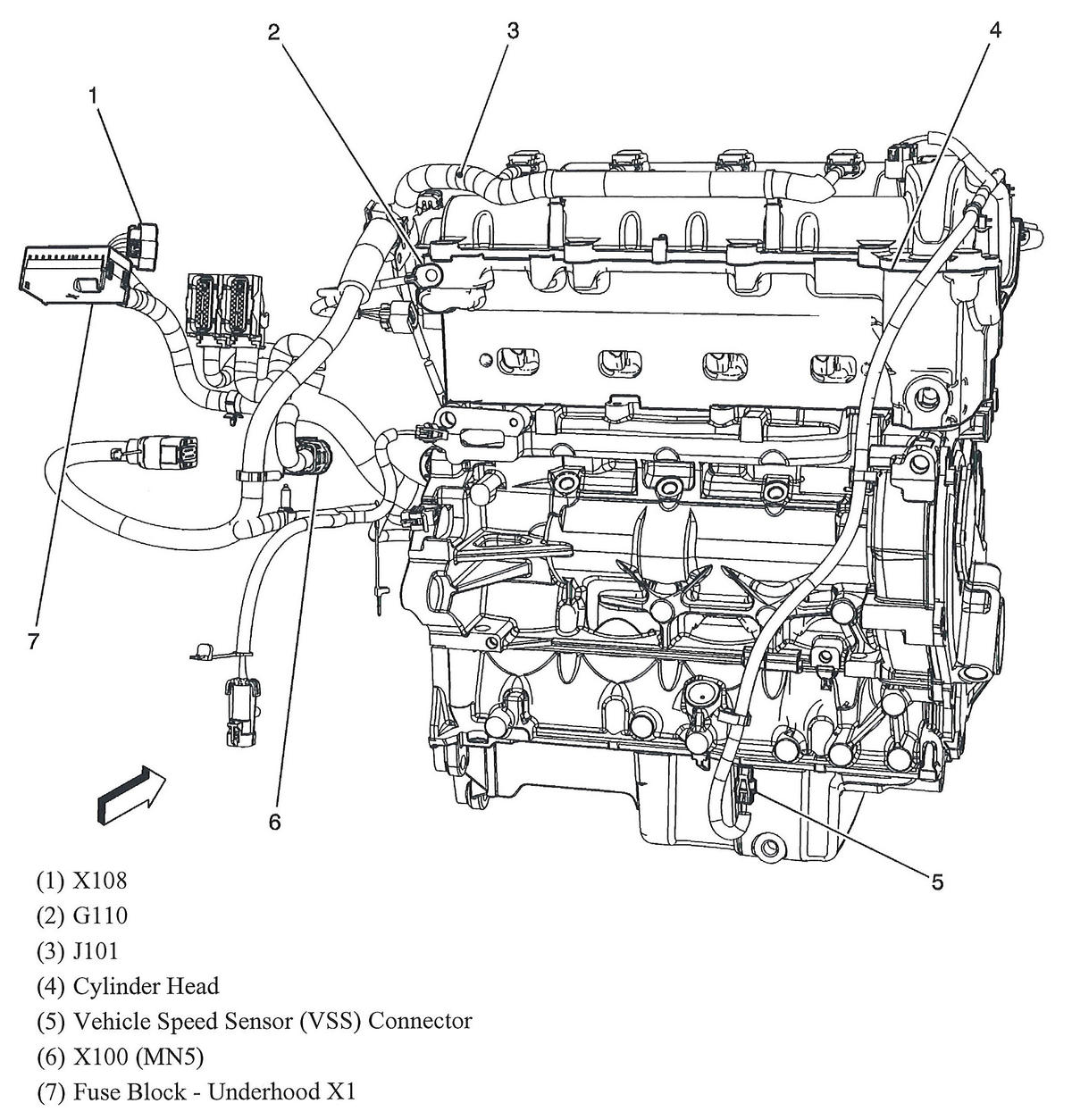

Fig 53: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Under Center Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 55: Automatic Transmission (4T65-E)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Rear Of Engine Compartment (2.4L/3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Vehicle Overview (Coupe & Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 59: HVAC Unit (Automatic)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Front Right Side Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

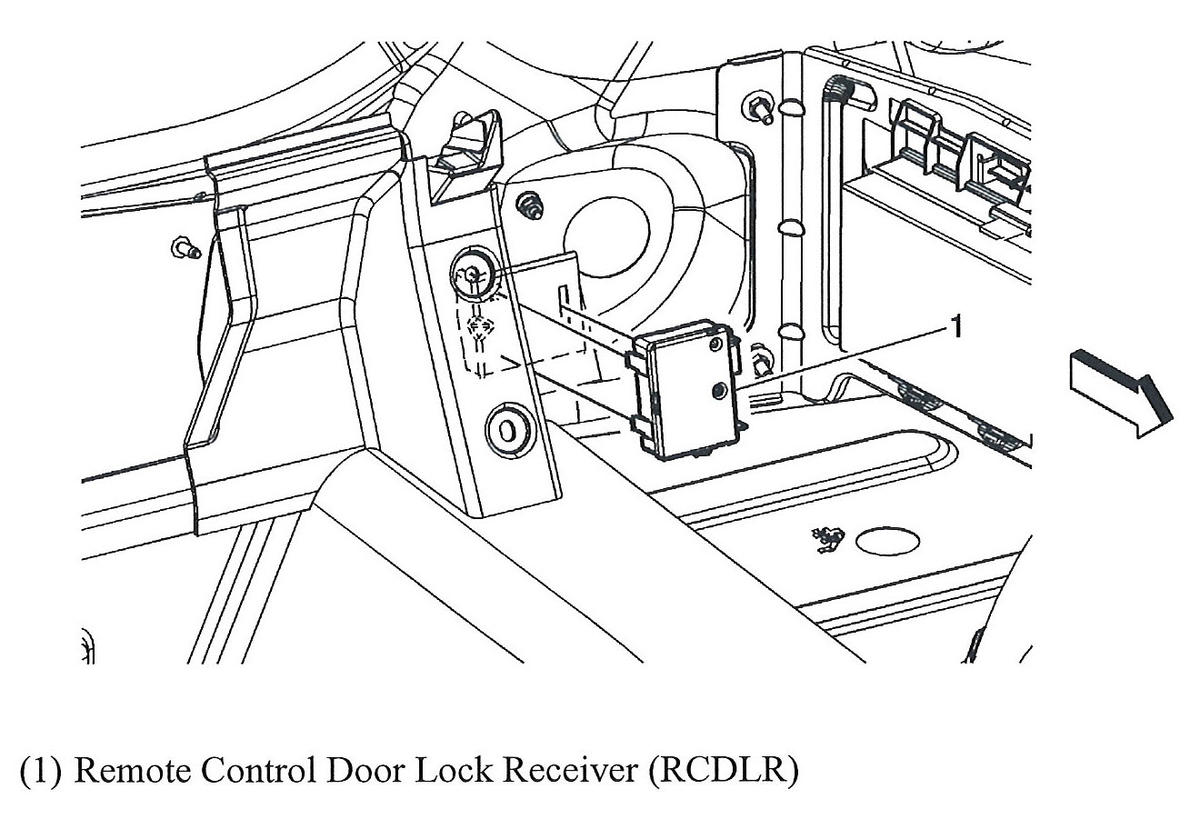

Fig 64: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 66: Shift Lock Control Component
Courtesy of GENERAL MOTORS CORP.
Fig 67: Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right Rear Of Manual Transmission
Courtesy of GENERAL MOTORS CORP.

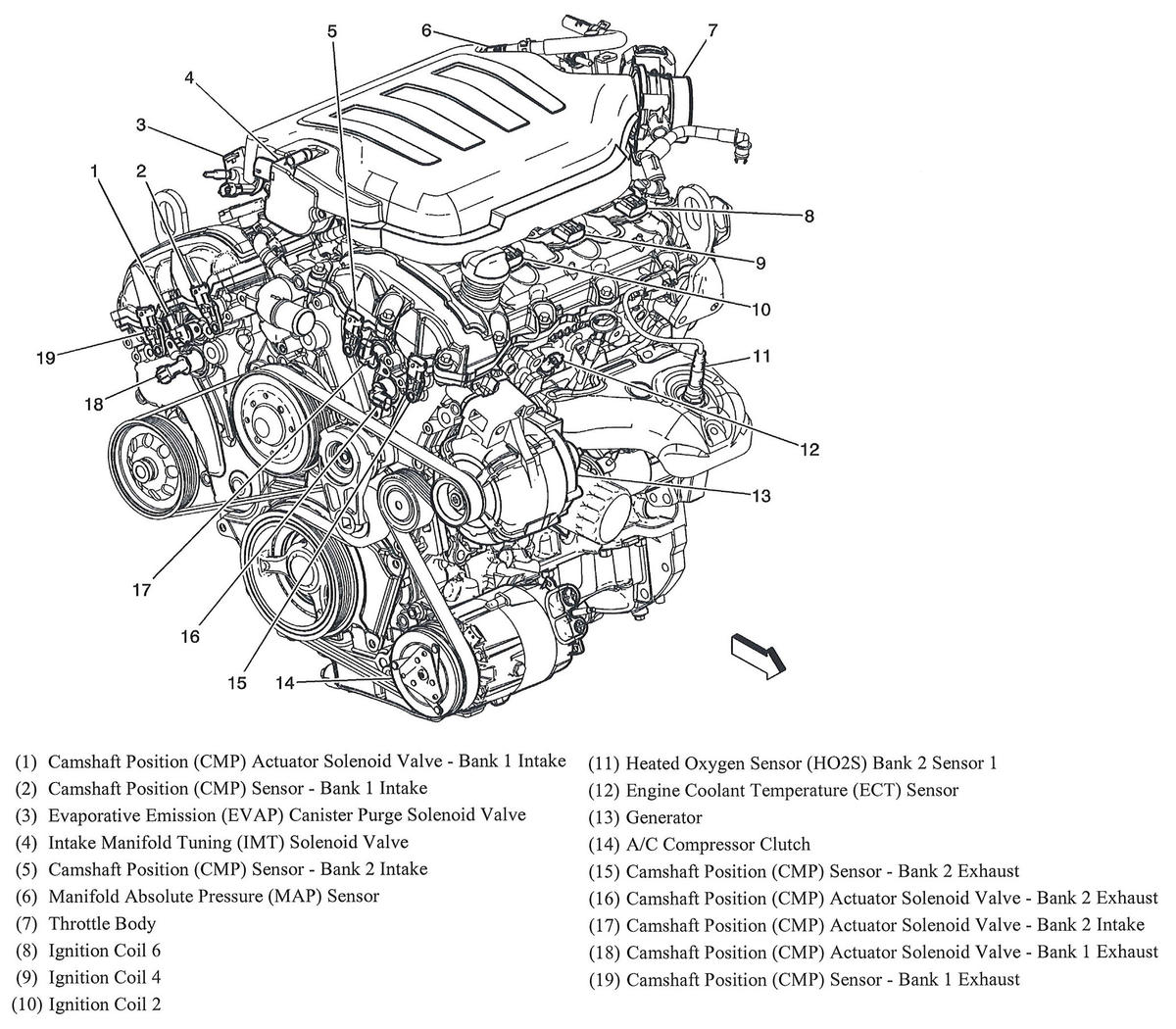

Fig 69: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Rear Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 75: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 77: Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Folding Top Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 79: Folding Top
Courtesy of GENERAL MOTORS CORP.
Fig 80: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

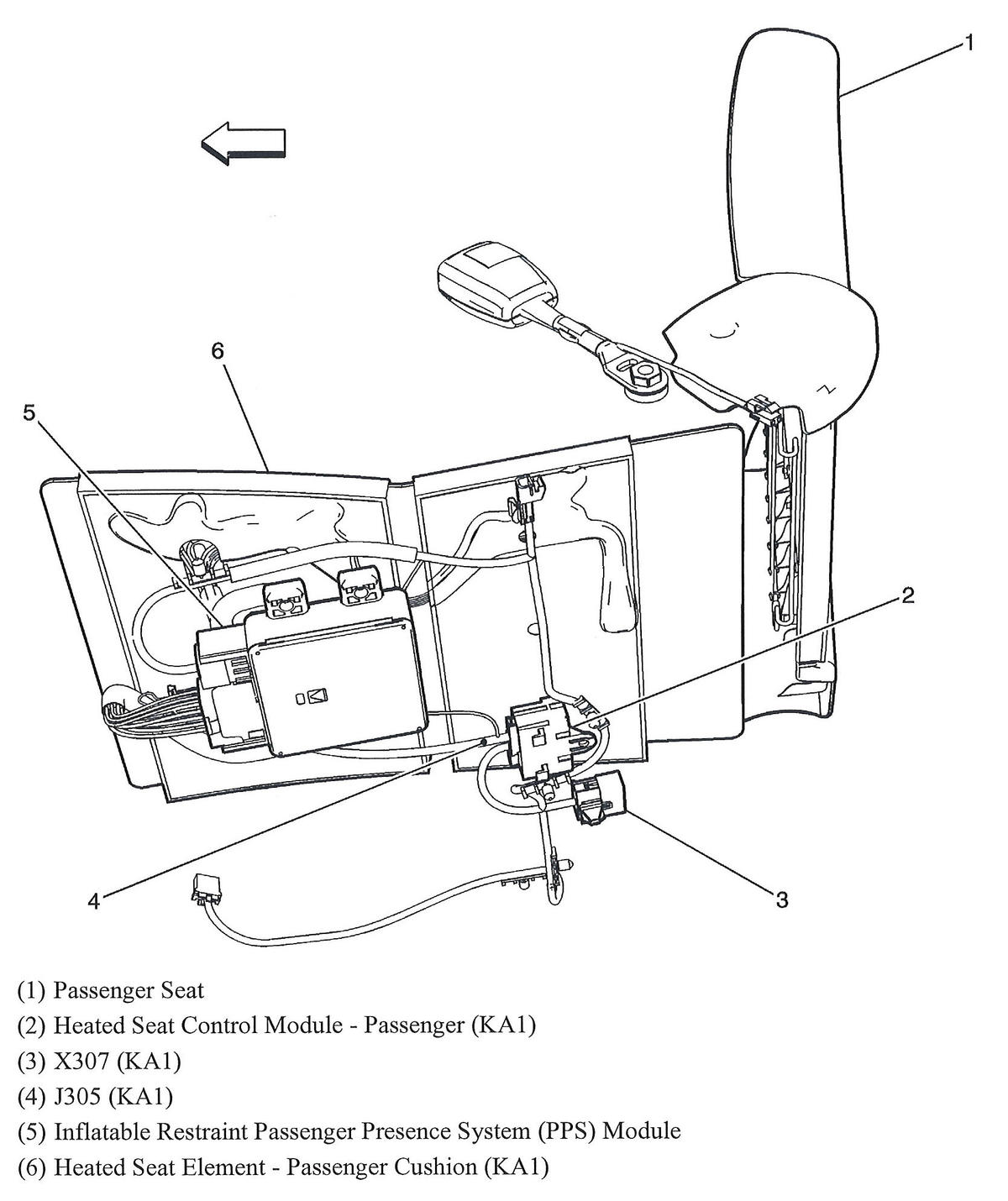

Fig 81: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 82: Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

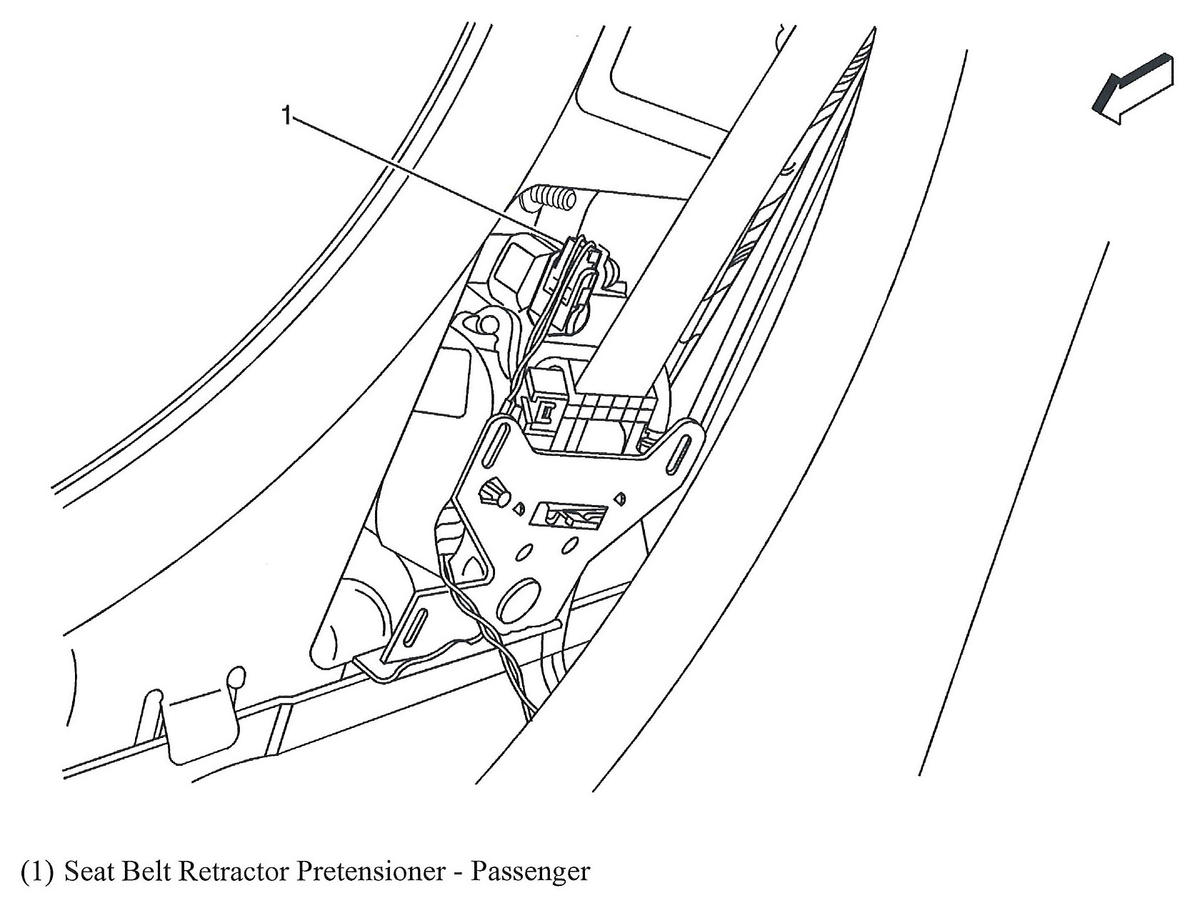

Fig 83: Lower Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 84: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 85: Folding Top
Courtesy of GENERAL MOTORS CORP.
Fig 86: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 87: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 88: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 89: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

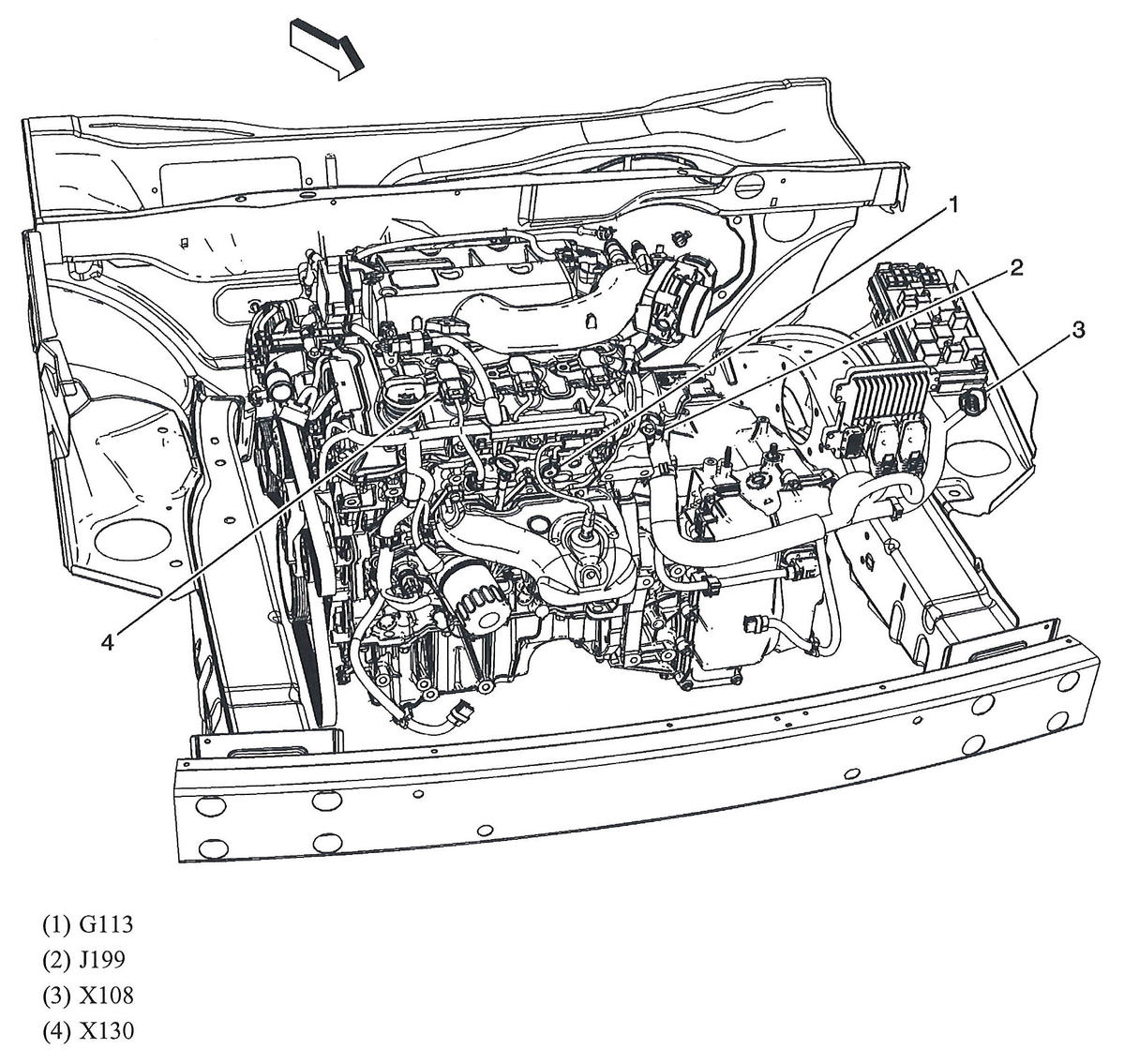

Fig 90: Engine Compartment (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Left Side Of Core Support
Courtesy of GENERAL MOTORS CORP.
Fig 92: Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 94: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 95: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 96: Right Rear Of Roof, Under Headliner
Courtesy of GENERAL MOTORS CORP.

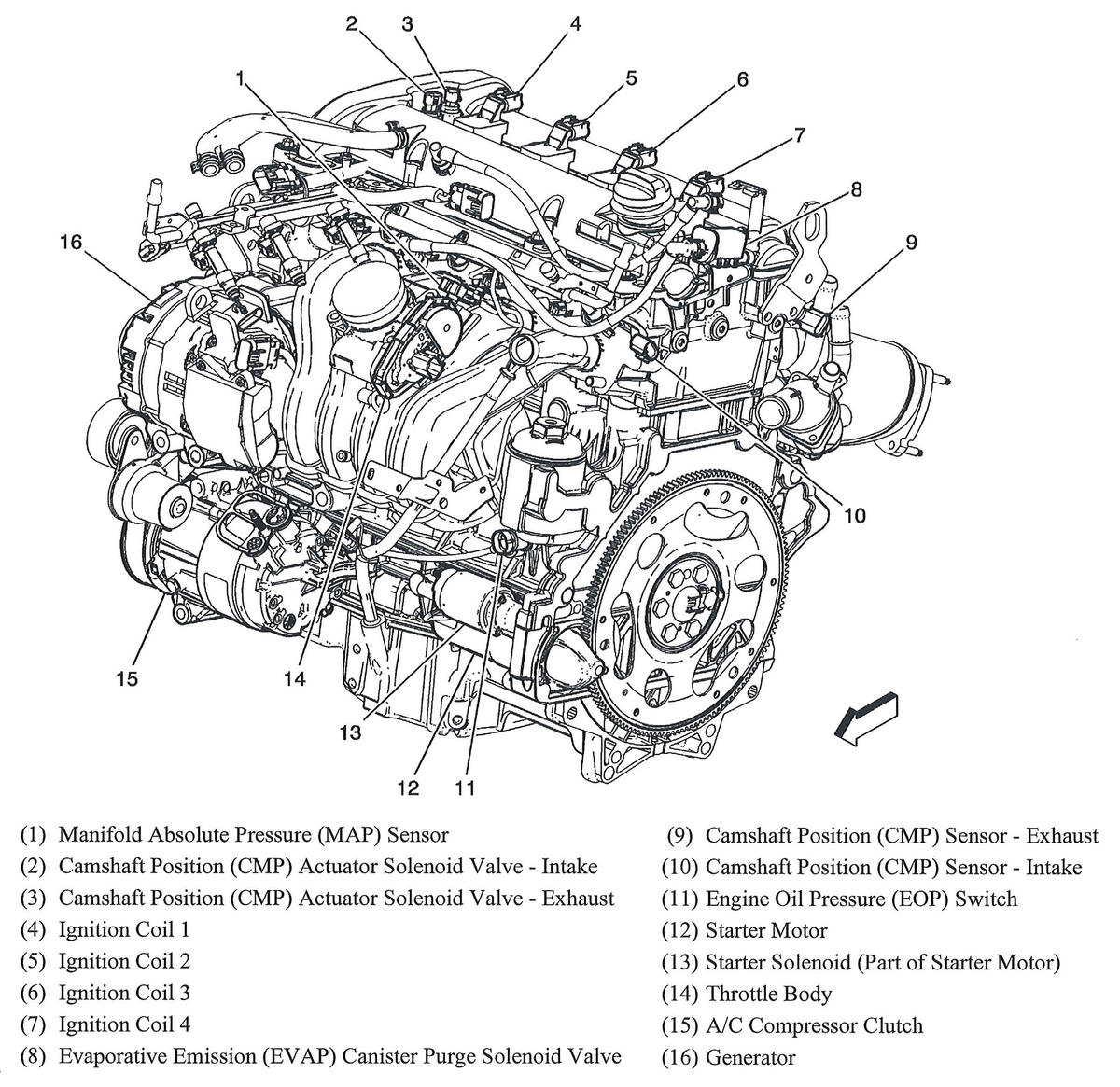

Fig 97: Top Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Front & Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Top Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 100: Top Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 101: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 102: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 103: Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

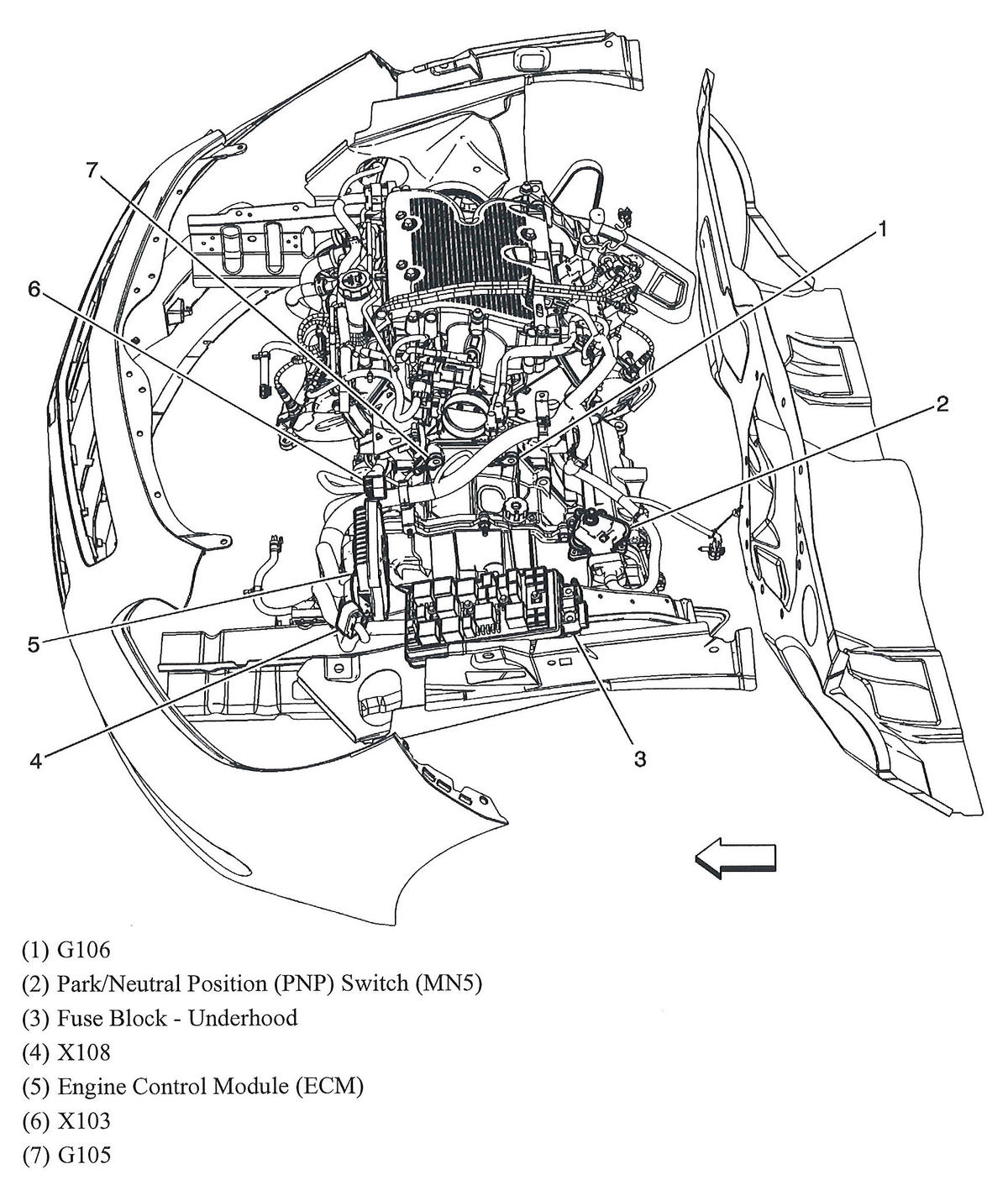

Fig 104: Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 105: Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.

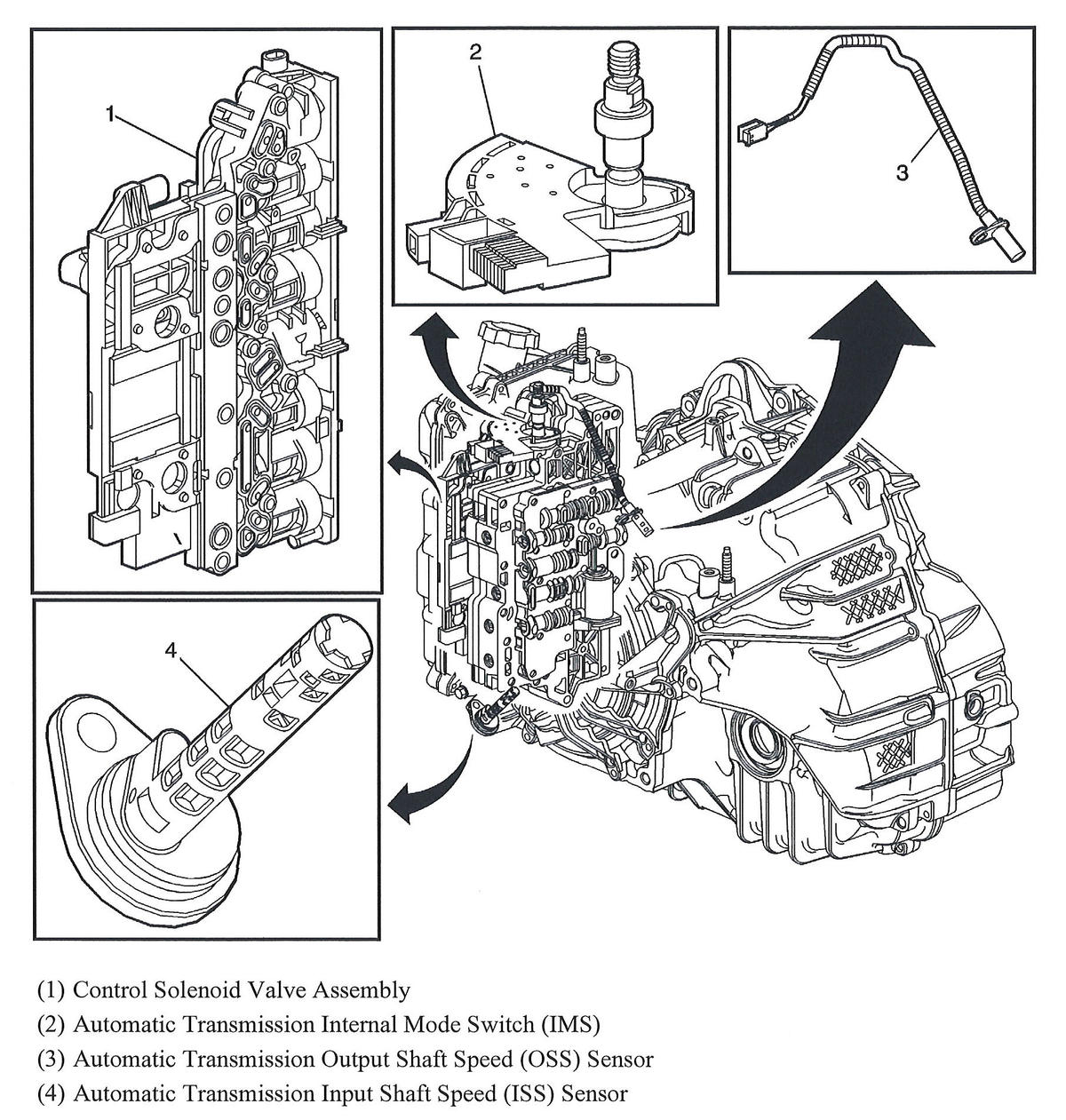

Fig 106: Automatic Transmission (6T70 & X23F)
Courtesy of GENERAL MOTORS CORP.

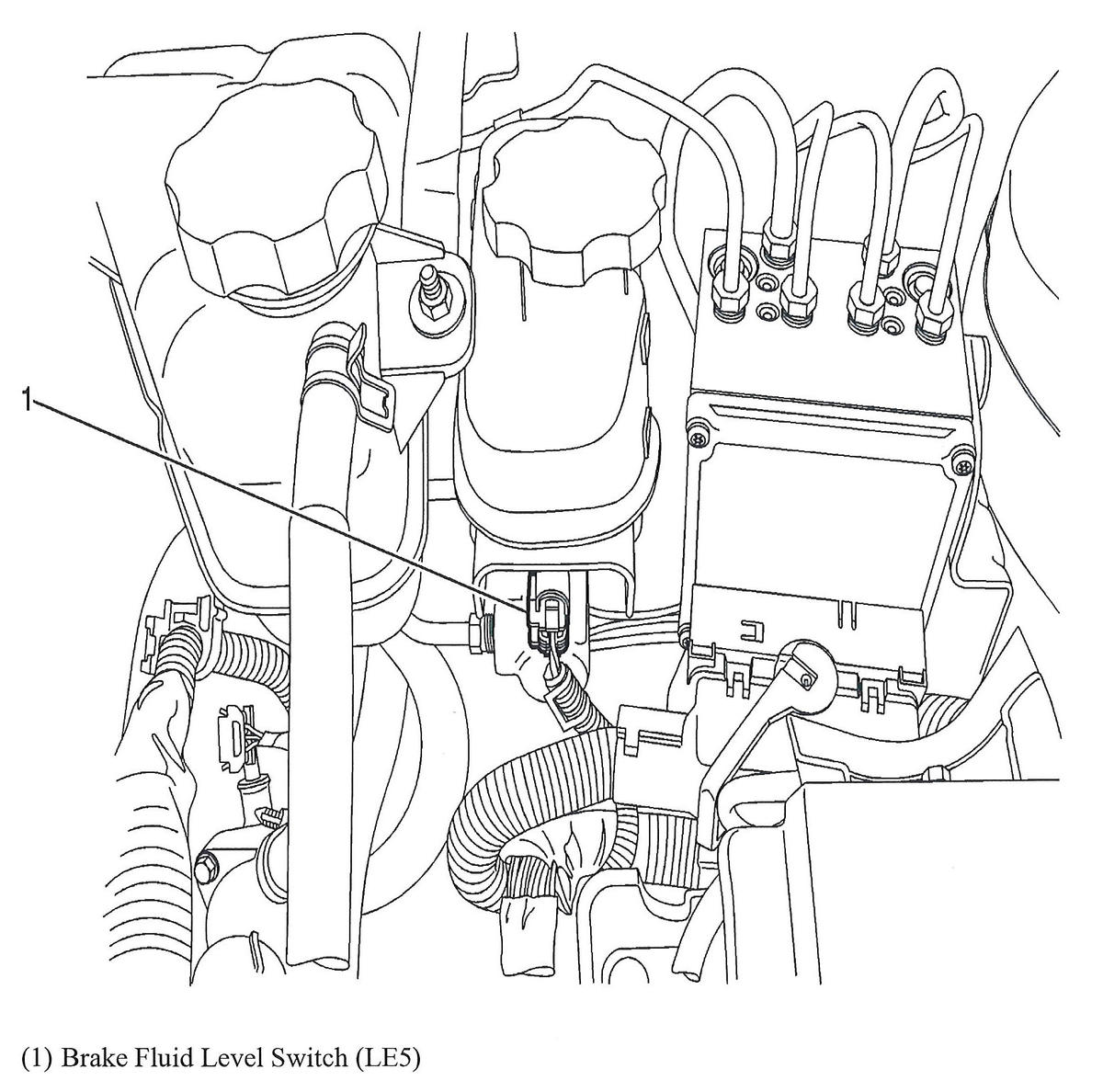

Fig 107: Left Rear Of Engine Compartment (2.4L)
Courtesy of GENERAL MOTORS CORP.

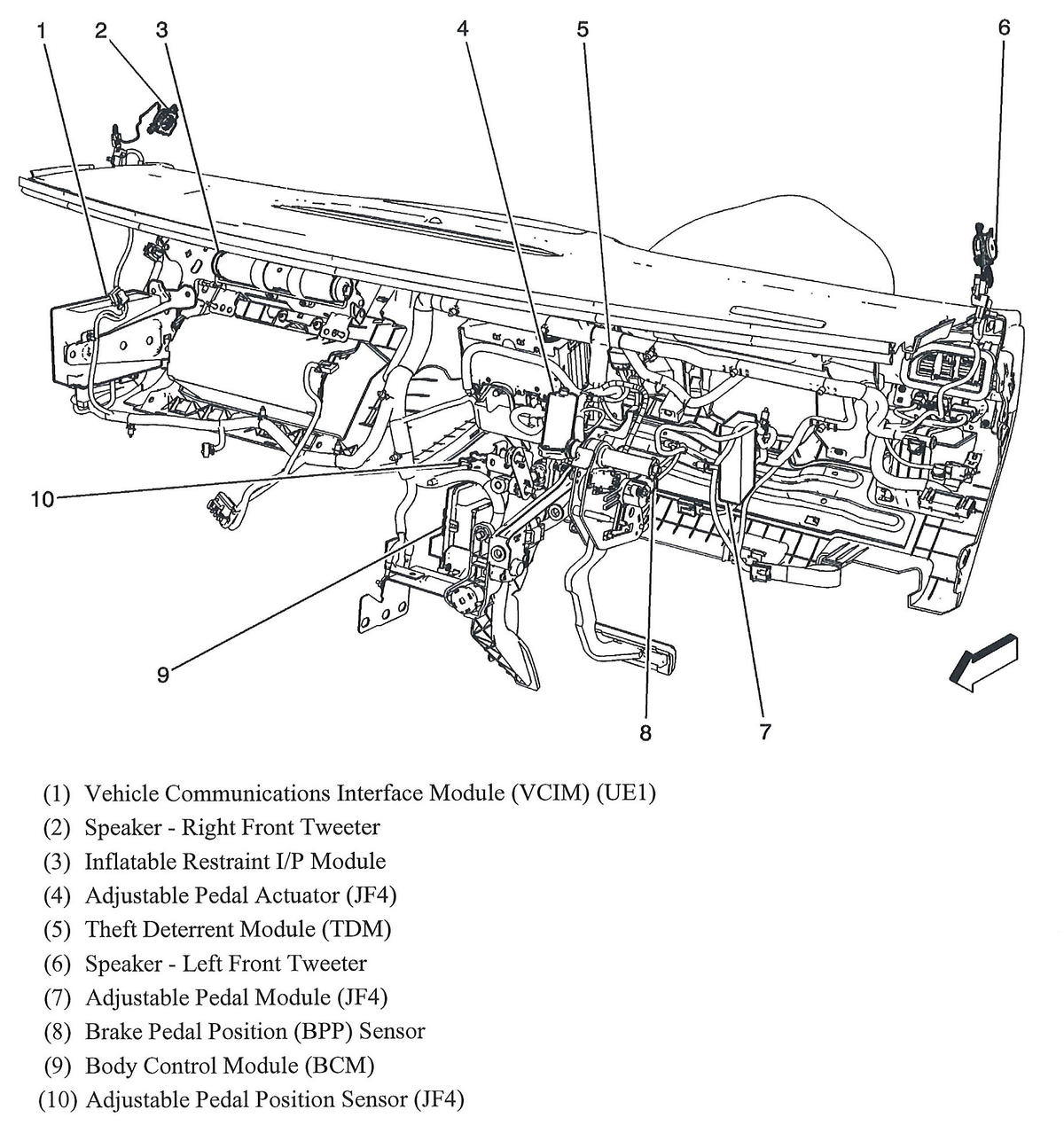

Fig 108: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 109: Front Of Luggage Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 110: Left Side Of Luggage Compartment (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 111: Folding Top Stowage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 112: Base Of Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 113: Base Of Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

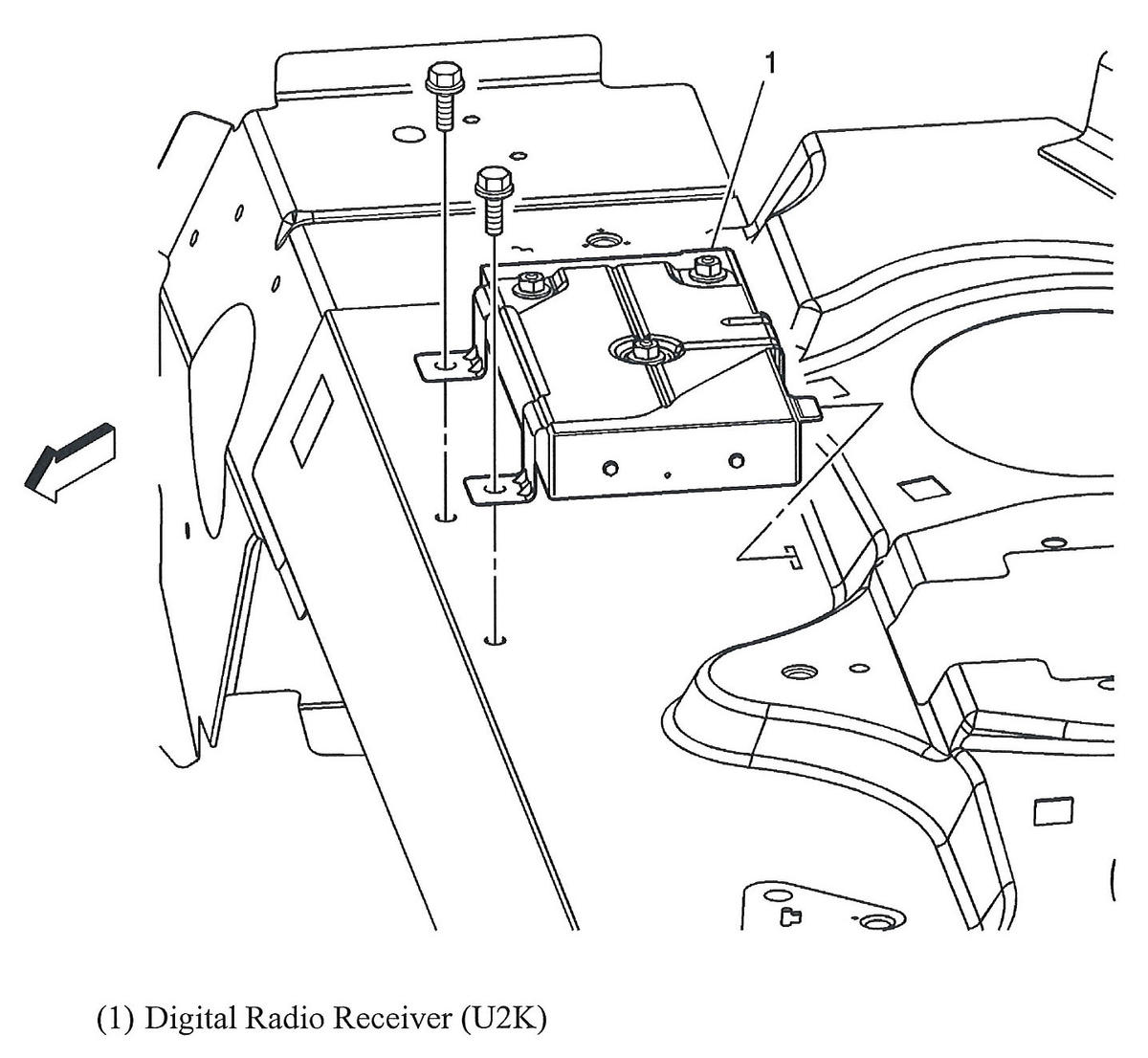

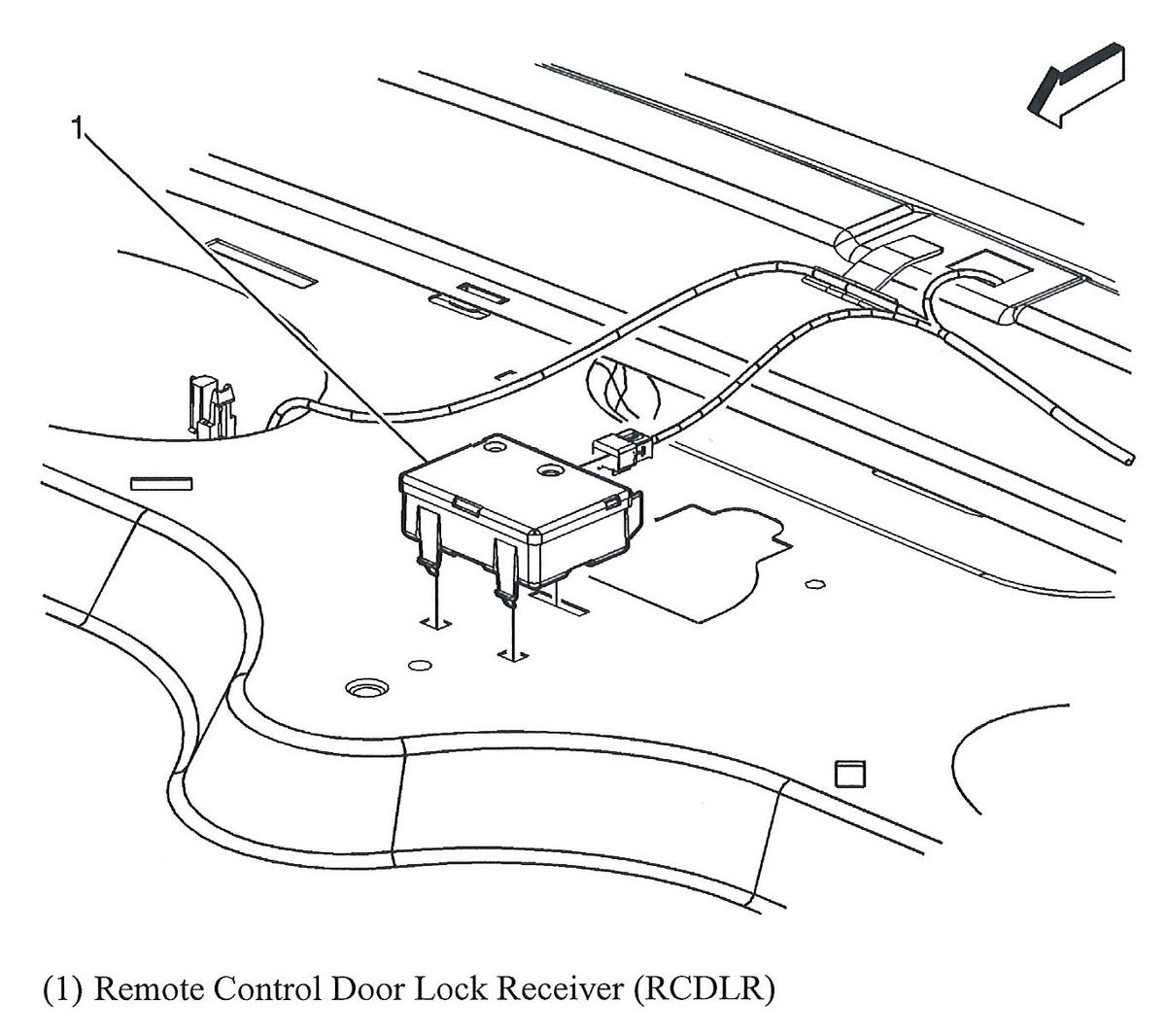

Fig 114: Rear Window Shelf (Sedan & Coupe)
Courtesy of GENERAL MOTORS CORP.

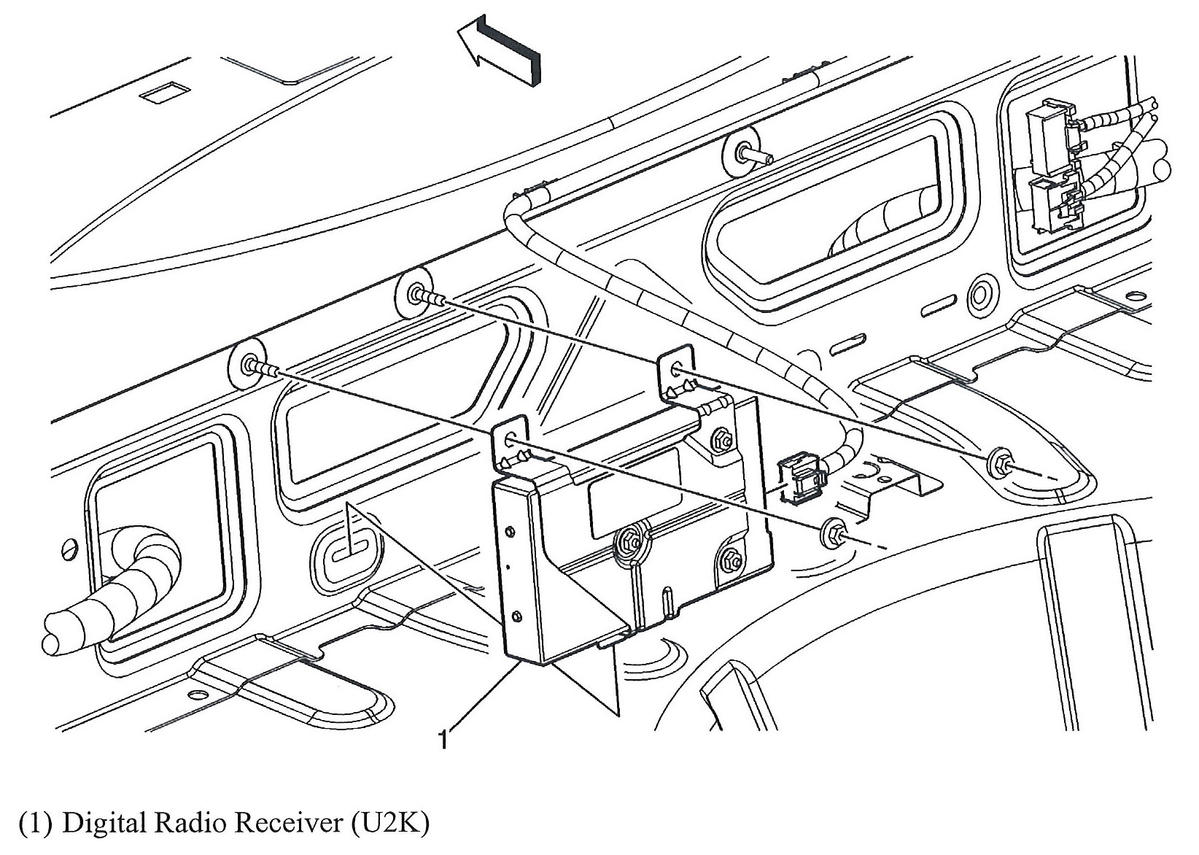

Fig 115: Rear Window Shelf (Sedan & Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 116: Right Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 117: Bottom Of Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
