Data Communication Schematics

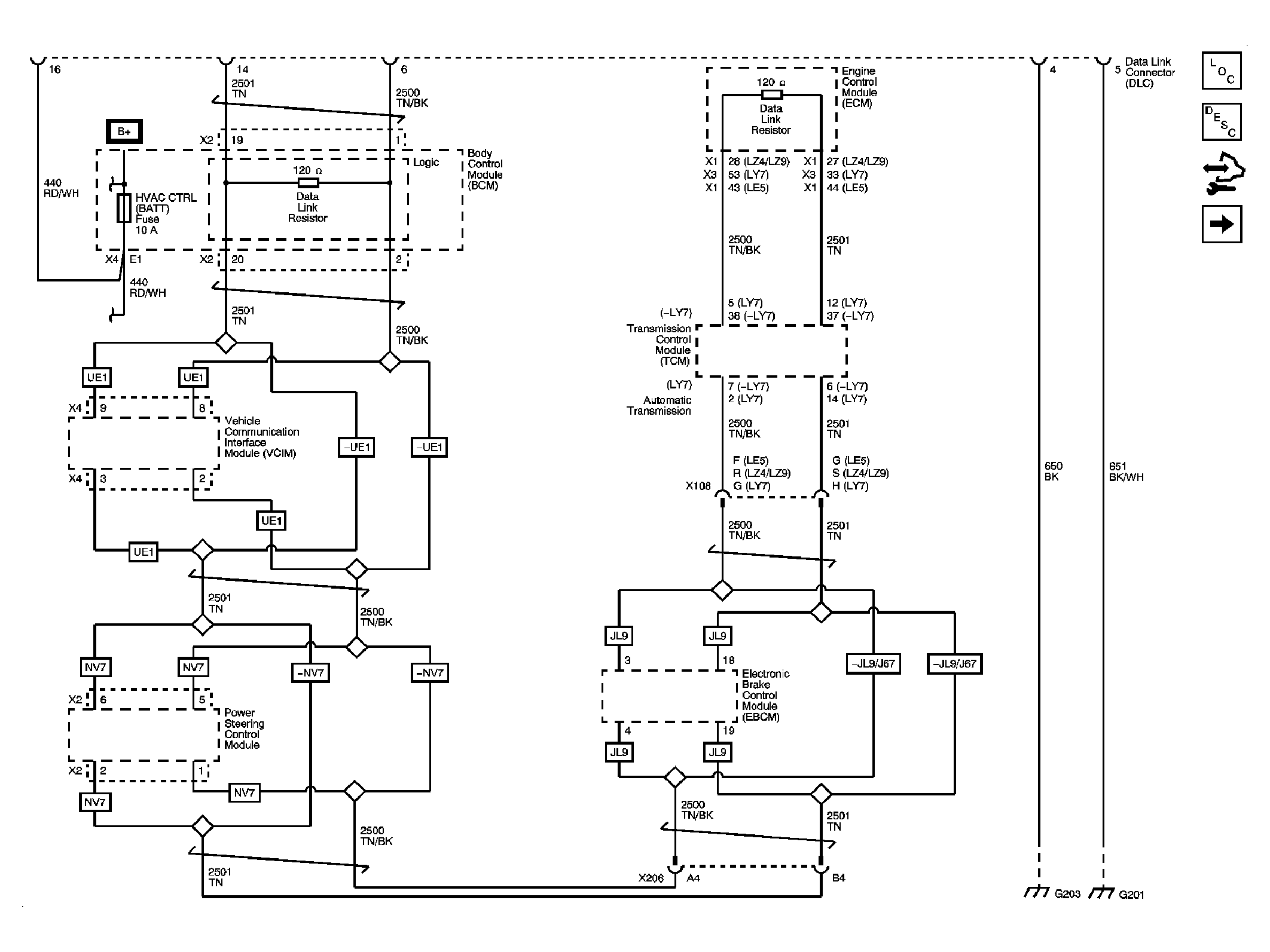

Fig 1: Power, Ground, High Speed GMLAN Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Low Speed GMLAN Serial Data Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Speed Serial Data Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
