Removal Procedure

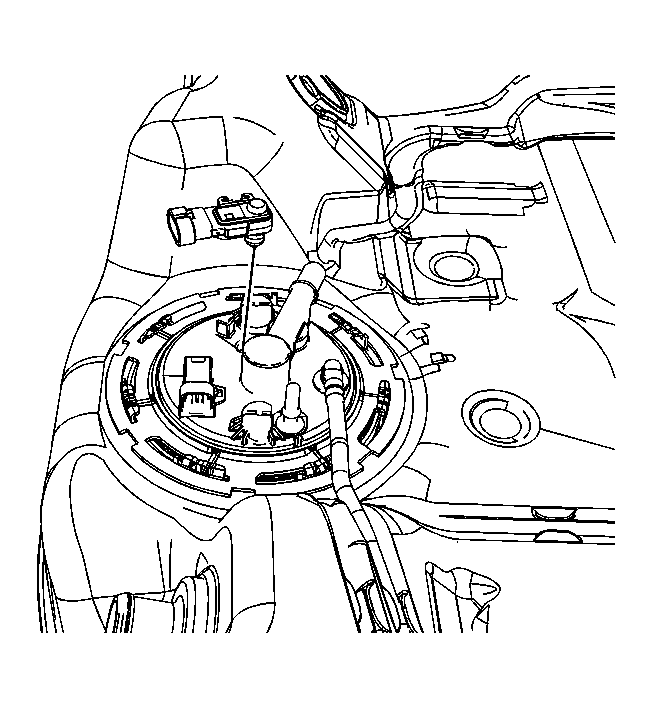

    Fig 1: Identifying Fuel Tank Pressure Sensor & Electrical Connector
    GM1580727Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Disconnect the fuel tank pressure sensor electrical connector.
  3. Remove the fuel tank pressure sensor.
