Fuel Level Sensor Replacement

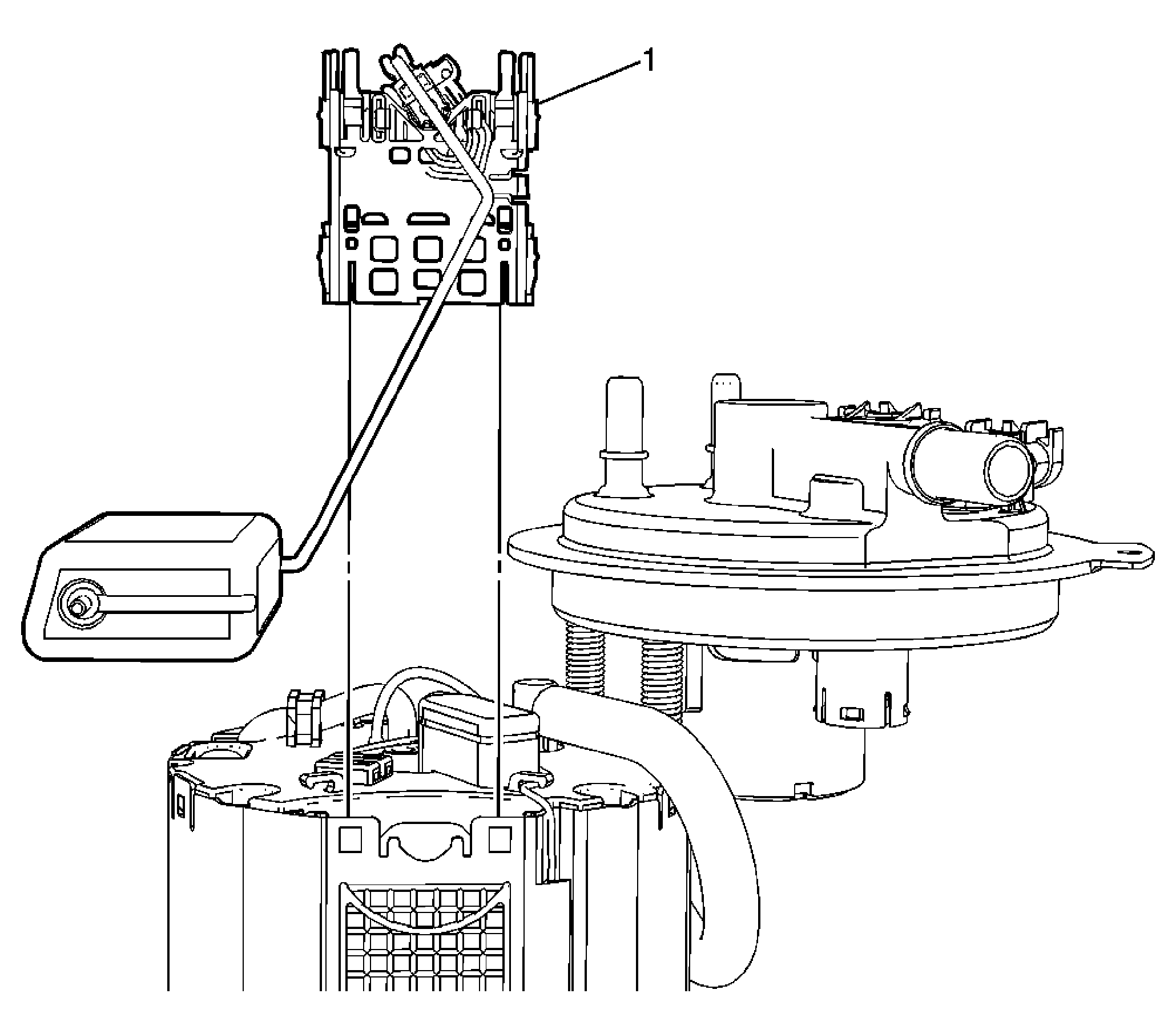

Fig 1: Identifying Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement
1	Fuel Level Sensor Procedure Push the plastic tabs forward and simultaneously pull upwards. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement

Fuel Level Sensor

Procedure
