Installation Procedure

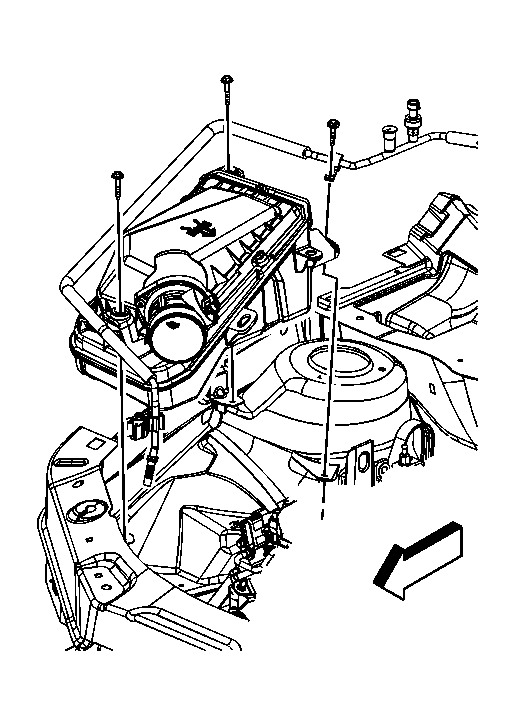

Fig 1: View Of Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the air cleaner assembly.

NOTE: Ensure that the air conditioning (A/C) condenser and evaporator tube assembly is placed on top of the air cleaner at the inboard rear attaching location prior to installing the bolt.

Install the air cleaner assembly bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).
Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
