Installation Procedure

    Fig 1: View Of CKP Sensor
    GM1587763Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring with clean engine oil.
  2. Install the CKP sensor.
    CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor stud.

    Tighten:  Tighten the stud to 10 N.m (89 lb in).

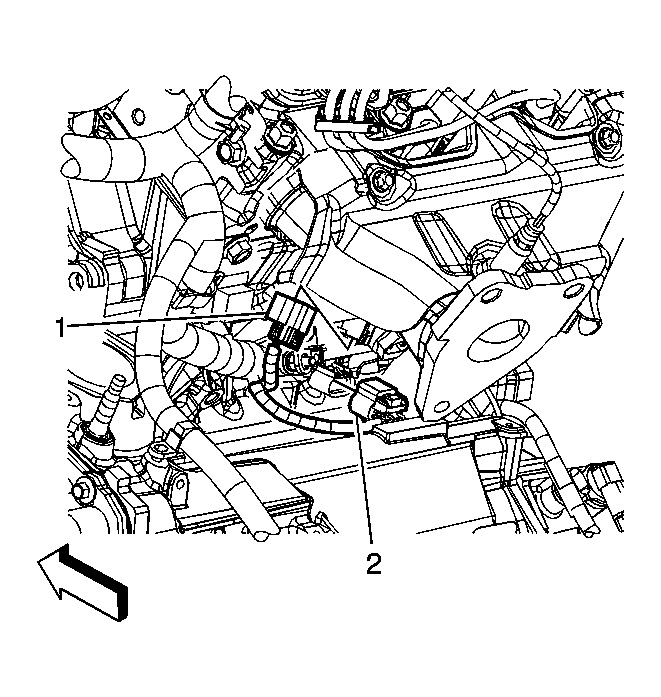

    4. Fig 2: View Of KS & CKP Sensor Electrical Connectors
    GM1583637Courtesy of GENERAL MOTORS CORP.
  4. Connect the CKP sensor electrical connector (2).
  5. Lower the vehicle.
