Installation Procedure

  1. Install the fuel and EVAP lines to the vehicle.

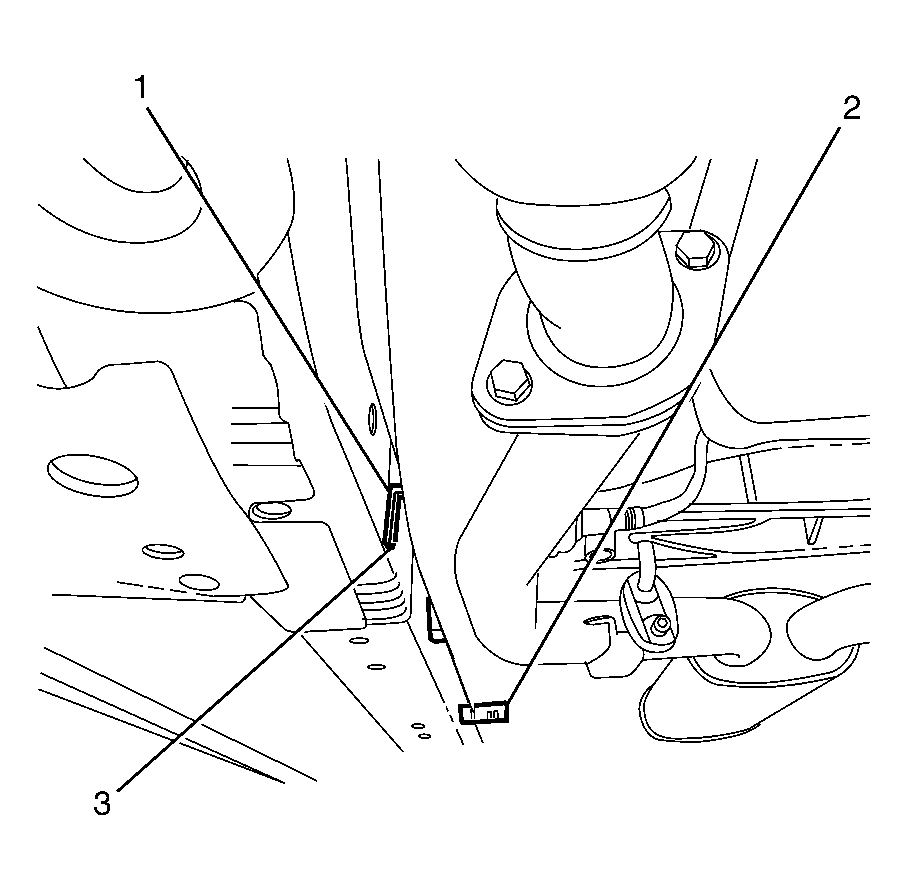

    2. Fig 1: Identifying Fuel Line Bracket Pop Rivets
    GM1949806Courtesy of GENERAL MOTORS CORP.
  2. Install all the fuel line bracket pop rivets (1, 2, 3) securing the fuel and EVAP pipes to the body tunnel.
    3. Fig 2: Locating Fuel Line Bracket Pop Rivets
    GM2045724Courtesy of GENERAL MOTORS CORP.
  3. Install all the fuel line bracket pop rivets securing the fuel and EVAP pipes to the vehicle body.
    4. Fig 3: Identifying Retaining Nuts & Bolts
    GM1949803Courtesy of GENERAL MOTORS CORP.
  4. Install the retaining bolts (1) and the retaining nuts (1) securing the rear stone guard.
  5. Connect the fuel and EVAP lines at the engine compartment.
  6. Connect the fuel and EVAP lines at the fuel tank. Refer to Fuel Tank Replacement .
  7. Install the engine. Refer to Engine Replacement .
  8. Install the exhaust and exhaust heat shields. Refer to Exhaust System Replacement (V6 - For Access) or Exhaust System Replacement (V6 - Complete) .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
