Fuel Hose/Pipes Routing Diagram

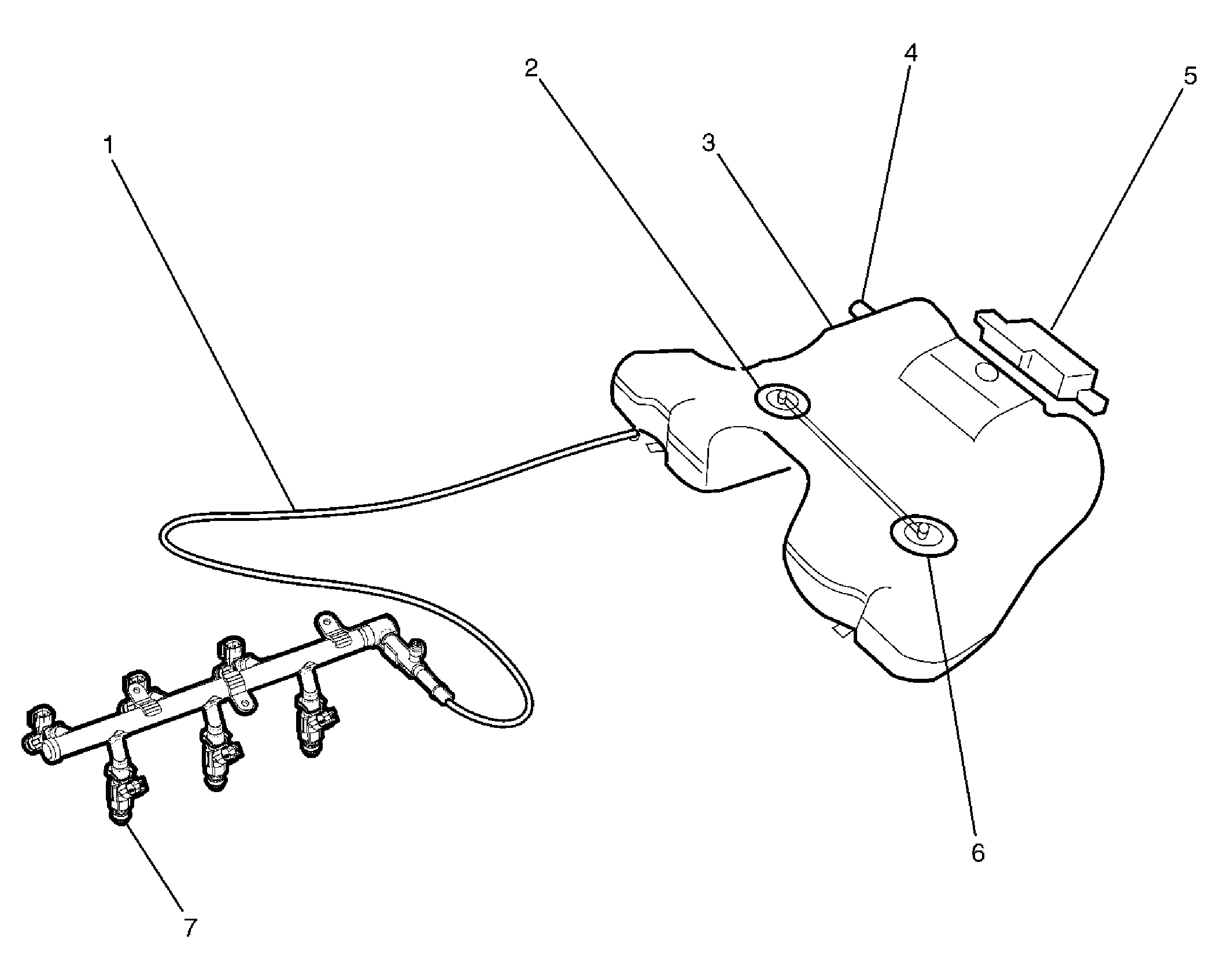

Fig 1: Identifying Fuel Hose/Pipes Routing Diagram
GM1964006Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel supply tube
2 Primary Fuel module
3 Fuel tank
4 Filler tube
5 EVAP canister
6 Secondary fuel module
7 Injectors and fuel rail

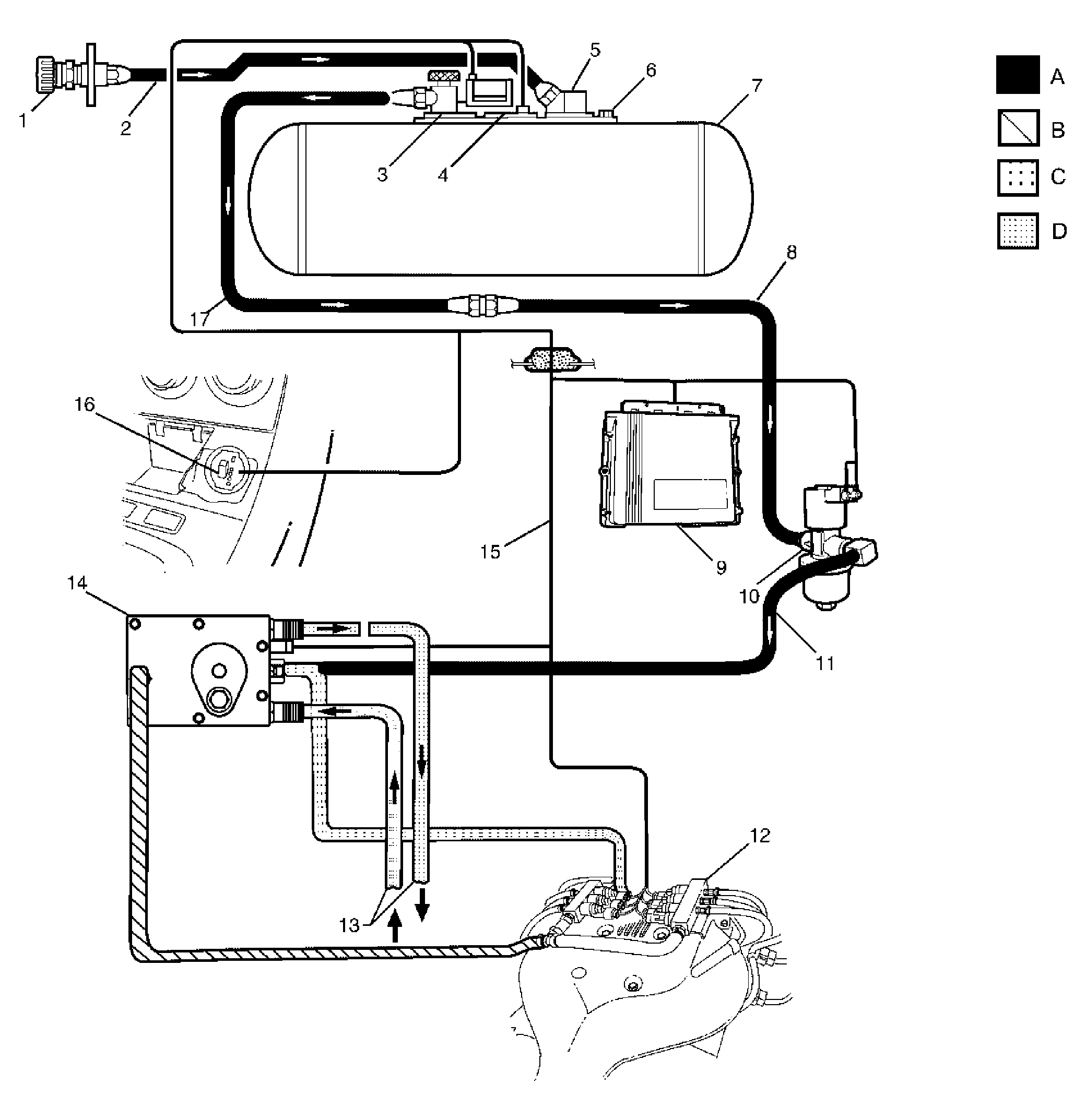

Fig 2: LPG System Schematic
GM2082583Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 LPG Filler Valve
2 Filler Line
3 Rear Lock Off/Service Solenoid Valve Assembly
4 LPG Tank Assembly
5 AFL
6 Fuel Contents Gauge / Sender
7 LPG Tank
8 Intermediate Service Line
9 LPG Control Module
10 Front LPG Lock-Off (including filter)
11 Front Service Line
12 LPG Fuel Injectors and Manifold (2 of)
13 Coolant Hoses to and from Engine
14 Reducer
15 Wiring Harness
16 Fuel Mode Switch and Fuel Level
17 Rear Service Line
18 LPG Filter
a Liquid
b Vapour
c Vacuum
d Coolant
