Removal Procedure
WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headliner assembly. Refer to Headlining Trim Panel Replacement .

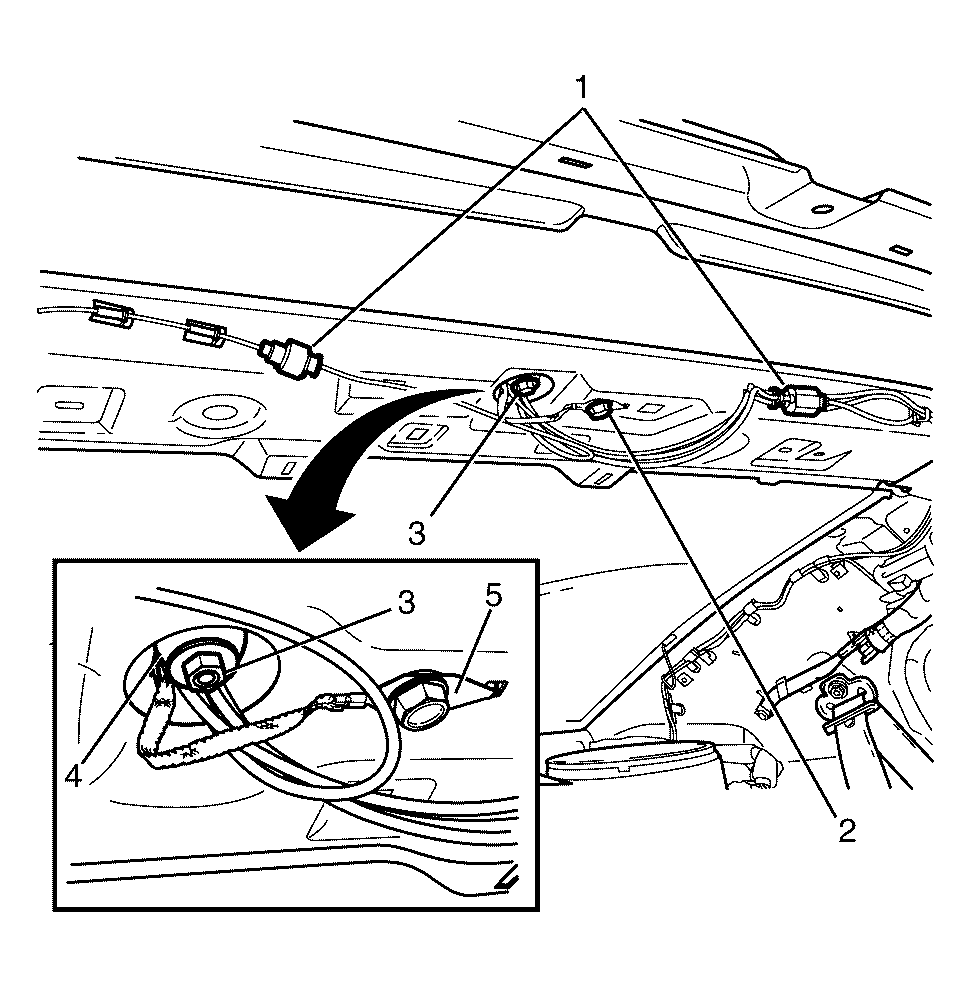

- Disconnect the antenna harness connectors (1).
- Remove the antenna module ground to roof panel retaining bolt (2).
- Remove the antenna module ground (5).
- Remove the antenna module to roof panel retaining bolt (3).
- Remove the retaining clip (4) securing the antenna module to the roof.
- From outside the vehicle, remove the antenna module assembly, threading the harness through the roof cavity.
