Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

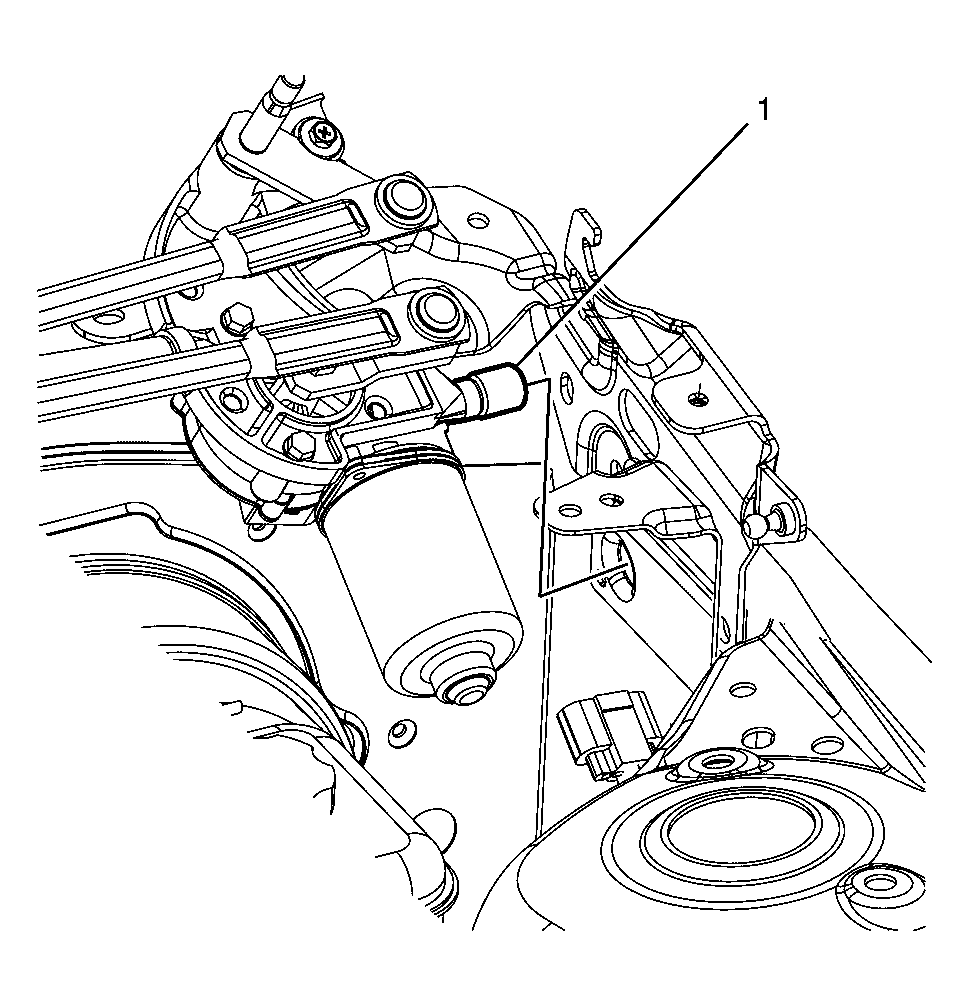

Fig 1: Identifying Locator Lug

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the locator lug (1) is inserted before attempting to fasten the retaining bolts.

Install the wiper motor module onto the bulkhead.

Fig 2: Identifying Wiper Motor Module To Bulkhead Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the wiper motor module to bulkhead retaining bolts (1).
Tighten: Tighten the bolts to 8 N.m (71 lb in).

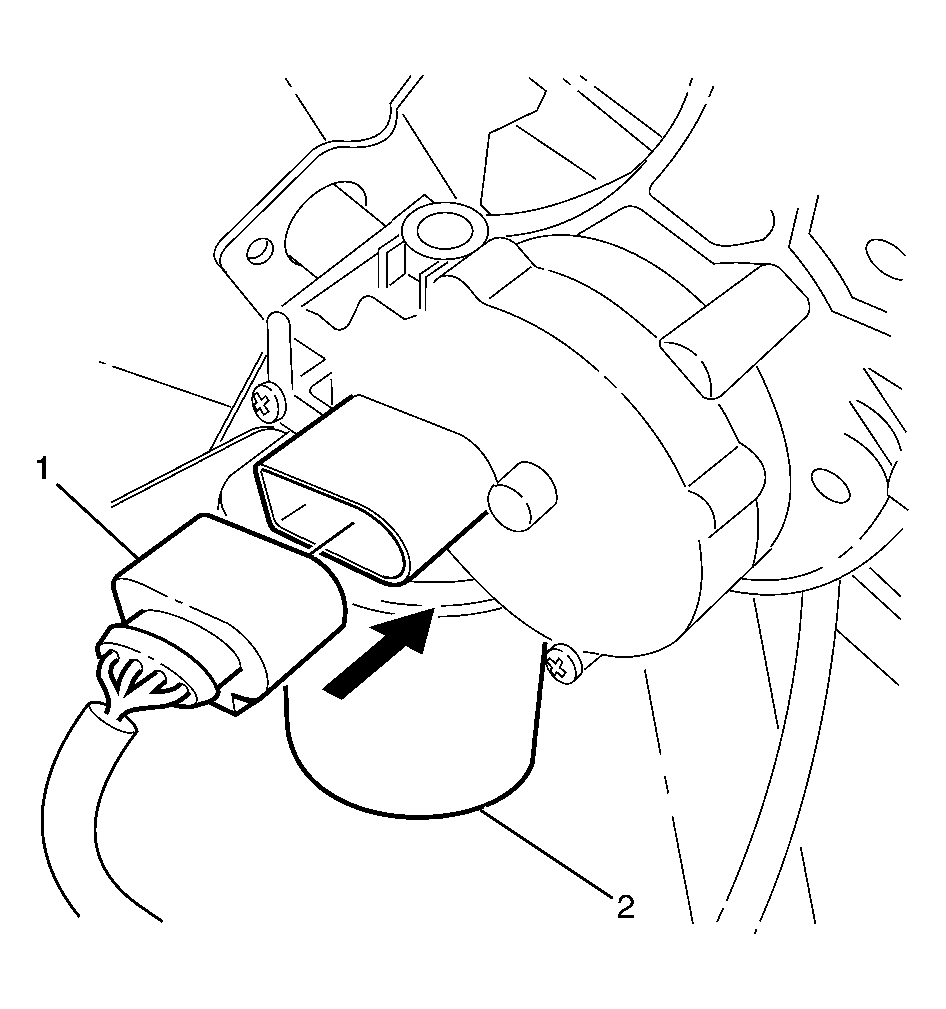

Fig 3: Identifying Electrical Connector & Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the wiper motor (2).
To ensure the wiper motor module is in the correct position :
- Turn the ignition ON and wait for the wiper motor module to assume the park position.
- Turn the ignition OFF.
- Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
- Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
- Test the wiper and washer system for correct operation.
