Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

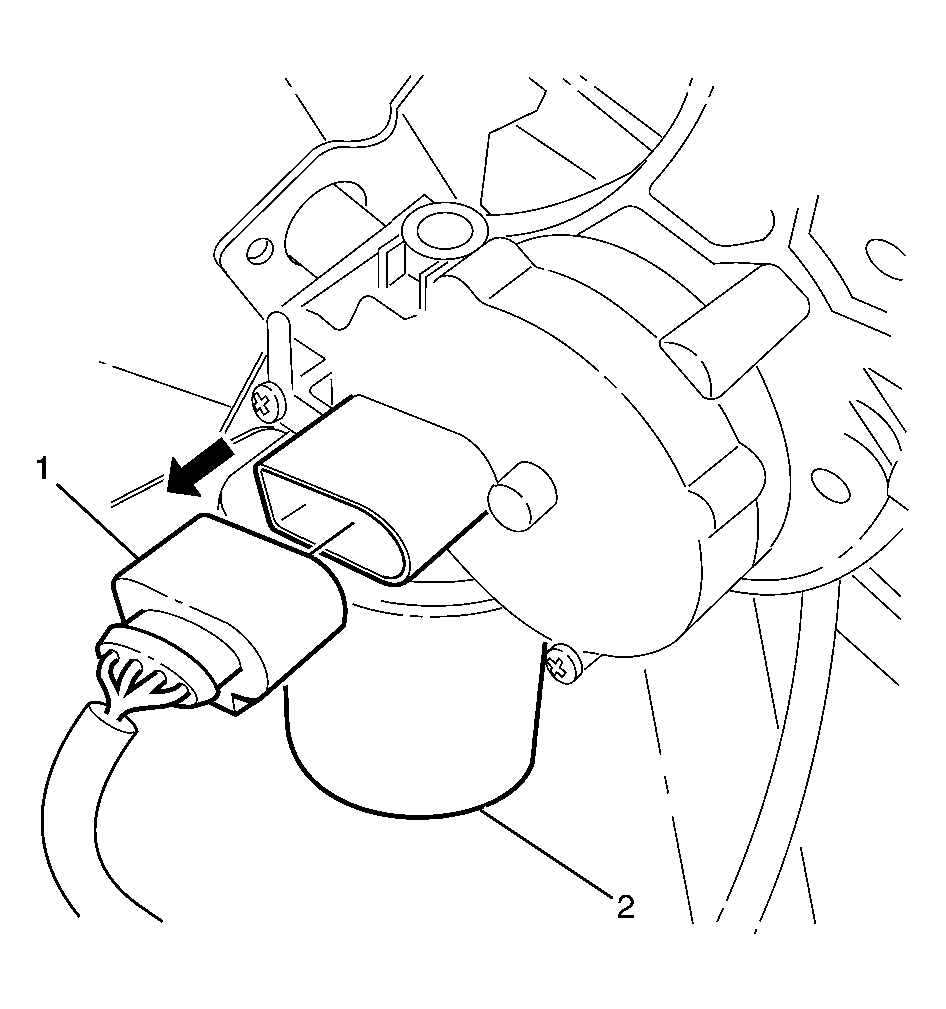

Fig 1: Identifying Electrical Connector & Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector (1) from the wiper motor (2).

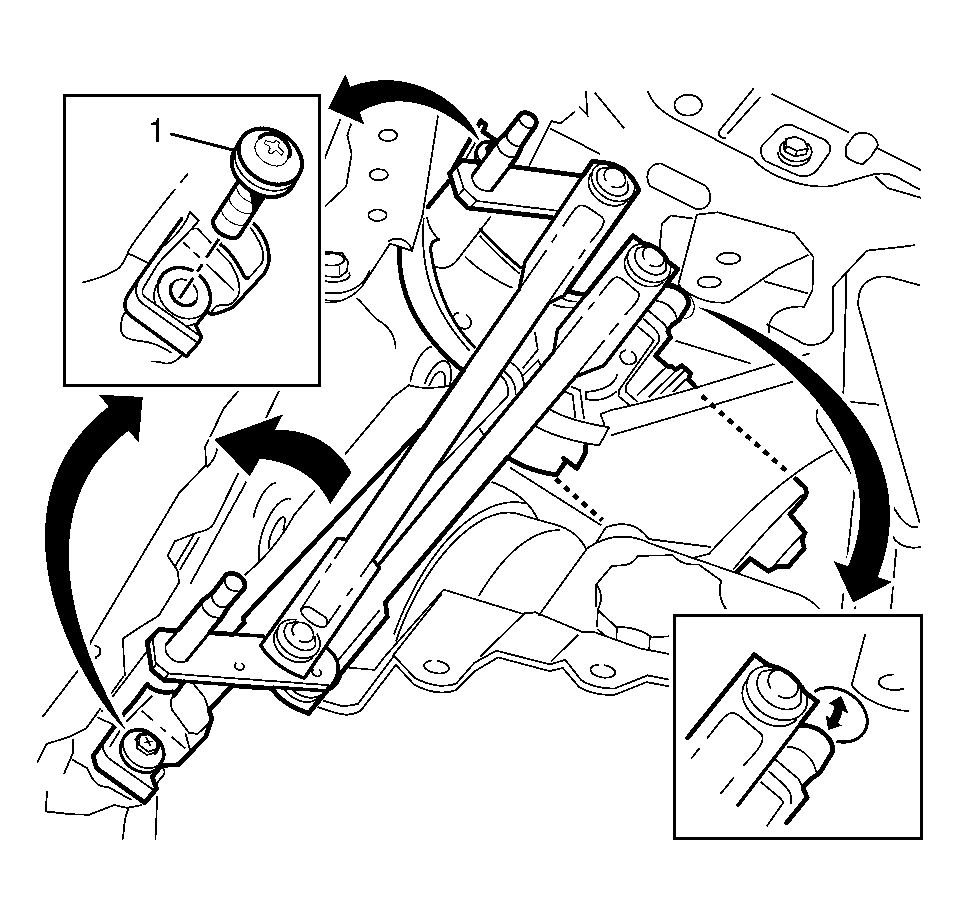

Fig 2: Identifying Wiper Motor Module To Bulkhead Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the wiper motor module to bulkhead retaining bolts (1).
Remove the wiper motor module from the bulkhead.
