Installation Procedure

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

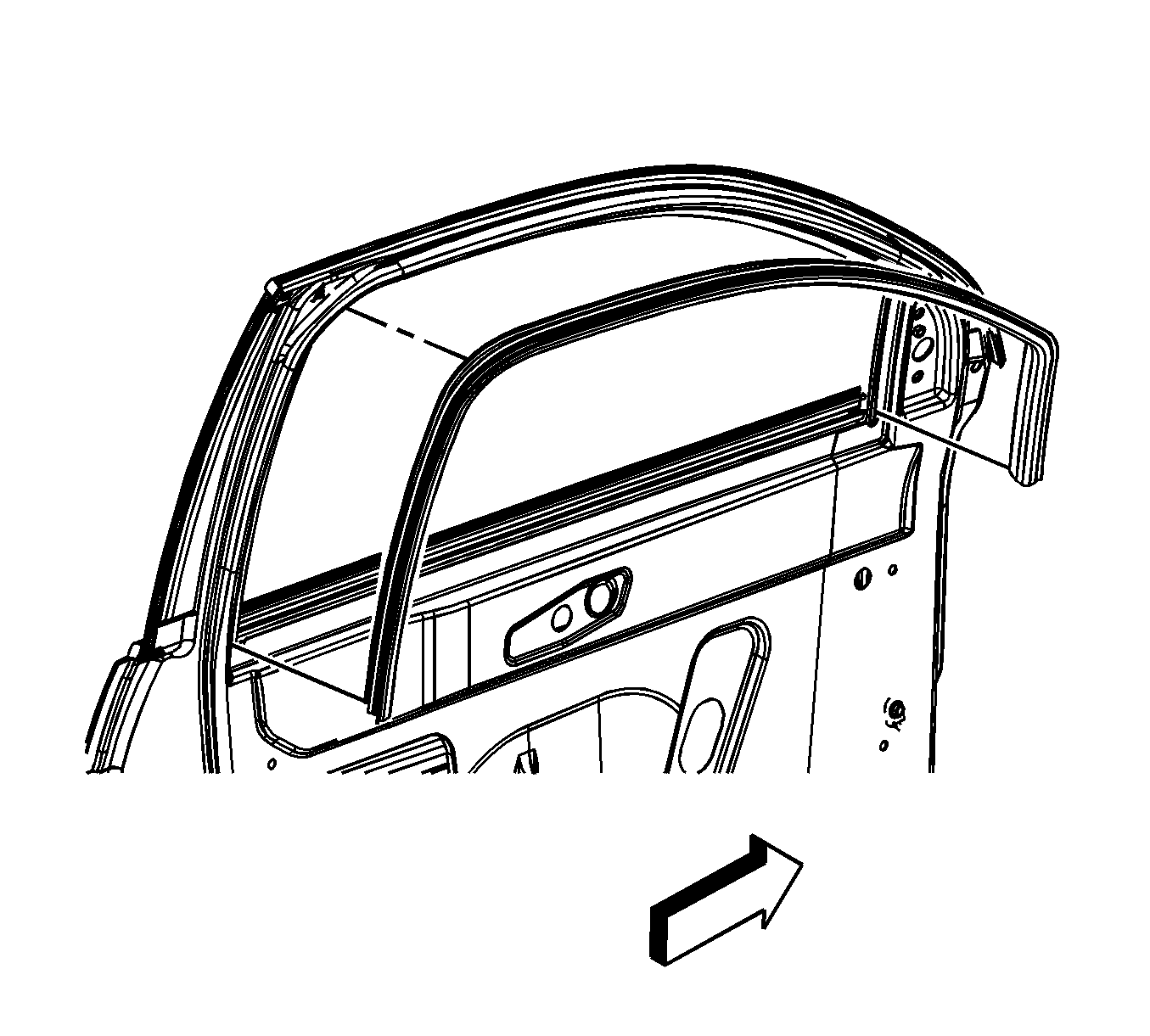

    Fig 1: Identifying Front Side Door Window Inner Weatherstrip
    GM1847490Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: It is Not necessary to remove the inner door trim panel.
    IMPORTANT: Install the weatherstrip/run channel by fitting both corners to the upper door frame and then pushing inward on the sides.
  1. Position the window weatherstrip to the door starting in the upper corners.
  2. Firmly seat the window weatherstrip to the door, working out in both directions.
  3. Inspect the window to ensure the weatherstrip is properly positioned.
  4. Inspect the window for proper operation.
  5. Close the door.
