Installation Procedure

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

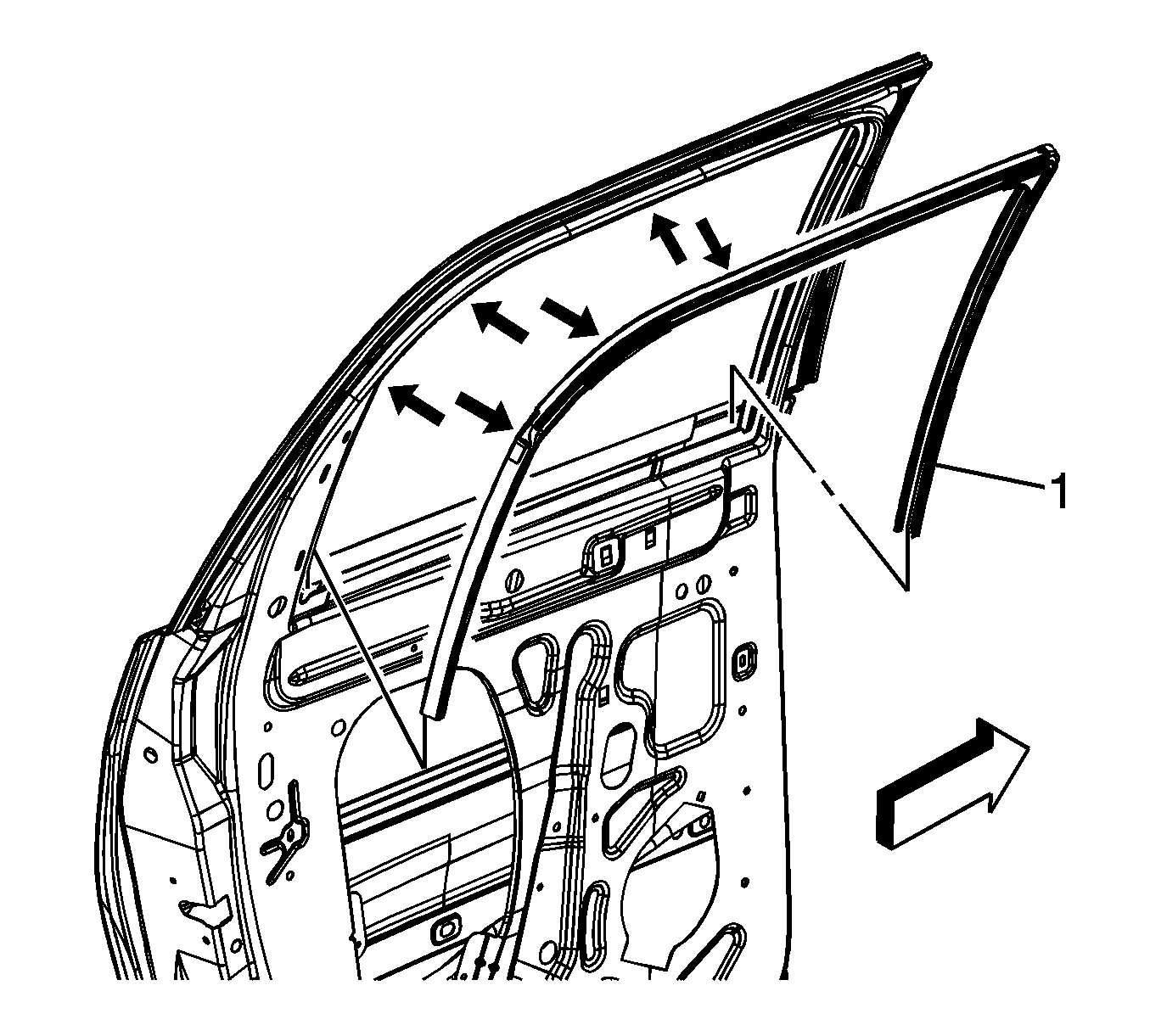

    Fig 1: View Of Rear Side Door Window Inner Weatherstrip
    GM1840775Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install the weatherstrip/run channel by fitting both corners to the upper door frame and then pushing inward on the sides.
  1. Install the weatherstrip/run channel (1) to the door.
  2. Press the weatherstrip/run channel (1) into the window frame opening.
