Front Suspension Components

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

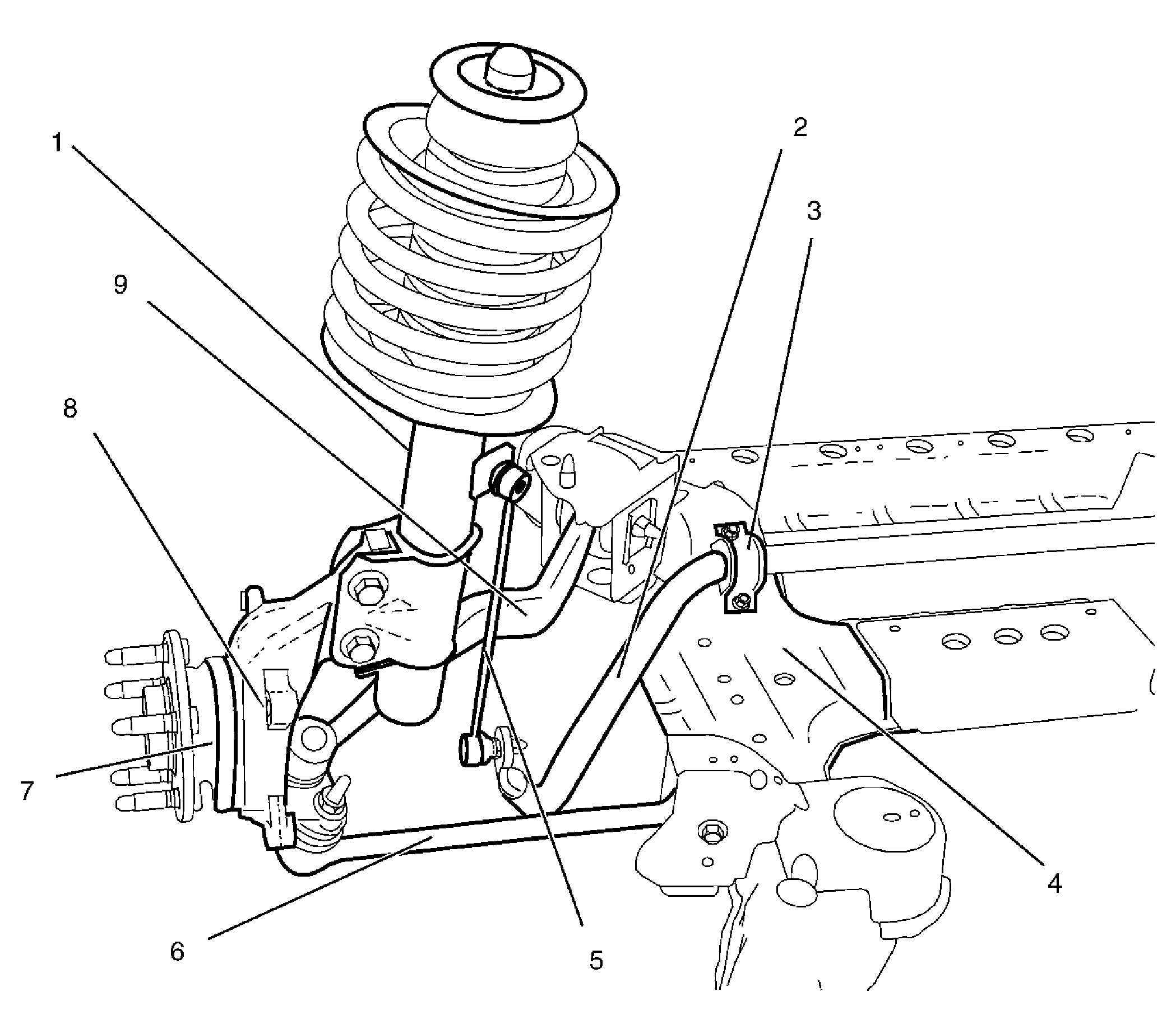

Fig 1: Front Suspension
GM1949962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Strut Assembly
2 Stabilizer Bar
3 Stabilizer Bar Insulator Bracket
4 Subframe
5 Stabilizer Bar Link
6 Lower Control Arm
7 Wheel Hub Assembly
8 Steering Knuckle
9 Front Caster Arm
