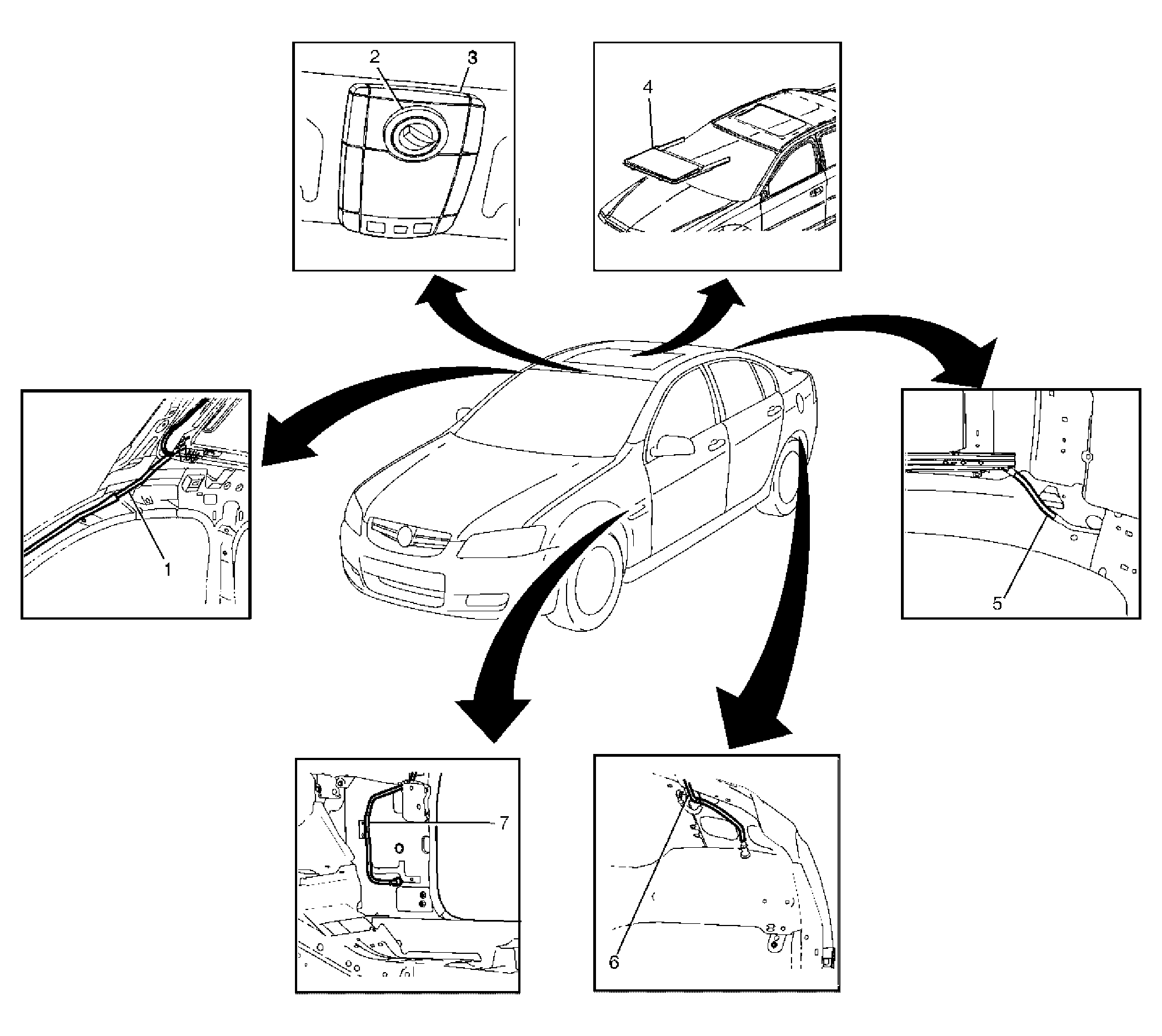

Sunroof Component Views
WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Housing Front Drain Hose (Upper) |
| 2 |
Sunroof Control Switch |
| 3 |
Overhead Console |
| 4 |
Sunroof Module |
| 5 |
Sunroof Housing Rear Drain Hose (Upper) |
| 6 |
Sunroof Housing Rear Drain Hose (Lower) |
| 7 |
Sunroof Housing Front Drain Hose (Lower) |
