Section 483 (Power Door Lock System And Release Systems)
›
Wiring Schematics
›
Door Control Module Wiring Schematics
›
DDM
Door Control Module Wiring Schematics: DDM
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

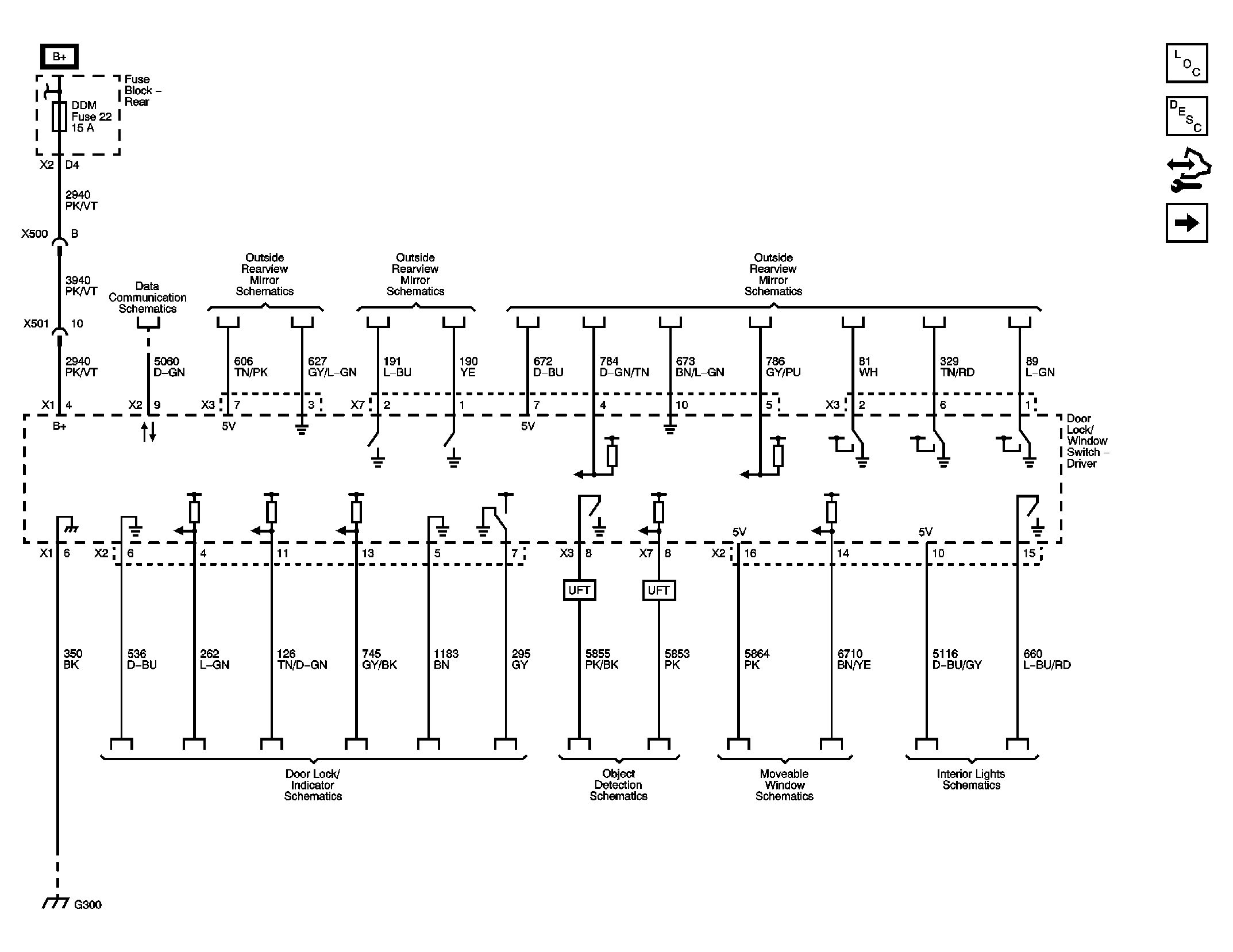

Fig 1: DDM Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
