Section 483 (Power Door Lock System And Release Systems)
›
Wiring Schematics
›
Door Control Module Wiring Schematics
›
PDM
Door Control Module Wiring Schematics: PDM
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

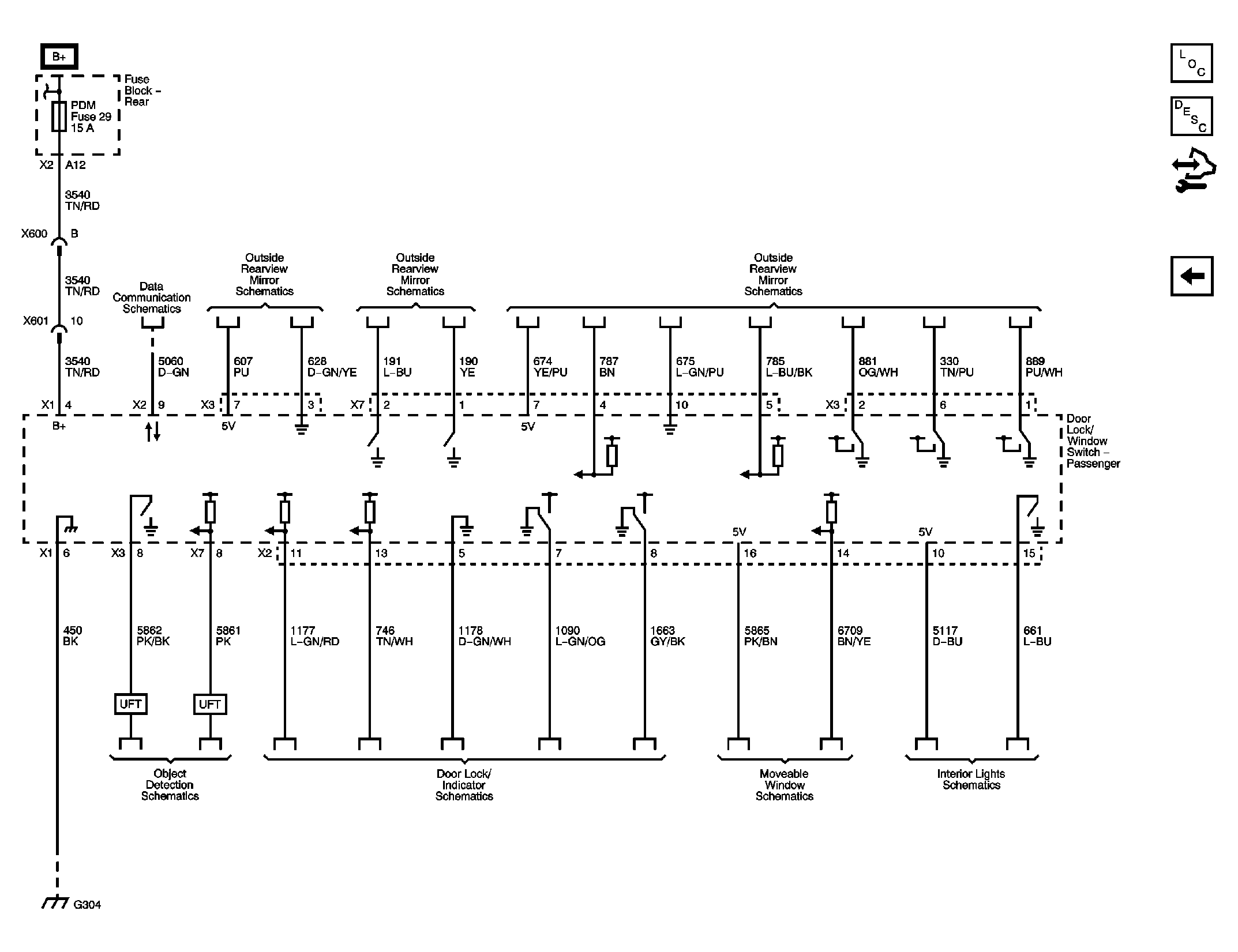

Fig 1: PDM Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
