Section 485 (Object Detection System - Park Assist System)
›
Wiring Schematics
›
Object Detection Wiring Schematics
›
Side Object Detection (UFT)
Side Object Detection (UFT)
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

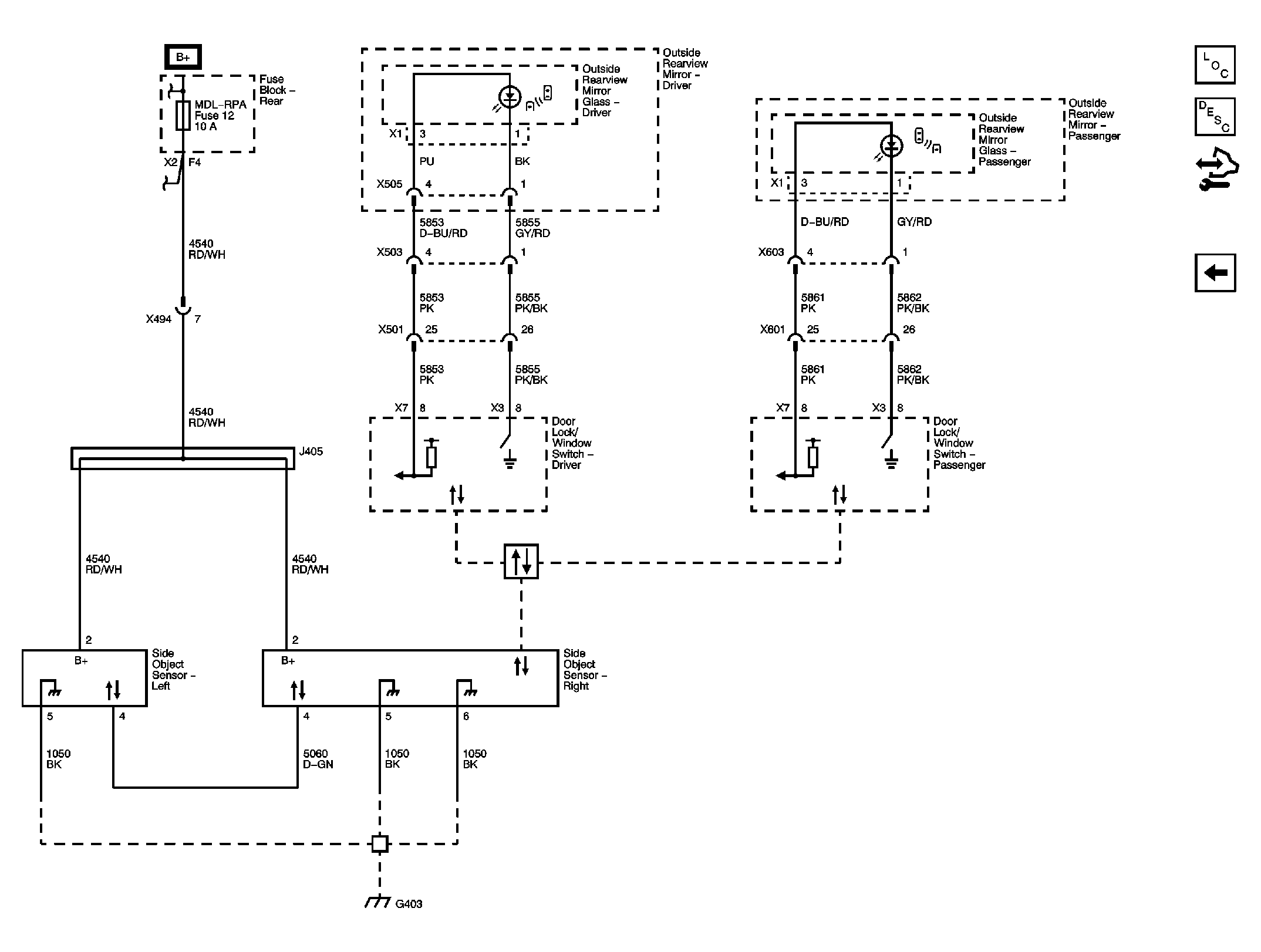

Fig 1: Side Object Detection (UFT) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
